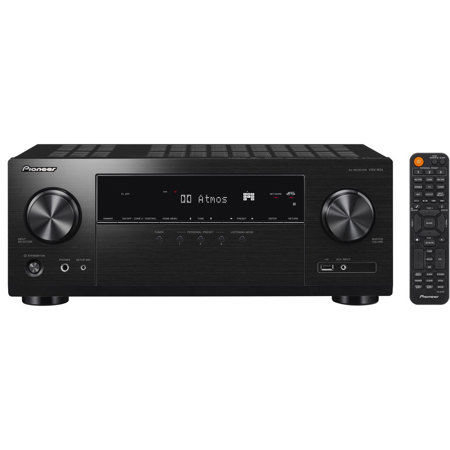

Pioneer Home Audio VSX-934 7.2-Channel Network A/V Receiver, 80W Per Channel at 8 Ohms

SKU: PIVSX934

This item is no longer available.

Recommended Alternatives

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Pioneer Home Audio A/V Receiver Specifications

Power
  • Amplifier Design

    Direct Energy

  • Channels

    7.2

  • Power Output: Watts per Channel

    80 W/ch (20Hz-20kHz,.08%THDat 8ohm 2ch Driven)
    165 W/ch (1kHz,10%THDat 6ohm 1ch Driven)

  • Power Consumption/Network Standby off

    460 W/0.1 W

Handheld and Internet

Jump to...
  • AirPlay

    Apple AirPlay 2 (Available with future firmware update)

  • Streaming Audio From PC/Network

    Yes

  • Internet Radio

    Yes

Decoders & Formats

Jump to...
  • Digital Core DSP Engine

    Digital Quad-Core 32-bit DSP (Cirrus Logic)

  • Audio DACs

    384 kHz/32-bit D/A Conversion with AK4458 (AKM)

  • Music File Playback

    192 kHz/24-bit ALAC, AIFF, FLAC, WAV Via USB

  • High-Definition Copy Protection (HDCP)

    2.2

  • Dolby Atmos

    Yes

  • Dolby TrueHD

    Yes

  • Dolby Digital Plus

    Yes

  • DTS:X

    Yes

  • DTS-HD Master Audio

    Yes

  • DTS Neural:X

    Yes

  • HDMI SACD Transfer

    2 Channel

Soundfield Calibration

Jump to...
  • Phase Control

    Yes

  • MCACC

    Yes

  • MCACC Memory

    1

  • EQ Bands

    9-Band

  • Symmetric EQ

    Yes

  • Distance Adjustment

    0.1' (0.03m)

  • Auto Subwoofer Crossover

    Yes

Listening Modes

Jump to...
  • Auto Surround

    Yes

  • Stream Direct

    Yes (Direct, Pure Direct)

  • Advanced Surround

    10+1

  • Front Stage Surround Advance

    Yes

Audio Functions

Jump to...
  • Dialog Enhancement

    Yes

  • Advanced Sound Retriever

    Yes (2ch)

  • Tone Control

    Multi

  • Sound Delay (Lip Sync)

    Yes

  • Bi-Amp

    Yes

Video Processing

Jump to...
  • 4K Ultra HD Pass-Through

    Yes (HDR10, HLG and BT.2020 Wide Color Gamut Signal Pass-through)

  • 4K Ultra HD Video Scaler

    Ultra HD Upscaling

  • 3-D Ready

    Yes

  • Audio Return Channel

    Yes

  • HDMI Standby Through

    Yes with Input Switch / Last Memory

  • HDMI 36-bit Deep Color

    Yes

  • HDMI x.v. Color

    Yes

  • Video Converter to HDMI

    Yes

  • Super Resolution

    Yes

Connectivity

Jump to...
  • HDMI Input / Output

    6 In (Rear) / 2 Out

  • Bluetooth Built-In

    Yes (Version: 4.2 + LE, Profile: A2DP 1.2/AVRCP 1.3, Codec: SBC/AAC)

  • Wi-Fi Built-In

    Dual Band (5 GHz/2.4 GHz) Wi-Fi Built-in

  • USB Terminal

    Front and Rear

  • Analog Audio Inputs / Output

    2 in / 0 out

  • Digital Audio Inputs / Output

    2 In (Optical 1, Coaxial 1)

  • Pre-Amp Output

    0.2 ch.

  • Headphone Output

    Yes

  • Front A/V Inputs

    USB / 3.5mm stereo mini jack

  • AM/FM Presets

    AM/FM Tuner 40 Presets

Installation

Jump to...
  • On-Screen Display

    User-Friendly GUI with System Setup Menu

  • Auto Power Down

    Yes

  • Multi-Room and Source Output

    Powered Zone 2 with Dedicated DAC

  • FL Dimmer

    Yes

  • Remote

    Yes

  • Sleep Timer

    Yes

  • Versatile Speaker Configuration

    Speaker 9ch Out (Front, Center, Surround, Surround Back/Height/Bi-Amp, Zone 2)

Construction

Jump to...
  • Front Panel

    Brushed

  • Speaker Terminals

    9 large

General

Jump to...
  • Dimensions (WxHxD)

    17.13 x 6.81 x 14.56" (435.10 x 172.97 x 369.82mm)

  • Weight

    20.7 lbs (9.39kg)

About Pioneer Home Audio A/V Receiver

Immerse in 3D surround sound of Dolby Atmos or DTS:X or you can still enjoy similar effects by Dolby Atmos Height Virtualizer and DTS Virtual:X even without height or surround speakers. Featuring Ultra HD, HDR10, HLG and Dolby Vision pass through with support for HDCP 2.2., the VSX-934 offers evermore life-like images. You can stream songs from various sources via Wi-Fi, Bluetooth, DTS Play-Fi, SONOS system and Apple AirPlay 2. Other highlights include Powered Zone 2 feature with a dedicated DAC, Personal Preset buttons and 2 HDMI outputs.

• Dolby Atmos/Dolby Surround Upmixing/Dolby Atmos Height Virtualizer
• DTS:X/DTS Neural:X Upmixing/DTS Virtual:X
• Apple AirPlay 2 / Works with SONOS
• Powered Zone 2 with Dedicated DAC
• 165 W/ch (6 ohms, 1 kHz, THD 10 %, 1ch Driven)
• 80 W/ch (8 ohms, 20 Hz-20 kHz, THD 0.08 %, 2ch Driven, FTC)

Dolby Atmos/Dolby Surround Upmixing
The VSX-934 is compatible with 5.2.2ch configuration of the latest theater sound platform, Dolby Atmos. You can reproduce object-oriented sound in smooth, curving movements or the realistic three-dimensional movement overhead by the top speakers. Other audio codecs such as PCM and DSD can be upmixed using Dolby Surround for enjoying 3D surround sound.

DTS:X/DTS Neural:X Upmixing
DTS:X is the next-generation audio codec from DTS that leverages object-based audio to enable new immersive and interactive audio experiences. Since DTS:X can automatically adapt the audio to the existing channels and speaker system, no specific speaker layout is required. Experience an immersive soundscape with incredibly rich and life-like audio. Other audio codecs such as PCM and DSD can be upmixed using DTS Neural:X for enjoying 3D surround sound.

Dolby Atmos Height Virtualization
When playing any Dolby format, engaging the Dolby Atmos Height Virtualizer enables a more immersive listening experience, creating a virtual surround and height effect from traditional speaker layouts without employing additional surround or height speakers.

DTS Virtual:X
With DTS Virtual:X, you can enjoy a three-dimensional immersive sound similar to DTS:X, without the need of height or rear speakers. The technology supports 2 to 7.1.4-channel input source, for delivery on 2 to 5.1 or even 7.1-channel speaker layout. DTS Virtual:X works with all DTS codecs, including DTS:X.

Personal Preset
Just press the Personal Preset button on the front panel for three seconds and your current settings such as volume level and listening mode can be saved. Up to three presets can be registered and easily called up from the front panel button or the remote control.

Dialog Enhancement
With this unique mid-range sound control feature, you can make independent volume adjustments to the range including dialogs in films, with the up/down key on the remote control.

Next Generation Video Standard Ready
The VSX-934 supports pass-through for HDR10, HLG (Hybrid Log-Gamma) and Dolby Vision signals. By connecting a compatible source device, you can enjoy these latest video standards on a compatible display. What's more, all HDMI terminals support 4K (60p/4:4:4/24-bit), Wide Color Gamut (BT.2020) and HDCP 2.2, so you will have no problem when upgrading to new devices and can also enjoy premium content such as 4K videos with digital copy protection.

MCACC Auto Room Tuning
Create the optimum acoustic environment with Pioneer's MCACC (Multi-Channel Acoustic Calibration System), developed with the expertise of professional recording studios. With the custom microphone, the system automatically compensates for differences in speaker size, level and distance and equalizes response.

Works with SONOS
By connecting the VSX-934 to Sonos Connect, you can play any music or audio source on your Sonos app. You can group the VSX-934 with other Sonos devices on the network or use it independently. The AV receiver will automatically turn on and switch input as soon as you play music on your Sonos app.

Powered Zone 2 with Dedicated DAC
With the powered feature, the VSX-934 can directly drive speakers in another room, without the need for a separate amplifier. What's more, the dedicated DAC for Zone 2 lets you listen to all digital audio sources.

Zone B Output for Wireless Headphones
The VSX-934 is equipped with Zone B audio output terminals for expanding the Main Zone sound by connecting your wireless headphone dock. You can listen to the sound playing in the living room via wireless headphones.

Built-in Bluetooth Wireless Technology
Stream songs from compatible devices with the built-in Bluetooth Wireless Technology (ver. 4.2 + LE). The VSX- 934 features A2DP/AVRCP profiles, with support for SBC/ AAC codecs. With Wake on Play function, the AV receiver automatically wakes up and switches input when a Bluetooth source starts playing.

Apple AirPlay 2
Apple AirPlay 2 lets you effortlessly stream music or podcasts to speakers throughout your house using any Apple device or by asking Siri and it all stays in perfect sync.

What's in the box:

  • Pioneer VSX-934 7.2-Channel Network A/V Receiver
  • RC-974R Remote Controller
  • 2x AAA/R03 Batteries
  • Speaker Setup Microphone
  • Indoor FM Antenna
  • AM Loop Antenna
  • Quick Start Guide
  • Pioneer 1 Year Parts & Labor Warranty
