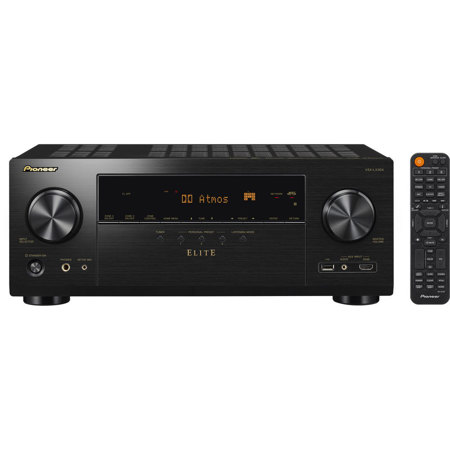

Pioneer Home Audio VSX-LX304 9.2-Channel Network Elite AV Receiver

Designed for optimum IMAX Enhanced and Dolby Atmos/DTS:X movie playback in a seamless 7.2.2ch/5.2.4ch surround sound calibrated by Advanced MCACC, along with support for next-generation video standards, the VSX-LX304 brings multi-dimensional excitement to your home entertainment. Dolby Atmos Height Virtualizer can provide virtual sound effects without using height or surround speakers. Enjoy multi-room audio streaming with SONOS system, FlareConnect, Chromecast built-in, DTS Play-Fi, and Apple AirPlay 2.

IMAX Enhanced
The VSX-LX304 is IMAX Enhanced, certified to deliver the powerful sound just as intended by the filmmaker, and provide the immersive experience on your home theater.

Dolby Atmos/Dolby Surround Upmixing
The VSX-LX304 is compatible with 7.2.2ch/ 5.2.4ch configuration of the latest theater sound platform, Dolby Atmos. You can reproduce object-oriented sound in smooth, curving movements, or the realistic three-dimensional movement overhead by the top speakers. Other audio codecs such as PCM and DSD can be upmixed using Dolby Surround for enjoying 3D surround sound.

DTS:X/DTS Neural:X Upmixing
DTS:X is the next-generation audio codec from DTS that leverages object-based audio to enable new immersive and interactive audio experiences. Enjoy a seamless soundscape with 7.2.2ch/5.2.4ch surround system offering maximum excitement. Other audio codecs such as PCM and DSD can be upmixed using DTS Neural:X for enjoying 3D surround sound.

Dolby Atmos Height Virtualization
When playing any Dolby format, engaging the Dolby Atmos Height Virtualizer enables a more immersive listening experience, creating a virtual surround and height effect from traditional speaker layouts without employing additional surround or height speakers.

Apple AirPlay
Apple AirPlay 2 lets you effortlessly stream music or podcasts to speakers throughout your house using any Apple device or by asking Siri, and it all stays in perfect sync.

Next Generation Video Standard Ready
The VSX-LX304 supports pass-through for HDR10, HLG (Hybrid Log-Gamma), and Dolby Vision signals. By connecting a compatible source device, you can enjoy these latest video standards on a compatible display. What's more, all HDMI terminals support 4K (60p/4:4:4/24-bit), Wide Color Gamut (BT.2020), and HDCP 2.2, so you will have no problem when upgrading to new devices, and can also enjoy premium content such as 4K videos with digital copy protection.

Advanced MCACC Auto Room Tuning featuring Auto Phase Control Plus
Advanced MCACC adjusts the sound according to the listening room and speakers, and also creates clearer sound by suppressing the standing waves that occur between walls or ceiling and floor. Measurement of up to nine positions can be saved for a wide listening area. Auto Phase Control Plus makes real-time analysis of the phase difference, and automatically compensates the gap between the LFE and main signals, providing strong bass and clear high-frequency sound.

Works with SONOS
connecting the VSX-LX304 to Sonos Connect, you can play any music or audio source on your Sonos app. You can group the VSX-LX304 with other Sonos devices on the network, or use it independently. The AV receiver will automatically turn on and switch input as soon as you play music on your Sonos app.

Powered Zone 2 with Dedicated DAC
With the powered feature, the VSX-LX304 can directly drive speakers in another room, without the need for a separate amplifier. What's more, the dedicated DAC for Zone 2 lets you listen to all digital audio sources.

Zone B Output for Wireless Headphones
The VSX-LX304 is equipped with Zone B audio output terminals for expanding the Main Zone sound. You can listen to the sound playing in the living room via wireless headphones.

Chromecast built-in
The VSX-LX304 comes with Chromecast built-in, so you can use your mobile device to stream your favorite music, radio, or podcasts to your speaker. You can control the audio from anywhere in the house using Chromecastenabled apps running on your personal device-iPhone, iPad, Android phone and tablet, Mac and Windows laptop, and Chromebook. The VSX-LX304 also works with the Google Assistant, so you can tell it to turn up the volume, skip tracks, or stop the music using your Google Assistant enabled device, like Google Home.

Audio Features
• IMAX Enhanced
• Dolby Atmos, Dolby Surround Upmixer supports DTS Formats
• DTS:X, DTS Neural:X Upmixer supports Dolby Formats
• Reflex Optimizer
• Dolby Atmos Height Virtualizer
• Dolby TrueHD, Dolby Digital Plus
• DTS-HD Master Audio, DTS-HD High Resolution Audio, DTS 96/24, DTS-ES, DTS Express
• DSD Disc (SACD) Playback via HDMI (2.8 MHz/2ch, 5.1ch)
• Digital Quad-Core 32-bit DSP (Cirrus Logic)+ Aureus floating-point DSP (TI)
• 384 kHz/32-bit D/A Conversion with AK4458 (AKM) & PCM5101A (TI)
• Audio Return Channel (ARC) on HDMI
• MCACC Auto Room Tuning - Auto Phase Control Plus, Subwoofer EQ, Multi-point Standing Wave Control
• Advanced Sound Retriever (2ch)
• Advanced Surround Modes - Classical, Unplugged, Entertainment Show, Drama, Advanced Game, Action, Rock/Pop, Sports, Extended Stereo, Extended Mono, Front Stage Surround Advance

Video Features
• Ultra HD Pass-through with HDCP 2.2 (4K/60p/4:4:4/24-bit, 4K/24p/4:4:4/36-bit, 4K/60p/4:2:0/36-bit)
• HDR10, HLG and BT.2020 Wide Color Gamut Signal Pass-through
• Dolby Vision Compatible
• Ultra HD Upscaling (1080p to 4K)
• 3D Ready (Blu-ray Disc, Broadcast, and Games)
• Deep Color (36-bit), "x.v. Color"

Home Network Features
• FlareConnect for Multi-room Audio
• Chromecast built-in and Works with the Google Assistant
• DTS Play-Fi with Pioneer Music Control App
• Apple AirPlay 2
• Works with SONOS
• Amazon Music, Pandora, Spotify Freemium, Spotify Premium, TIDAL, and Deezer Music-Streaming Services Ready
• Internet Radio with TuneIn
• Hi-Res Audio File Playback via USB/Network - Up to 192 kHz/24-bit ALAC, AIFF, FLAC, WAV (RIFF) and 11.2 MHz DSD

Convenience Features
• Personal Preset
• Dialog Enhancement
• Dual Band (5 GHz/2.4 GHz) Wi-Fi Built-in
• Bluetooth Wireless Technology (Version: 4.2 + LE, Profile: A2DP 1.2/AVRCP 1.3, Codec: SBC/AAC) Built-in
• Pioneer Remote App Ready for Multi-room Entertainment Control and Network Streaming
• User-Friendly GUI with System Setup Menu
• On-Screen Information for Audio/Video Status
• Auto Power Off in HDMI Standby Through
• AM/FM Tuner 40 Presets
• Sleep Timer
• User-Friendly Simple Remote Control

Front Terminals
• HDMI 1 In
• USB 1 In for USB Drive
• MCACC Setup MIC In (Gold-Plated)
• Audio 1 In (Mini Stereo Jack, Gold-Plated)
• Phones 1 Out (Gold-Plated)

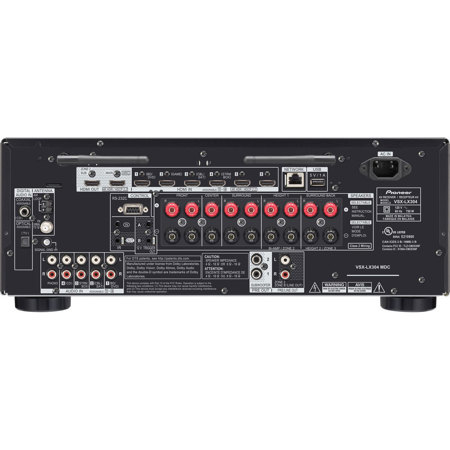

Rear Terminals
• HDMI 6 In (4 Assignable)
• HDMI 2 Out (1 for MAIN, 1 for SUB)
• Ethernet 1 In
• USB 1 In for USB Drive
• Audio 4 In (Assignable)
• Phono (MM) 1 In
• Digital Coaxial 1 In (Assignable)
• Digital Optical 1 In (Assignable)
• Subwoofer 2 Pre Out
• ZONE B Line Out for Wireless Headphones
• ZONE 2 Pre/Line Out
• Speaker 9ch Out (FRONT, CENTER, SURROUND, SURROUND BACK/HEIGHT/Bi-AMP, ZONE 2)
• IR 1 In/1 Out
• 12 V Trigger 1 Out
• RS-232C
• FM/AM Antenna
