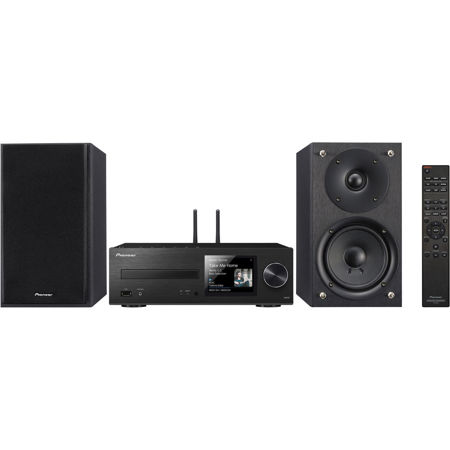

Pioneer Electronics X-HM76 2-Channel 40W Network Wireless All-In-One Mini Stereo System with Built-In CD Player and AM/FM Tuner, WiFi & Bluetooth

SKU: PIXHM76

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Pioneer Electronics X-HM76 Specifications

Analog Audio Output

Analog Audio Output

Jump to...
  • Power Rating

    20W per channel (1 kHz, 0.02% THD, 4 Ohms FTC)

  • RMS Output Power

    50W + 50W (4Ohms, 1 kHz THD 10%)

  • Tone Control Characteristics

    +/-10 dB (100 Hz (BASS))
    +/-10 dB (10 kHz (TREBLE))

  • Supported Speaker Impedance

    4Ohms - 16Ohms

  • Tuning Frequency Range (FM)

    87.5 MHz - 107.9 MHz

  • Tuning Frequency Range (AM)

    530 kHz - 1710 kHz

  • Antenna (FM)

    75Ohms unbalanced

  • Antenna (AM)

    Loop antenna (balanced)

  • Preset Channel

    40 (AM+FM)

  • Media/Format

    CD : Standard CD
    CD-R/RW : CD format/MP3, WMA File

Digital Audio Input

Jump to...
  • Front/Rear USB

    Type A, USB2.0 High Speed

  • DC Output

    5V 1A (Rear)/5 V 0.5 A (Front)

  • Optical Digital Input

    Optical Jack

Network

Jump to...
  • Wired LAN

    Ethernet Jack
    10BASE-T/100BASE-TX

  • Wireless LAN (Wi-Fi)

    IEEE 802.11 a/b/g/n standard
    5 GHz/2.4 GHz band

Bluetooth

Jump to...
  • Communication System

    Bluetooth Version 4.1

  • Frequency Band

    2.4 GHz (2.402 GHz - 2.480 GHz)

  • Modulation Method

    FHSS (Frequency Hopping Spread Spectrum)

  • Compatible Bluetooth Profiles

    A2DP 1.2
    AVRCP 1.3
    HOGP-Host (Client)
    HOGP-HID Device (Server)
    HID Service (HIDS)

  • Supported Codecs

    SBC
    AAC

  • Transmission Range (A2DP)

    20 Hz - 20 kHz (Sampling frequency 44.1 kHz)

  • Maximum Communication Range

    10m (32.81') (Line of sight approx.)

Speaker

Jump to...
  • Type

    Bass-reflex bookshelf type

  • Configuration

    2-way
    Woofer: 12cm (4.72") Cone
    Tweeter: 2.5cm (0.98") Soft Dome

  • Impedance

    4Ohms

  • Maximum Input Power

    50W

  • Effective Frequency Range

    70 Hz - 40 kHz

  • Recommended Frequency Range

    50 Hz - 40 kHz

  • Crossover Frequency

    4 kHz

  • Output Sound Pressure Level

    83 dB

General

Jump to...
  • Power Supply

    AC 120 V, 60 Hz

  • Power Consumption

    40W

  • Power Consumption During Standby

    0.3W (In Standby)
    2.5W (In Standby, Network Standby: On, Network Setting: Wired)
    2.8W (In Standby, Network Standby: On, Network Setting: Wi-Fi)
    2.2W (In Standby, Bluetooth Wakeup: On)
    2.9W (In Standby, Network Standby: On, Network Setting: Wi-Fi, Bluetooth Wakeup: On)

  • Auto Standby

    On (20 min)/Off

  • Dimensions (WxHxD)

    Main Unit: 290 x 98 x 333mm (11.42 x 3.86 x 13.11")
    Speaker (Each): 148 x 263 x 213mm (5.83 x 10.35 x 8.39")

  • Weight

    Main Unit: 3.5kg (7.72 lbs)
    Speaker (Each): 3.3kg (7.28 lbs)

  • UPC Code

    889951000556

About Pioneer Electronics X-HM76

This comprehensive mini system option includes hi-res audio playback and Spotify at the ready. An all-in-one audio system, featuring Hi-Res Audio playback including up to 11.2 MHz DSD, internet radio, Spotify and other music streaming services, built-in Bluetooth Wireless Technology, Wi-Fi and AirPlay. The 3.5" color LCD provides a user-friendly GUI, includes song information and album artwork.

Streaming Services & Internet Radio
Enjoy listening to your music with streaming services such as Pandora, Spotify, TIDAL and DEZZER. The system has built-in TuneIn for accessing 1,000's of free internet radio broadcasts of music, sports, news and talk shows from around the world.

Connect with Chromecast built-in, AirPlay and Wi-Fi
You can also stream songs from your music library with AirPlay or enjoy network features via dual band (5 GHz/2.4 GHz) Wi-Fi. With built-in Chromecast built-in, you can use your mobile device to cast your favorite music, radio or podcasts to your speaker. You can control the audio from anywhere in the house using Cast enabled apps.

Plug and Play External HDD
Connect an external HDD via USB and you can easily listen to your whole music library without using your PC.

Hi-Res Audio File Playback via USB/ Network
This network mini stereo system allows you to play up to 11.2 MHz DSD (Direct Stream Digital) files and up to 192 kHz/24-bit WAV, FLAC and AIFF from a USB device or via wired network.

3.5" LCD Display
The X-HM76 features a 3.5" LCD display with a user-friendly GUI. You'll have access to view the song file format, sampling rate, bit rate, elapsed time and album artwork. It also becomes an operational display for setting up and controlling functions, without having to use a PC or mobile device.

Multi-room Audio Offers a Variety of Ways to Enjoy Music
FlareConnect shares audio from network and external audio input sources between compatible components. Enjoy effortless multi-room playback of LP records, CDs, network music services and more with supported components and speaker systems. Music selection, speaker grouping and playback management across the home are built into the Pioneer Remote App.

Intuitive Control with New Pioneer Remote App (iOS/Android)
From the palm of your hand, the free Pioneer Remote app, allows you to simply use your iPad/iPhone/iPod touch or Android smartphone for operating the network mini stereo system or play back tunes stored on your device. You can also select internet radio stations and play songs from your media server.

Quality Speakers
With large 120 mm woofers and 25 mm soft dome tweeters, the included speakers deliver dynamic bass and clear high-frequencies, delivering high-quality sound for Hi-Res Audio and other sources.

Pioneer Electronics X-HM76 Features

  • USB Front/USB Rear/CD/Bluetooth/Network/Spotify/Digital In/Line/FM/AM
  • Built-in Wi-Fi and Bluetooth
  • Class D Amplifier (Digital Amplifier)
  • Audio Playback from HDD Devices via USB
  • FM/AM Tuner (40 Presets)
  • Sound Control (Bass/Treble)
  • Bass Enhancer (P.BASS)
  • CD-Audio, CD-R/-RW (MP3/WMA)
  • Music File Playback via Network/USB (DSD/WAV/FLAC/AIFF/Apple Lossless/MP3/WMA/AAC): Up to 192 kHz/24-bit Audio Playback (WAV/FLAC/AIFF) via USB/Wired Network; Up to 11.2 MHz DSD Playback via USB/Wired Network
  • FlareConnect for Multi-room Audio
  • Chromecast built-in
  • DTS Play-Fi
  • Apple AirPlay Certified
  • Pandora
  • Spotify, Tidal and Deezer Music Streaming Services Ready
  • Internet Radio (TuneIn)
  • 3.5" Color LCD Display with Support for 9 Languages: English/French/German/Dutch/Italian/Spanish/Russian/Swedish/Chinese
  • Works with Pioneer Remote App (iOS/Android)
  • Wireless Multi-room Audio
  • Bluetooth Auto Reconnect
  • Bluetooth Wakeup
  • Auto Standby
  • Clock & Program Timer x2 (Daily/Once Timer)
  • Terminals: USB x2 (Front/Rear); Phones Output (Front, 3.5 mm Mini Jack); Speaker Terminal; Optical Digital Input; Line Input (RCA, Pair); Subwoofer Pre-out; Ethernet; FM/AM Tuner Antenna; Dual Band (5 GHz/2.4 GHz) Wi-Fi Antenna

What's in the box:

  • Pioneer Electronics Main Unit
  • 2x Speaker System
  • Remote Control
  • 2x AAA Batteries
  • Indoor AM Antenna
  • Indoor FM Antenna
  • Pioneer Electronics 1 Year Parts and Labor Limited Warranty
