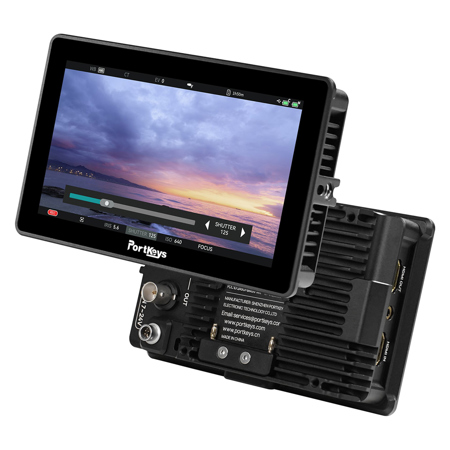

Portkeys BM5IV 5.5" Full HD HDMI Touchscreen Monitor with Wired Camera Control

SKU: PKBM5IV MFR: BM5 IV
Earn VIP Reward Points

Key Features

  • Experience superior clarity with the Portkeys BM5IV's Full HD 1920x1080 resolution display.
  • Achieve perfect focus with peaking, zoom, and various aspect ratio frame guides on this monitor.
  • Control your camera settings directly from the 5.5" touchscreen for efficient on-set adjustments.
  • Enjoy a bright and clear view, even outdoors, thanks to the 2000nits high brightness monitor.
  • Use HDMI/SDI conversion for flexible connectivity with a wide range of cameras and equipment.
  • Lightweight aluminum alloy build at just 12.34 oz, making it an ideal on-camera video monitor.
See More Product Details
FREE 2-Day Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$59.99

3 Year

$79.99

4 Year

$109.00

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Portkeys BM5IV Specifications

  • Screen size

    5.5" (13.97cm)

  • Material

    Aluminum alloy

  • Brightness

    2000nits

  • Color depth

    10bit (8+2FRC)

  • Audio output

    3.5mm Headphone jack

  • Camera control interface

    Remote

  • Signal output

    3G SDI,HDMI

  • Signal input

    3G SDI,HDMI

  • Operating system

    CINENORM OS

  • Input voltage

    7-24V

  • Resolution

    1920x1080 (Full HD)

  • Viewing angle

    178 Degree /178 Degree V

  • Support battery model

    NP-F970/F960/F750/F550

  • Power input

    4-pin aviation connector

  • TILTA nucleus control interface

    UART

  • Signal conversion

    HDMI/SDI Conversion

  • USB-A

    Upgrade firmware / Load LUT

  • Maximum power

    16W

  • Contrast ratio

    1000:1

  • Fan

    Yes

  • Supported Input/output

    Resolution and Frame Rate:
    4K HDMI input/output signal: 4096x2160p@23.97Hz,24Hz, 25Hz, 29.97Hz, 30Hz, 50Hz, 59.94Hz,60Hz 3840x2160p@23.97Hz,24Hz,25Hz, 29.97Hz,30Hz, 50Hz, 59.94Hz,60Hz
    HDMI input/output signal: 1920x1080p@23.97Hz,24Hz,25Hz, 29.97Hz,30Hz, 50Hz, 59.94Hz,60Hz 1920x1080psf@23.97Hz,24Hz, 25Hz, 29.97Hz,30Hz 1920x1080i@50Hz,59.94Hz,60Hz 1280x720p@50Hz,59.94Hz,60Hz 720x576p&720x576i@50Hz 720x480p&720x480i@50Hz,59.94Hz,60Hz

  • Supported Input/output (Contd.)

    Resolution and Frame Rate:
    SDI input/output signal: 1920x1080p@50fps,59.94fps,60fps 1920x1080p@50Hz,59.94Hz, 60Hz YUV422 1920x1080p@23.98Hz, 24Hz, 25Hz, 29.94Hz,30Hz YUV444/YUV422 1920x1080psf@23.98Hz,24Hz, 25Hz, 29.97Hz, 30Hz YUV444/YUV422 1920x1080i@50Hz,59.94Hz,60Hz YUV444/YUV422 1280x720p@50Hz,59.94Hz, 60Hz YUV444/YUV422

  • Battery Info

    Optional, Not Included

  • Battery Material

    Lithium Ion

  • Battery Type

    NP-F

  • Battery Quantity

    1

  • Dimensions (L x W x H)

    5.72 x 3.59 x 1.55" (145.4 x 91.4 x 39.6mm)

  • Weight

    12.34 oz (350g)

  • UPC Code

    9331924264669

About Portkeys BM5IV

For filmmakers and videographers seeking a versatile and high-performance on-camera monitor, the Portkeys BM5IV 5.5" Full HD HDMI Touchscreen Monitor with Wired Camera Control is an exceptional choice. This lightweight yet rugged monitor boasts a 5.5-inch wide color gamut display, delivering an impressive 2,000 nits of brightness for clear visibility even in bright outdoor environments. Equipped with both HDMI and SDI video input and output ports, it offers seamless connectivity and flexibility for various shooting scenarios.

The Portkeys BM5IV features a high brightness screen with three-color gamut calibration, supporting 100% REC.709, 85% P3-DCI, and 85% P3-D65 color gamuts. This ensures accurate color reproduction, making it ideal for professional video production. Users can manually select the Log mode and store custom monitor settings on a USB drive, allowing for easy import and export between devices of the same model. Additionally, the monitor supports user calibration, enabling the import of two sets of custom color calibration files for personalized color accuracy.

Enhancing its functionality, the BM5IV offers dual-screen monitoring capabilities, including single signal horizontal to vertical crop, dual signals picture-in-picture, and various dual signal orientations such as left vertical/right vertical and left horizontal/right vertical. This flexibility allows users to tailor their monitoring setup to their specific needs.

The monitor introduces a brand-new camera control experience with support for seven custom pages, each offering unique functions and one-click switching. The camera control page provides detailed model-specific controls, enhancing the user experience. The Log False Color feature offers custom false color with 77 selectable colors and 15 selectable segments, aiding in precise exposure adjustments.

Rich in interfaces, the Portkeys BM5IV includes an added HDMI output interface and supports cross-transmit for HDMI and SDI signal output simulation. The LUT can be output via SDI, providing further customization options. Quick operation is facilitated through physical shortcut keys, allowing users to preset camera control, function, and screen configuration for efficient workflow management.

Overall, the Portkeys BM5IV 5.5" Full HD HDMI Touchscreen Monitor is designed to meet the demands of professional videographers and filmmakers, offering advanced features and exceptional performance in a compact and durable package.

Portkeys BM5IV Features

  • 5.5", 10-bit (8+2 FRC) panel with a resolution of 1920 x 1080 and a 1000:1 contrast ratio
  • Daylight-viewable with a maximum brightness of 2,000nits
  • 1x 4K60P HDMI input, 1x 3G-SDI input, 1x 4K60P HDMI output, 1x 3G-SDI output with cross-conversion
  • Powered by CINENORM OS, which supports up to 7 custom pages
  • Professional monitoring tools: Waveform, Vectorscope, Peaking, ARRI False Color
  • 3D LUT monitoring and 3D LUT SDI output capabilities
  • Split-screen monitoring capabilities with multiple viewing modes, including PBP, PIP, and H2V
  • Factory color-calibrated, and the possibility for users to create a 3D calibration LUT with an X-Rite color probe
  • Wired camera control for RED, Sony, Canon, Panasonic, BMD, and ZCAM E2
  • TILTA Nucleus N/M wireless follow focus wired control
  • Built-in Sony NP-F style battery plate
  • 4-pin and 2-pin LEMO 7.4V-24V power inputs for external power (D-Tap cable included)
  • Lightweight and rugged aluminum housing: only 358g/12.62oz
  • Recording Synchronized Silent Fan
  • Full Aluminum Alloy NC Shell

Warranty Information

This product has a limited warranty of 12 months for parts and 12 months for labor.

Key Features

  • Experience superior clarity with the Portkeys BM5IV's Full HD 1920x1080 resolution display.
  • Achieve perfect focus with peaking, zoom, and various aspect ratio frame guides on this monitor.
  • Control your camera settings directly from the 5.5" touchscreen for efficient on-set adjustments.
  • Enjoy a bright and clear view, even outdoors, thanks to the 2000nits high brightness monitor.
  • Use HDMI/SDI conversion for flexible connectivity with a wide range of cameras and equipment.
  • Lightweight aluminum alloy build at just 12.34 oz, making it an ideal on-camera video monitor.

What's in the box:

  • Portkeys BM5IV 5.5" Full HD HDMI Touchscreen Monitor with Wired Camera Control
  • Micro USB Flash Stick
  • D-Tap to 4-Pin Aviation Connector Power Cable
  • Safety Box
  • User Manual
  • (Battery Not Included)
  • Portkeys 1 Year Limited Warranty
