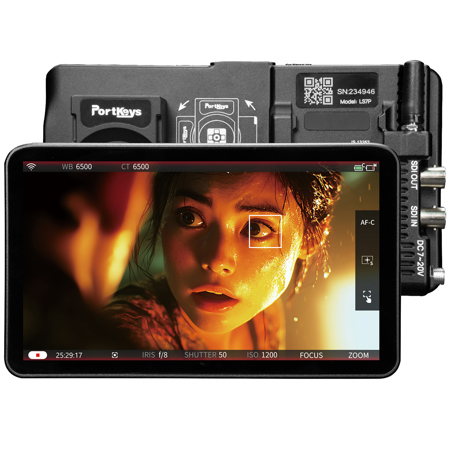

Portkeys LS7P 7" Full HD Touchscreen On-Camera Monitor, Supports 4K HDMI, Black

SKU: PKG157 MFR: G157
Earn VIP Reward Points

Key Features

  • Experience superior clarity with the Portkeys LS7P's vibrant 7" Full HD touchscreen display.
  • Achieve accurate colors with Rec.709 color gamut, perfect for on-camera video monitoring.
  • Enjoy flexible connectivity with 4K HDMI and 3G-SDI inputs/outputs on this video monitor.
  • Utilize the custom 3D LUT support for precise color grading, enhancing your video workflow.
  • Power your monitor with versatile options, including Sony NP-F batteries for on-location shoots.
  • Operate easily with the intuitive MOVNORM OS, offering a suite of monitoring tools and functions.
See More Product Details
New Item?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$34.99

2 Year

$59.99

3 Year

$79.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Portkeys LS7P Specifications

General

General

Jump to...
  • Screen Size

    7" (17.78cm)

  • Color Gamut

    Rec.709

  • Color Depth

    10bit (8+2 FRC)

  • Resolution

    1920 x 1080

  • Viewing Angle

    80/80/80/80

  • Brightness

    1000nits

  • Contrast Ratio

    1000:1

  • Input Voltage

    7-20V

  • Maximum Power

    13W

  • Fan

    Yes

  • Antenna

    2.4G

  • Menu Language

    English / Simplified Chinese / Italian / Japanese / Russian / French / Spanish

  • Operating System

    MOVNORM OS

  • Mounting Points

    Right: 1x 1/4" Screw hole
    Bottom: 1x 1/4" Screw hole
    Top: 1x 1/4" Screw hole

Shortcut Function

Jump to...
  • Shortcut Function

    Peaking
    Zebra
    False Color
    Luma Waveform
    RGB Waveform
    Luma Histogram
    Audio Meters
    Rectangle Crop
    Image Capture
    Image Overlay
    HDR(HLG)
    Check Field
    Guides
    Cross Hair
    Grids
    Anamorphic
    3D LUT
    Vertical Extension
    Camera Recording
    Screen Off
    Brightness
    Contrast
    Chroma
    Sharpness
    Tint
    Color Temperature
    Display Flip
    Black Level
    H Flip
    V Flip
    Gesture Zoom
    Live Mode

Interface

Jump to...
  • Signal Input/Output

    Input Interface: 4K30P HDMI, 3G-SDI
    Output Interface: 1080P60 HDMI, 3G-SDI

  • Power Input/Output

    Input Interface: Screw-lock DC(5.5X2.0)
    Output Interface: NP-F Power 8V/1.5A

  • USB-A (USB 2.0)

    Upgrade Firmware / Load 3D LUT

  • Audio Output

    3.5mm Headphone Jack (3-pole)

  • Support Battery Model

    SONY NP-F970/F960/F750/F550

  • Signal Conversion

    SDI to HDMI Output(1080P60)

  • Wi-Fi Wireless Control

    2.4G

  • Wireless Bluetooth Control

    Bluetooth 4.2

  • HDMI Output Function

    UI Output
    3D LUT
    Luma Histogram
    Rectangle Crop
    Anamorphic
    Image Overlay
    Vertical Extension
    HDR(HLG)

HDMI Signal

Jump to...
  • HDMI Input Signal

    4096 x2160p@23.97Hz,24Hz,25Hz,29.97Hz,30Hz
    1920 x1080p@23.97Hz,24Hz,25Hz, 29.97Hz,30Hz, 50Hz, 59.94Hz, 60Hz
    1920 x1080psf@23.97Hz,24Hz,25Hz,29.97Hz,30Hz
    1920 x1080i@50Hz,59.94Hz,60Hz
    1280 x720p@50Hz,59.94Hz,60Hz
    720x576p&720 x576i@50Hz
    720 x480p&720 x480i@50Hz,59.94Hz,60Hz

  • HDMI Output Signal

    1920 x1080p@60Hz

SDI Signal

Jump to...
  • SDI Input Signal

    1920 x1080p@23.97Hz,24Hz,25Hz, 29.97Hz, 30Hz, 50Hz, 59.94Hz, 60Hz YUV422
    1920x1080psf@23.98Hz,24Hz, 25Hz, 29.97Hz,30Hz YUV444/YUV422
    1920 x1080i@50Hz,59.94Hz, 60Hz YUV444/YUV422
    1280 x720p@50Hz,59.94Hz,60Hz YUV444/YUV422

  • SDI Output Signal

    1920 x1080p@23.97Hz,24Hz,25Hz, 29.97Hz, 30Hz, 50Hz, 59.94Hz,60Hz YUV422
    1920x1080psf@23.98Hz, 24Hz,25Hz, 29.97Hz,30Hz YUV444/YUV422
    1920 x1080i@50Hz,59.94Hz,60Hz YUV444/YUV422
    1280 x720p@50Hz,59.94Hz,60Hz YUV444/YUV422

Battery

Jump to...
  • Battery Info

    Optional, not included

  • Battery Material

    Lithium ion

  • Battery Type

    Non-universal

  • Battery Quantity

    1

Physical

Jump to...
  • Color

    Black

  • Material

    Aluminum Alloy

  • Dimensions

    6.94 x 4.09 x 1.55" (176.2 x 103.8 x 39.3mm)

  • Weight

    14.43 oz (409g)

  • UPC Code

    9344483705580

About Portkeys LS7P

The Portkeys LS7P is a rugged 7-inch on-camera monitor featuring 1,000 nits of brightness, HDMI/SDI video input and output ports, and wireless camera control capabilities.

The Portkeys LS7P is a lightweight and rugged 7-inch on camera monitor with powerful wireless camera control capabilities. This monitor is made entirely of aluminum and designed to support filmmakers during their creative journeys, even in the most challenging shooting environments.

The Portkeys LS7P features a 7-inch touchscreen panel with a resolution of 1920 x 1080. With a maximum brightness of 1,000nits and a contrast ratio of 1000:1, this daylight-viewable monitor is usable in all shooting conditions, whether outdoors under bright sunlight or indoors in a murky studio. Trusting your on-camera monitor's colors and image is essential for making creative decisions on set, which is why the LS7P features a 10-bit (8+2 FRC) panel, and every monitor is factory color-calibrated.

With a weigh of only 409 grams (14.42 ounces) and measuring 176.2 x 103.8 x 39.3 mm (6.93 x 4.08 x 1.54 inches), this monitor is a compact and comfortable choice for camera operators and focus pullers. With a wide viewing angle of 80 Degree from all sides, the display is easy to see, and it comes with two screen protectors to safeguard the touchscreen from accidental damage.

The LS7P features one 4K DCI 30P/1080P60 HDMI input port and one 1080P60 HDMI output port, conveniently located on the bottom left side of the monitor. On the right-hand side of the monitor, you will find 3G-SDI 1080P60 video input and output ports. Additionally, cross-conversion from SDI input to HDMI output is possible, and the monitor supports 3D LUTs for both HDMI and SDI outputs.

At the top of the monitor, you will find four user-assignable buttons that allow you to activate or deactivate your favorite monitor tools quickly. Additionally, there is an on/off switch, a touchscreen lock switch, and a 1/4"-20 mounting point with locating pins. The LS7P also includes two more 1/4"-20 mounting points located on the bottom and right sides, providing filmmakers with multiple options for mounting the monitor. For future firmware updates and loading custom LUTs, a USB-A port is located at the bottom, along with a 3.5mm headphone jack.

The Portkeys LS7P monitor can be powered using a single Sony NP-F battery. With a low power draw of just 13W, a single Sony NP-F970 battery can power the monitor for up to 3.5 hours. Additionally, the monitor features a DC 7-24V power input with a locking DC 5.5x2.1mm barrel connector. This allows you to extend the monitor's usage time by powering it via a V-Mount or Gold Mount battery using the included D-TAP to screw-in DC power cable.

Furthermore, the LS7P features a patented design that includes a built-in Sony NP-F power output dummy battery plate. This rotatable battery plate can be adjusted both horizontally and vertically. It also offers power pass-through capabilities (8V/10W), enabling you to connect and power a wireless video receiver directly at the back of the LS7P. This design allows for a sleek and minimalist setup.

Powered by MOVNORM OS, the Portkeys LS7P includes a full suite of professional monitoring tools which are highly customizable and easy to use, including:

• 3D LUT monitoring with 3D LUT output capabilities. Up to 20 custom LUTs can be loaded via the USB-A port at the bottom of the monitor
• Anamorphic image de-squeeze with 10 standard image ratios, including the popular 1.33x, 1.5x, 1.8x, and 2.0x, as well as the option to enter a custom aspect ratio from 0.25x to 4.0x
• Freeze frame functionality, which allows you to capture a frame on a USB stick and compare it with the live image signal. This freeze frame function can be particularly helpful for stop-motion shoots, for example
• Stretch leg tool: when shooting vertically, you can stretch the bottom part of the image. The stretch leg tool feature can be sent to the HDMI output
• Focus tools, including peaking, custom peaking frame, and zoom functions, ensure all your shots are as crisp as possible
• Image analysis and exposure tools, including RGB and Luma Waveform, Vectorscope, Luma Histogram, Zebra, and customizable False Color with 13 different colors, including ARRI False Color
• Framing tools: crosshair, check field, guides, grids, rectangle crop
• Audio meters
• Monitor adjustments: black level, backlight, contrast, color temperature, sharpness, chroma, brightness, tint, HDR/HLG, and image flip (H/V)

Also, the Portkeys LS7P introduces a new exposure tool called Log Stops. Unlike the traditional False Color tool, the Log Stops feature is based on the camera's actual stop data. This tool is unique to Portkeys monitors and automatically identifies the camera's LOG signal, regardless of the brand or picture profile in use. The LOG signal is then divided into multiple exposure level zones. Each of these exposure levels can be displayed in a customized mode, either as false color or zebra, and users can turn them on or off as needed. At the time of launch, the LOG signal auto-recognition feature only supports Sony cameras, but support for other brands will be added soon through a free firmware update.

As the first company to introduce on-camera monitors with camera control capabilities, Portkeys has built years of experience that users worldwide trust. The LS7P features wireless camera control capabilities, which allow you to control a wide range of cameras from brands such as ARRI, RED, Blackmagic Design, Canon, Sony, and Panasonic. It supports popular models, including the Sony FX3, FX30, and FX6, as well as the Canon EOS C80 and C400, among others. You can adjust settings like aperture, shutter speed, ISO, ND filter and white balance directly on the monitor's screen.

Additionally, the LS7P features Touch Focus capabilities, allowing you to select and move your camera's focus point directly from the touchscreen.

Even though the Portkeys LS7P is a universal on-camera monitor and can be used with all type of cameras, we pushed the integration with select mirrorless and cinema cameras one step further. The Portkeys LS7P simplifies your workflow and autofocus management. Indeed, with a straightforward tap, users can adjust their focus area easily. This makes the LS7P a powerful and efficient tool on set, eliminating the need to touch the camera's built-in screen or buttons to change settings, including autofocus parameters.

The Portkeys LS7P also introduces a unique and versatile feature: the one-to-many control system. This capability enables users to manage and adjust the settings of multiple cameras using just one monitor.

A "master" Portkeys monitor can communicate wirelessly with up to four other compatible Portkeys monitors that have built-in camera control capabilities, all within a range of 50 meters (165 feet). This means you can adjust the settings of all connected cameras, regardless of their brand, from a single location.

In multi-camera shooting environments, this feature enables you to simultaneously adjust settings and focus for multiple cameras without the need for cables. The one-to-many control system is compatible with the Portkeys LS7P, LH7P, LH5PII, BM7IIDS, and BM5IV WR.

The monitor ships with a safety box, a 2.4GHz straight mini antenna, a mini USB stick, screen wipes and two screen protectors, and a D-Tap to locking 5.5mm power cable.

Portkeys LS7P Features

  • 7", 10-bit (8+2 FRC) panel with a resolution of 1920 x 1080 and a 1000:1 contrast ratio
  • Daylight-viewable with a maximum brightness of 1,000nits
  • 1x 4K30P HDMI input, 1x 3G-SDI input, 1x 1080P60 HDMI output, 1x 3G-SDI output, cross-conversion from SDI input to HDMI output is possible
  • Powered by MOVNORM OS
  • Professional monitoring tools: Log Stops, Waveform, Histogram, Zebra, Vectorscope, Peaking, ARRI False Color, Anamorphic image de-squeeze, Audio Meters
  • 3D LUT monitoring and 3D LUT output capabilities
  • Wireless camera control of ARRI, RED, SONY, Nikon, Canon, Panasonic, and Blackmagic Design cameras
  • Touchscreen autofocus (wireless) feature is available for select Sony, Nikon, RED, Canon, Panasonic, and Blackmagic Design cameras, including the Sony FX3/FX6, Sony a7S III/A7C, Canon EOS C80, and EOS C400
  • Built-in Sony NP-F style battery plate
  • DC 7-24V 5.5mm barrel connector power input for external power
  • Built-in Sony NP-F dummy battery plate with power passthrough(8V/10W) to attach and power a wireless video receiver at the back of the LS7P
  • Lightweight and rugged aluminum housing: only 14.42 oz (409g)

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Experience superior clarity with the Portkeys LS7P's vibrant 7" Full HD touchscreen display.
  • Achieve accurate colors with Rec.709 color gamut, perfect for on-camera video monitoring.
  • Enjoy flexible connectivity with 4K HDMI and 3G-SDI inputs/outputs on this video monitor.
  • Utilize the custom 3D LUT support for precise color grading, enhancing your video workflow.
  • Power your monitor with versatile options, including Sony NP-F batteries for on-location shoots.
  • Operate easily with the intuitive MOVNORM OS, offering a suite of monitoring tools and functions.

What's in the box:

  • Portkeys LS7P 7" Full HD Touchscreen On-Camera Monitor (Black)
  • Safety Box
  • 2.4G Straight Mini Antenna
  • Mini USB Stick
  • D-TAP to Screw DC Power Cable
  • Screen Wipes
  • Screen Protector
  • Portkeys 1 Year Limited Warranty
