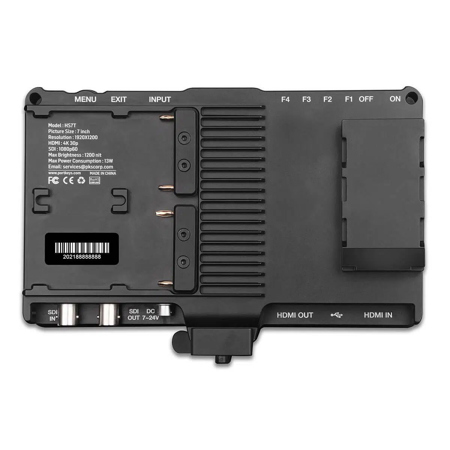

Portkeys HS7T II 7" Full HD High-Bright Monitor with Metal Housing, Supports 4K HDMI/SDI

The HS7T Metal Edition combines a large 7-inch HDR screen with 1200nit calibrated peak brightness. The HS7T Metal Edition can be used in strong light environments to monitor signals up to 4K 30p via HDMI or SDI. Ideal director monitor, focus monitor, video switcher preview display, very suitable for video bloggers showing to the camera.

Daylight Viewable
7" on-camera monitor with 1200 cd/sq. m brightness and 1900:1 contrast ratio

Durable Housing
• Rugged, heat-dissipating metal housing
• NATO rail and 1/4"-20 thread mounts

Professional monitoring tools
3D LUT, HDR(HLG), Focus Peaking, Check Field, Guides, Grids, Cross Hair, Anamorphic mode, False Color, H/V Delay, HDR(HLG), Histogram, Luma Waveform, Image Flip, OSD Flip, Pixel to Pixel, Zooming, R/G/B/Chroma Only, Scaling, Under scan, Zebra, Audio Meters and more.

3D LUTs support via USB input
Support for 3D LUTs enables you to view your log footage in your chosen color space or palette. This monitor incorporates one 3G-SDI input, one 3G-SDI output, one HDMI input, one HDMI output, a 3.5mm headphone audio output, and a USB Type-A port used to load 3D LUTs and for software updates. A 178 Degree viewing angle enables off-axis viewing without color and contrast shifts

Compatible with NPF Mount Wireless Video Transmission
When connecting with any NPF mount wireless video transmission, like XM1000S, Cine Eye-Pro, or Hollyland 400S, HS7T II will become one wireless monitor. Moreover, the monitor can supply power for any wireless video transmission system attached to the back: a helpful feature when trying to keep the monitor setup clean and compact.

NATO slide mount bracket

4K HDMI and 3G-SDI Input/output
4K HDMI and 3G/HD/SD-SDI inputs, both with loop-through outputs.

4K HDMI Signal
3840 x2160p@30Hz 24HZ, 4096 x2160p@30Hz 24Hz, 1920 x1080p@23.98 Hz,24Hz,25Hz,29.97Hz,30Hz,50.94Hz, 60Hz, 1920 x1080psf@23.98Hz,24Hz,25Hz,29.97Hz,30Hz

3G HD SDI Signal
1920 x1080p/50Hz,59.94Hz, 60Hz YUV422,1920 x1080p @23.98Hz, 24Hz, 25Hz,29.94Hz,30Hz YUV444/YUV422/RGB444 and below.

Dual Swappable Battery Supply
Dual swappable battery support (never disconnected ) is really one good design for the maker outside.

The HS7T II can be powered by two hot-swappable Sony L-Series batteries or via the 4-pin aviation input (DC 7.4-24V).
