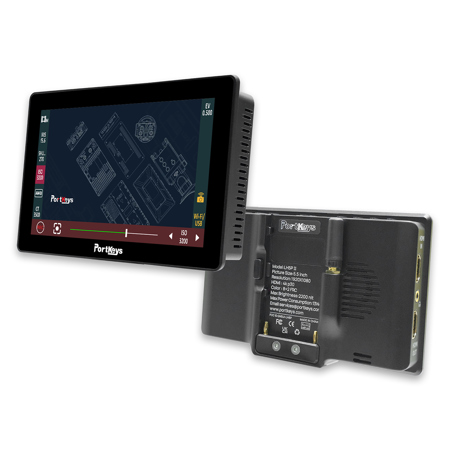

Portkeys LH5P II 5.5" Full HD Touchscreen Monitor for Select BMPCC Cameras, Supports 4K HDMI

SKU: PKLH5PIIB MFR: LH5P II-B
Earn VIP Reward Points

Key Features

  • Capture every detail with the Portkeys LH5P II's sharp 5.5" Full HD touchscreen.
  • Enjoy a bright, clear view with the 2200 nits monitor, perfect for outdoor shooting.
  • Supports 4K HDMI input, ensuring compatibility with a wide range of cameras.
  • Use the touchscreen to quickly access focus assist, waveform, and other tools.
  • Control select BMPCC cameras via Bluetooth for seamless, integrated operation.
  • Lightweight design at just 10.1 oz, ideal for on-the-go video production.
See More Product Details
On Backorder?Expected Availability: 10/2025Request assistance or get notified
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$79.99

3 Year

$109.99

4 Year

$129.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Portkeys LH5P II for BMPCC Specifications

Display

Display

Jump to...
  • Panel Type

    LCD

  • Display Size

    5.5" (14cm)

  • Resolution

    1920 x 1080

  • Aspect Ratio

    16:9

  • Viewing Angle

    Horizontal: 178 Degree
    Vertical: 178 Degree

  • Touchscreen

    Yes

  • Maximum Brightness

    2200 nits / cd/sq. m

  • Contrast Ratio

    1000:1

  • Bit Depth / Color Support

    10-Bit (1.07 Billion Colors)

  • HDR Compatibility

    Yes

  • Pixels Per Inch (ppi)

    401 ppi

  • Color Gamut

    100% Rec. 2020
    85% DCI-P3

  • Image Controls

    Anamorphic De-Squeeze, Check Field, Color Temperature Selection, Customizable Aspect Ratios, False Color, Focus Assist, Focus Peaking, H/V Delay, Histogram, Image Flip, Screen Markers, Waveform, Zebra

Inputs / Outputs

Jump to...
  • Video I/O

    1x HDMI Input
    1x HDMI Output

  • Embedded Audio

    HDMI

  • Audio I/O

    1x 1/8" (3.5mm) Headphone Output

  • Built-In Speaker

    None

  • Power I/O

    1x Proprietary (24 VDC) Input/output

  • Other I/O

    1x Mini-USB
    1x USB-A Input

  • Media/Memory Card Slot

    None

  • Wi-Fi

    None

Format Support

Jump to...
  • Video Format

    HDMI (8-Bit 4:4:4/4:2:2)
    DCI 4K: 24
    UHD 4K: 30/29.97/25/24/23.98
    1080p: 60/59.94/50/30/29.97/25/24/23.98
    1080PsF: 30/29.97/25/24/23.98
    1080i: 60/59.94/50
    720p: 60/59.94/50
    576p: 50
    576i: 50
    480p: 60/59.94/50
    480i: 60/59.94/50

  • DC Input Power

    7 to 24 VDC

  • Battery

    1x L-Series

  • Power Consumption

    13W (Maximum)

  • Mounting

    1x 1/4"-20 Female

Environmental

Jump to...
  • Certifications

    FCC Part 15 C

  • Operating Temperature

    32 to 104 Degree F (0 to 40 Degree C)

Battery

Jump to...
  • Battery Info

    Optional, Not Included

  • Battery Material

    Lithium ion

  • Battery Type

    L-Series

  • Battery Quantity

    1

General

Jump to...
  • Compatibility

    Bluetooth Connection: BMPCC 4K, BMPCC 6K, BMPCC 6K Pro
    LANC Control Cable: Blackmagic Ursa Mini 4K
    Blackmagic Ursa Mini 4.6K
    Blackmagic Ursa Mini Pro 4.6K G2
    Blackmagic Ursa Broadcast
    Blackmagic Cinema Camera 2.7K
    Blackmagic Cinema Camera 4K
    Blackmagic Micro Studio Camera 4K

  • Materials

    Aluminum, Glass

  • Dimensions

    5.7 x 3.5 x 1.22" (144 x 90 x 30.88mm)

  • Weight

    10.1 oz (285g)

About Portkeys LH5P II for BMPCC

Become a master of your craft with the Portkeys LH5P II, a 5.5" Full HD IPS touchscreen monitor that is the perfect companion for select BMPCC cameras. This high-quality monitor boasts a stunning 1920 x 1080 resolution, ensuring that every detail of your footage is displayed with crystal-clear precision. With support for 4K HDMI input and output at 30p, you can trust that your 4K content will be flawlessly transmitted without any loss of quality.

Crafted with a sleek, all-metal CNC aluminum alloy shell, the LH5P II is not only durable but also offers a professional look and feel that is ideal for any shooting environment. The monitor's easy-to-use interface is enhanced by its responsive touchscreen, which simplifies the process of navigating through menus and adjusting camera settings on the fly.

The LH5P II is a versatile tool that provides filmmakers with a wide array of features to ensure optimal control over their recordings. Customizable shortcut keys, including the F1-F4 keys, can be programmed for quick access to camera functions such as recording start and stop. The innovative +/- key allows for precise adjustments to IRIS, Shutter, Zoom, Frame Rate, and ISO, giving you complete creative control.

Equipped with a new peaking algorithm, the LH5P II helps you capture the perfect focus every time, while the customized peaking range and image crop options ensure that you can tailor the monitor to your specific needs. Anamorphic lens calibration is also supported, with ratios ranging from 1.00X to 2.35X, and a user-defined adjustment range of 0.25X-4.00X, making it an essential tool for those utilizing anamorphic lenses.

The monitor's impressive 2200nit brightness means it stands fearless against bright light, maintaining visibility even in direct sunlight. This feature, along with the wide color gamut, ensures that your images are not only bright but also vibrant and true to life.

For advanced functionality, the LH5P II offers wired control of TILTA Nucleus-N/M motors, adding another layer of convenience for lens adjustments. Additionally, the monitor's ability to detect brightness and RGB signal changes before and after loading 3D LUTs, as well as the custom JPG picture freeze frame feature, provides you with powerful tools for color grading and scene comparison.

In summary, the Portkeys LH5P II 5.5" Full HD Touchscreen Monitor is an indispensable asset for videographers and filmmakers seeking a high-quality, easy-to-use, and versatile display solution. Its robust build, advanced features, and intuitive controls make it a standout choice for enhancing your video production workflow.

Portkeys LH5P II for BMPCC Features

  • F key can be set to camera REC key
  • 2200nit 5.5inch touchscreen monitor. Factory calibration for Rec. 709, DCI-P3 85%
  • CNC aluminum alloy all-metal shell
  • Wired control Tilta Nucleus-N/M motors
  • New peaking, anamorphic lens calibration, customized peaking range( Peaking frame), Brightness and RGB signal detection before/after loading 3D LUT
  • Real-time Eye focus while recording

Key Features

  • Capture every detail with the Portkeys LH5P II's sharp 5.5" Full HD touchscreen.
  • Enjoy a bright, clear view with the 2200 nits monitor, perfect for outdoor shooting.
  • Supports 4K HDMI input, ensuring compatibility with a wide range of cameras.
  • Use the touchscreen to quickly access focus assist, waveform, and other tools.
  • Control select BMPCC cameras via Bluetooth for seamless, integrated operation.
  • Lightweight design at just 10.1 oz, ideal for on-the-go video production.

What's in the box:

  • Portkeys LH5P II 5.5" Full HD Touchscreen Monitor
  • Straight to Elbow DC Power Cable
  • Short Head Antenna
  • Right Angle Antenna
  • LANC Control Cable
  • Type-C Control Cable
  • Safety Plastic Box
  • USB Flash Drive (User Manual)
  • Portkeys 1 Year Limited Warranty
