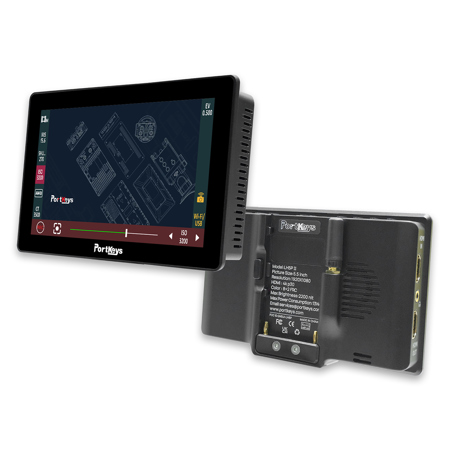

Portkeys LH5P II 5.5" Full HD Touchscreen Monitor for Select Panasonic Cameras, Supports 4K HDMI

SKU: PKLH5PIIP MFR: LH5P II-P
Earn VIP Reward Points

Key Features

  • Immerse in vivid detail with the Portkeys LH5P II's 5.5" Full HD video monitor screen.
  • Achieve perfect focus using focus peaking on this touchscreen on-camera monitor.
  • Enjoy wide compatibility; this 4K HDMI monitor supports select Panasonic cameras.
  • Experience superior clarity with the impressive 2200 nits bright LCD panel.
  • Utilize customizable aspect ratios on this Portkeys monitor for various projects.
  • Operate in diverse conditions with a wide operating temp range on this field monitor.
See More Product Details
Special Order?Estimated to Ship: 08/10/2025
Free Shipping

See Options

Qty
1

Protect your gear with Adorama Protect.* Learn more

2 Year

$79.99

3 Year

$109.99

4 Year

$129.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Portkeys LH5P II-P Specifications

Display

Display

Jump to...
  • Panel Type

    LCD

  • Display Size

    5.5" (14cm)

  • Resolution

    1920 x 1080

  • Aspect Ratio

    16:9

  • Viewing Angle

    Horizontal: 178 Degree
    Vertical: 178 Degree

  • Touchscreen

    Yes

  • Maximum Brightness

    2200 nits / cd/sq. m

  • Contrast Ratio

    1000:1

  • Bit Depth / Color Support

    10-Bit (1.07 Billion Colors)

  • HDR Compatibility

    Yes

  • Pixels Per Inch (ppi)

    401 ppi

  • Color Gamut

    100% Rec. 2020
    85% DCI-P3

  • Image Controls

    Anamorphic De-Squeeze, Check Field, Color Temperature Selection, Customizable Aspect Ratios, False Color, Focus Assist, Focus Peaking, H/V Delay, Histogram, Image Flip, Screen Markers, Waveform, Zebra

Inputs / Outputs

Jump to...
  • Video I/O

    1x HDMI Input
    1x HDMI Output

  • Embedded Audio

    HDMI

  • Audio I/O

    1x 1/8" (3.5mm) Headphone Output

  • Built-In Speaker

    None

  • Power I/O

    1x Proprietary (24 VDC) Input/output

  • Other I/O

    1x Mini-USB
    1x USB-A Input

  • Media/Memory Card Slot

    None

  • Wi-Fi

    None

Format Support

Jump to...
  • Video Format

    HDMI (8-Bit 4:4:4/4:2:2)
    DCI 4K: 24
    UHD 4K: 30/29.97/25/24/23.98
    1080p: 60/59.94/50/30/29.97/25/24/23.98
    1080PsF: 30/29.97/25/24/23.98
    1080i: 60/59.94/50
    720p: 60/59.94/50
    576p: 50
    576i: 50
    480p: 60/59.94/50
    480i: 60/59.94/50

  • DC Input Power

    7 to 24 VDC

  • Battery

    1x L-Series

  • Power Consumption

    13W (Maximum)

  • Mounting

    1x 1/4"-20 Female

Environmental

Jump to...
  • Certifications

    FCC Part 15 C

  • Operating Temperature

    32 to 104 Degree F (0 to 40 Degree C)

Battery

Jump to...
  • Battery Info

    Optional, Not Included

  • Battery Material

    Lithium ion

  • Battery Type

    L-Series

  • Battery Quantity

    1

General

Jump to...
  • Compatibility

    USB Type-C Control Cable: Panasonic GH6, Panasonic S1H, Panasonic GH511, Panasonic GH511, Panasonic GH5S, Panasonic GH5, Panasonic S1, Panasonic S1H, Panasonic S1R, Panasonic S5M2, Panasonic S5, Panasonic G9, Panasonic BGH1, Panasonic BS1H

  • Materials

    Aluminum, Glass

  • Dimensions

    5.7 x 3.5 x 1.22" (144 x 90 x 30.88mm)

  • Weight

    10.1 oz (285g)

  • UPC Code

    5059718961108

About Portkeys LH5P II-P

Experience the superior performance of the LH5P II 5.5" Full HD Touchscreen Monitor, specifically designed for select Panasonic cameras. This advanced monitor supports 4K HDMI 30p signal input and output, ensuring high-quality, detailed images for your photography and videography needs.

Constructed with a durable, all-metal CNC aluminum alloy shell, this sleek monitor offers both wired and wireless control options for your camera. The user-friendly touchscreen interface allows for easy navigation and control of camera settings, including the ability to start and stop recording with the customizable F1-F4 keys.

The LH5P II monitor is equipped with a new peaking algorithm, enhancing your ability to capture more focus in your shots. It also features a wide color gamut, making it fearless of bright light and clearly visible even in direct sunshine.

Customize your shooting experience with a range of features, including adjustable IRIS, shutter, zoom, frame rate, and ISO controls. The monitor also supports wired control of TILTA Nucleus-N/M Motors, offering even more versatility.

For those using anamorphic lenses, the monitor provides calibration and supports a variety of ratios from 1.00X to 2.35X, with a user-defined adjustment range of 0.25X-4.00X. It also offers customized image crop and full-screen display options.

The LH5P II monitor goes beyond standard functionality with its brightness and RGB signal detection before and after loading 3D LUT. It even allows for custom JPG picture freeze frame, enabling you to compare a captured image with real-time video through semi-transparent image superposition. Note that the image must be a 16:9 1920x1080 jpg for this feature.

In summary, the LH5P II 5.5" Full HD Touchscreen Monitor for Panasonic cameras is a high-quality, advanced tool that enhances your control and creativity in capturing stunning images and videos.

Portkeys LH5P II-P Features

  • F key can be set to camera REC key
  • 2200nit 5.5inch touchscreen monitor. Factory calibration for Rec. 709, DCI-P3 85%
  • CNC aluminum alloy all-metal shell
  • Wired control Tilta Nucleus-N/M motors
  • New peaking, anamorphic lens calibration, customized peaking range( Peaking frame), Brightness and RGB signal detection before/after loading 3D LUT
  • Real-time Eye focus while recording

Key Features

  • Immerse in vivid detail with the Portkeys LH5P II's 5.5" Full HD video monitor screen.
  • Achieve perfect focus using focus peaking on this touchscreen on-camera monitor.
  • Enjoy wide compatibility; this 4K HDMI monitor supports select Panasonic cameras.
  • Experience superior clarity with the impressive 2200 nits bright LCD panel.
  • Utilize customizable aspect ratios on this Portkeys monitor for various projects.
  • Operate in diverse conditions with a wide operating temp range on this field monitor.

What's in the box:

  • Portkeys LH5P II 5.5" Full HD Touchscreen Monitor
  • Straight to Elbow DC Power Cable
  • Short Head Antenna
  • Right Angle Antenna
  • LANC Control Cable
  • Type-C Control Cable
  • Safety Plastic Box
  • USB Flash Drive (User Manual)
  • Portkeys 1 Year Limited Warranty
