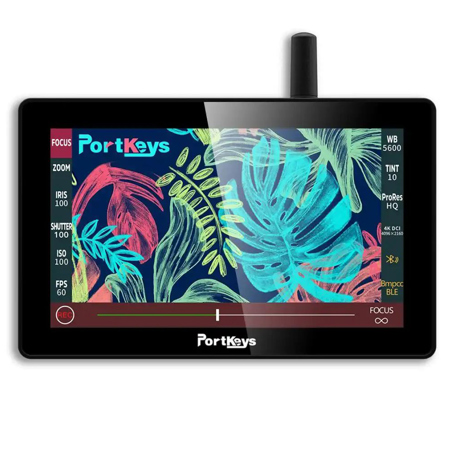

Portkeys LH5P 5.5" Full HD Touchscreen Monitor with Camera Control for Tilta Nucleus N, Supports 4K HDMI

SKU: PKLH5PT MFR: LH5P-T
Earn VIP Reward Points

Key Features

  • Experience sharp detail with the Portkeys LH5P's 5.5" Full HD touchscreen monitor.
  • Achieve perfect focus using focus peaking on this camera-control video monitor.
  • Control Tilta Nucleus N with ease, streamlining your workflow on set with this monitor.
  • Enjoy vibrant colors and clarity with 1700 cd/sq. m brightness on the HDMI monitor.
  • Lightweight design at only 8.8 oz, making the Portkeys LH5P video monitor highly portable.
  • Supports 4K HDMI input, ensuring compatibility with a wide range of cameras and devices.
See More Product Details
FREE 2-Day Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$34.99

2 Year

$59.99

3 Year

$79.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Portkeys LH5P Specifications

Display

Display

Jump to...
  • Panel Type

    LCD

  • Display Size

    5.5" (14.0cm)

  • Resolution

    1920 x 1080

  • Aspect Ratio

    16:9

  • Viewing Angle

    Horizontal: 178 Degree
    Vertical: 178 Degree

  • Touchscreen

    Yes

  • Maximum Brightness

    1700 cd/sq. m

  • Contrast Ratio

    1000:1

  • Bit Depth/Color Support

    8-Bit (16.7 Million Colors)

  • HDR Compatibility

    Yes

  • Pixels Per Inch (ppi)

    423 ppi

  • Image Controls

    Anamorphic De-Squeeze, Color Temperature Selection, Customizable Aspect Ratios, False Color, Focus Peaking, H/V Delay, Histogram, Image Flip, Pixel Zoom, R/G/B/Chroma Only, RGB Parade, Scaling, Screen Markers, Underscan, Vectorscope, Waveform, Zebra

  • Video

    1x HDMI Type A Input
    1x HDMI Type A Output

  • Embedded Audio

    HDMI

  • Audio

    1/8" (3.5mm) Headphone Output

  • Built-In Speaker

    None

  • Power

    Barrel (24 VDC) Input
    Barrel (2 A / 5 VDC) Output

  • Other I/O

    1x USB 2.0 (USB Type-A) Input

  • Media/Memory Card Slot

    None

  • Wi-Fi

    None

Format Support

Jump to...
  • Video Format

    HDMI (8-Bit 4:4:4/4:2:2)
    DCI 2K: 24
    UHD 4K: 30/29.97/25/24/23.98
    1080p: 60/59.94/50/30/29.97/25/24/23.98
    1080PsF: 30/29.97/25/24/23.98
    1080i: 60/59.94/50
    720p: 60/59.94/50
    576p: 50
    576i: 50
    480p: 60/59.94
    480i: 60/59.94

  • DC Input Power

    7 to 24 VDC

  • Battery Type

    1x L-Series

  • Power Consumption

    10 W (Maximum)

Battery

Jump to...
  • Battery Info

    required, not included

  • Battery Material

    lithium ion

  • Battery Type

    non-universal

  • Battery Quantity

    1

General

Jump to...
  • Compatibility

    Tilta Nucleus N

  • Material

    Aluminum

  • Dimensions

    5.7 x 4.5 x 1.1" (144 x 114.8 x 28mm)

  • Weight

    8.8 oz (250g)

About Portkeys LH5P

When it comes to capturing the perfect shot, the LH5P 5.5" Full HD Touchscreen Monitor with Camera Control for Tilta Nucleus N is an indispensable tool for photographers and videographers. This high-performance monitor boasts an impressive 1700 cd/sq. m brightness and supports 4K30 video input and output via HDMI, ensuring crisp, clear, and vibrant visuals every time.

One of the standout features of this monitor is its integrated camera controller. This allows for seamless control over key camera functions such as record, shutter, and focus, depending on the capabilities of your camera via the control port. To facilitate this, a control cable is included, specifically designed to connect your Tilta Nucleus N mirrorless camera to the monitor. For those using different camera types, additional cables can be purchased separately.

For added convenience, the LH5P monitor is equipped with four F-keys located on the top. These keys can be programmed with presets for quick and easy access to your most frequently used settings. This feature, coupled with an array of monitoring tools such as waveform, histogram, false color, and vectorscope, makes this monitor a versatile tool for any shoot.

Focusing aids like peaking, zoom, and markers are also included, providing you with the tools you need to achieve precise focus and framing. The monitor's rear houses a built-in L-Series battery plate, which can be powered by a separately available battery or dummy battery. An integrated power output is also available, allowing you to power your camera directly from the monitor using the included cable.

In summary, the LH5P 5.5" Full HD Touchscreen Monitor with Camera Control for Tilta Nucleus N, supporting 4K HDMI, is a comprehensive solution for all your on-set monitoring and camera control needs.

Portkeys LH5P Features

  • 5.5" HDMI 4K30 Touchscreen Monitor
  • HDMI input and output up to 4K30P
  • 1700 cd/ sq. m Brightness, HDR Preview
  • Control camera functions such as REC, Focus, IRIS, and more
  • 3D LUT support with custom LUTs via USB

Key Features

  • Experience sharp detail with the Portkeys LH5P's 5.5" Full HD touchscreen monitor.
  • Achieve perfect focus using focus peaking on this camera-control video monitor.
  • Control Tilta Nucleus N with ease, streamlining your workflow on set with this monitor.
  • Enjoy vibrant colors and clarity with 1700 cd/sq. m brightness on the HDMI monitor.
  • Lightweight design at only 8.8 oz, making the Portkeys LH5P video monitor highly portable.
  • Supports 4K HDMI input, ensuring compatibility with a wide range of cameras and devices.

What's in the box:

  • Portkeys LH5P 5.5" Full HD Touchscreen Monitor with Camera Control
  • Straight to Elbow DC Power Cable
  • Short Head Antenna
  • Right Angle Antenna
  • Warm Prompt
  • LANC Control Cable
  • TYPE-C Control Cable
  • User Manual
  • Safety Plastic Box
  • Portkeys 1 Year Limited Warranty
