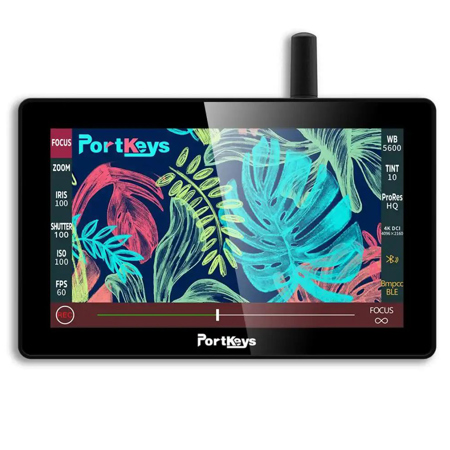

Portkeys LH5P 5.5" Full HD Touchscreen Monitor with Camera Control for ZCAM E2 S6/F6, Supports 4K HDMI

SKU: PKLH5PZ MFR: LH5P-Z
Earn VIP Reward Points

Key Features

  • Experience superior clarity with this 5.5" Full HD touchscreen camera monitor.
  • Control your ZCAM E2 S6/F6 directly through the Portkeys LH5P video monitor.
  • Enjoy a bright, clear view with the 1700 cd/m high-brightness on-camera monitor.
  • Achieve precise focus with focus peaking and other advanced image controls.
  • Supports up to UHD 4K HDMI input for high-resolution video monitoring needs.
  • Lightweight aluminum build at just 8.8 oz, perfect for on-the-go video shoots.
See More Product Details
Free Expedited Shipping

See Options

Qty
1

Protect your gear with Adorama Protect.* Learn more

1 Year

$34.99

2 Year

$59.99

3 Year

$79.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Portkeys LH5P Specifications

Display

Display

Jump to...
  • Panel Type

    LCD

  • Display Size

    5.5" (14.0cm)

  • Resolution

    1920 x 1080

  • Aspect Ratio

    16:9

  • Viewing Angle

    Horizontal: 178 Degree
    Vertical: 178 Degree

  • Touchscreen

    Yes

  • Maximum Brightness

    1700 cd/sq. m

  • Contrast Ratio

    1000:1

  • Bit Depth/Color Support

    8-Bit (16.7 Million Colors)

  • HDR Compatibility

    Yes

  • Pixels Per Inch (ppi)

    423 ppi

  • Image Controls

    Anamorphic De-Squeeze, Color Temperature Selection, Customizable Aspect Ratios, False Color, Focus Peaking, H/V Delay, Histogram, Image Flip, Pixel Zoom, R/G/B/Chroma Only, RGB Parade, Scaling, Screen Markers, Underscan, Vectorscope, Waveform, Zebra

  • Video

    1x HDMI Type A Input
    1x HDMI Type A Output

  • Embedded Audio

    HDMI

  • Audio

    1/8" (3.5mm) Headphone Output

  • Built-In Speaker

    None

  • Power

    Barrel (24 VDC) Input
    Barrel (2 A / 5 VDC) Output

  • Other I/O

    1x USB 2.0 (USB Type-A) Input

  • Media/Memory Card Slot

    None

  • Wi-Fi

    None

Format Support

Jump to...
  • Video Format

    HDMI (8-Bit 4:4:4/4:2:2)
    DCI 2K: 24
    UHD 4K: 30/29.97/25/24/23.98
    1080p: 60/59.94/50/30/29.97/25/24/23.98
    1080PsF: 30/29.97/25/24/23.98
    1080i: 60/59.94/50
    720p: 60/59.94/50
    576p: 50
    576i: 50
    480p: 60/59.94
    480i: 60/59.94

  • DC Input Power

    7 to 24 VDC

  • Battery Type

    1x L-Series

  • Power Consumption

    10 W (Maximum)

Battery

Jump to...
  • Battery Info

    required, not included

  • Battery Material

    lithium ion

  • Battery Type

    non-universal

  • Battery Quantity

    1

General

Jump to...
  • Compatibility

    ZCAM E2 S6/F6

  • Material

    Aluminum

  • Dimensions

    5.7 x 4.5 x 1.1" (144 x 114.8 x 28mm)

  • Weight

    8.8 oz (250g)

About Portkeys LH5P

While the LH5P 5.5" Full HD Touchscreen Monitor with Camera Control for ZCAM E2 S6/F6 is a high-quality, innovative, and user-friendly device, it also boasts a remarkable 1700 cd/sq. m brightness, ensuring clear and vibrant image quality. This versatile monitor supports 4K HDMI, allowing for the input and output of up to 4K30 video, enhancing your viewing and editing experience.

Equipped with an integrated camera controller, the LH5P provides comprehensive control over your ZCAM E2 S6/F6 mirrorless camera. Depending on the functions supported by your camera via the control port, you can manage settings such as record, shutter, and focus with ease. The package includes a control cable to connect your camera to the monitor, and for added versatility, cables for other camera types can be purchased separately.

The LH5P monitor is designed with user convenience in mind, featuring four F-keys on the top for setting quick access presets. This durable monitor also offers a range of monitoring tools, including waveform, histogram, false color, and vectorscope. It also provides focusing aids like peaking, zoom, and markers, making it an invaluable tool for both professional and amateur photographers.

At the rear of the monitor, a built-in L-Series battery plate is available for an optional battery or dummy battery, ensuring uninterrupted power supply. An integrated power output can also power your camera via the included cable, making the LH5P a versatile addition to your photography equipment.

Portkeys LH5P Features

  • 5.5" HDMI 4K30 Touchscreen Monitor
  • HDMI input and output up to 4K30P
  • 1700 cd/ sq. m Brightness, HDR Preview
  • Control camera functions such as REC, Focus, IRIS, and more
  • 3D LUT support with custom LUTs via USB

Key Features

  • Experience superior clarity with this 5.5" Full HD touchscreen camera monitor.
  • Control your ZCAM E2 S6/F6 directly through the Portkeys LH5P video monitor.
  • Enjoy a bright, clear view with the 1700 cd/m high-brightness on-camera monitor.
  • Achieve precise focus with focus peaking and other advanced image controls.
  • Supports up to UHD 4K HDMI input for high-resolution video monitoring needs.
  • Lightweight aluminum build at just 8.8 oz, perfect for on-the-go video shoots.

What's in the box:

  • Portkeys LH5P 5.5" Full HD Touchscreen Monitor with Camera Control
  • Straight to Elbow DC Power Cable
  • Short Head Antenna
  • Right Angle Antenna
  • Warm Prompt
  • LANC Control Cable
  • TYPE-C Control Cable
  • User Manual
  • Safety Plastic Box
  • Portkeys 1 Year Limited Warranty
