Portkeys MT20 19.5" 3G-SDI/HDMI Field and Studio Monitor with 3D LUTS and Scopes and Hard Case

SKU: PKMT20HDCASE

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Portkeys MT20 19.5" 3G-SDI/HDMI Field and Studio Monitor, Hard Case Specifications

Basic Parameters

Basic Parameters

Jump to...
  • Screen Size

    19.5" (495.3mm)

  • Resolution

    1920 x 1080

  • Color Depth

    8bit

  • Contrast Ratio

    3000:1

  • Viewing Angle (H x V)

    178 x 178 Degree

  • Backlight

    LED

  • Luminance

    250nit

  • Power Consumption

    30W

  • Material

    Outer box is made from aluminum, inner box is made from stainless steel

  • Input Voltage

    DC 12-24V

  • Signal Input

    3G/HD/SD-SDI, 4K HDMI, HDMI, Video, R/L, USB 2pcs, GPI, Extended Key

  • Signal Output

    3G/HD/SD-SDI, HDMI

  • Headphone Input/Output

    Headphone Output

  • Speaker

    4Ohm 2.5W X2

  • Signal Conversion

    HDMI/SDI Conversion, Waveform Output

Composite

Jump to...
  • Composite (Video)

    NTSC-M, NTSC-J,NTSC4.43
    PAL B/G HID,PAL M,PAL N SECAM

Battery Plate

Jump to...
  • Adaptable Battery

    V Mount Plate: Sony V Port
    IDX Plate: Sony V Port
    AB Mount Plate: Anton Bauer Port
    IDX Plate: Anton Bauer Port

Software

Jump to...
  • Software Function

    3D LUT, Waveform, Audio Meters, TALLY, Peaking, Zebra, Zooming, Guides, Cross Hair, False Color, UnderScan, H/V Delay, Check Field, Grids, Aspect, Color Temperature, Custom RGB, Tint, Low Voltage Alarm, Backlight, Automatic Color Calibration System, HLG, CIE Scope, Time Code, GPI-Customize, 3G/HD/SD-SDI LEVEL B Mode, Smpte 372M (Dual-Link), Pixel Measurement (5 x 5)

HDMI Support

Jump to...
  • HDMI

    4096x2160p @ 24Hz
    3840x2160p @ 23.97Hz, 24Hz, 25Hz, 29.97Hz, 30Hz
    1920x1080p @ 23.97Hz, 24Hz, 25Hz, 29.97Hz, 30Hz, 50Hz, 59.94Hz, 60Hz
    1920x1080psf @ 23.97Hz, 24Hz, 25Hz, 29.97Hz, 30Hz, 50Hz, 59.94Hz, 60Hz
    1920x1080psf @ 23.97Hz, 24Hz, 25Hz, 29.97Hz, 30Hz
    1920x1080i @ 50Hz, 59.94Hz, 60Hz
    1280 x 720p @ 50Hz, 59.94Hz, 60Hz
    720x576p @ 50Hz
    720x576i @ 50Hz
    720x480p @ 50Hz, 59.94Hz, 60Hz
    720x480i @ 50Hz, 59.94Hz, 60Hz

SDI Support

Jump to...
  • SDI

    192ox1080p @ 50fps, 59.94fps, 60fps
    1920x1080p @ 50Hz, 59.95 Hz, 60Hz YUV422
    1920x1080p 2 23.97Hz, 24Hz, 25Hz, 29.94Hz, 30Hz, YUV444/YUV422/RGB444
    1920x1080psf @ 23.97Hz, 24Hz, 25Hz, 29.97Hz, 30Hz YUV444/YUV422/RGB444
    1920x1080i @ 50Hz, 59.94Hz, 60Hz, YUV444/YUV422/RGB444
    1280x720p @ 50Hz, 59.94Hz, 60Hz, YUV444/YUV422/RGB444
    &20x480i @ 59.94Hz, YUV422
    720x576i @ 50Hz YUV422

Physical

Jump to...
  • Dimensions

    23.22 x 15.55 x 11.22" (590 x 395 x 285mm)

  • Weight

    24.25 lb (11kg)

About Portkeys MT20 19.5" 3G-SDI/HDMI Field and Studio Monitor, Hard Case

High precise waveform, HDR Preview, Pixel to Pixel and more practical software functions. Suitable with tripod stand, meet the needs in different work scene.

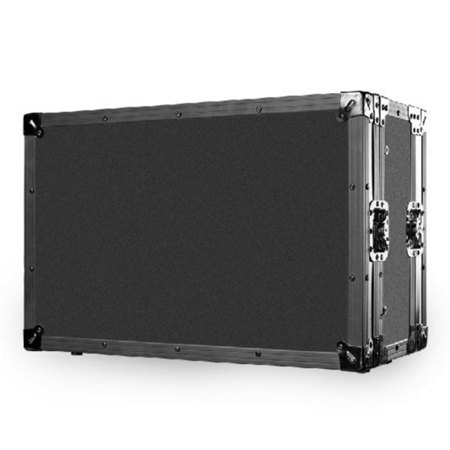

Aviation Aluminum Hard Case Design
MT 20 Hard case version monitor has aviation aluminum case, has special structure design for falling proof. Comprehensive protection. Strong and Reliable. It will be used normally even if MT 20 falls down from 2 meters height.

Accessory Extend
MT 20 has 1/4 and 3/8 screws hole at top that supports to mount magic arm, wireless video transmission and other accessories.

Button
Customized menu button(same as the Main Menu Button),which is convenient for users to operate, and can also set and adjust the volume of the machine.

High Precision Oscilloscop
Equipped with five kinds of high precise oscilloscope function, including vector scope, RGB waveform, brightness waveform, RGB histogram and brightness histogram, and it supports freely switch during a variety of display modes, real-time present you with the most detailed and accu rate image information.

3D LUT
3D LUTcan describe the exact behavior of all color points in a stereo color space, so they can handle any displayed nonlinear properties, make your color palette easier and faster.

X-rite Automatic Color Calibration System
MT 20 monitor supports to use X-rite il Display Pro screen color calibration device for one-click calibration color.

HLG
Preview the high dynamic LOG video

What's in the box:

  • MT20 Monitor with Hard Case
  • 4A Power Adapter
  • IDX Battery Plate
  • Portkeys 1 Year Limited Warranty
