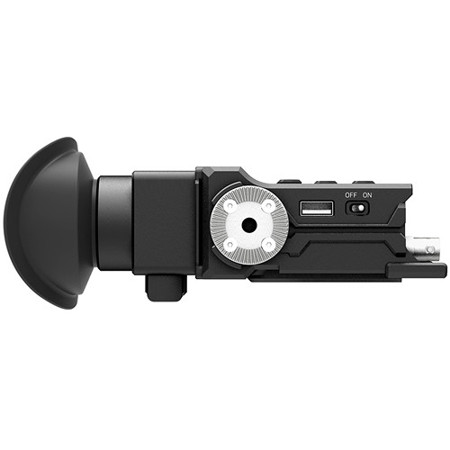

Portkeys OEYE-3G LED EVF 3G SDI 4K HDMI Support
See all Portkeys items

Portkeys OEYE-3G LED EVF 3G SDI 4k HDMI Support for Red Blackmagic, Z Cam, E2 Sony, Canon, Panasonic

SKU: PKOEYE
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Portkeys OEYE Specifications

Basic Parameters

Basic Parameters

Jump to...

  • Screen Size

    0.71" (18.03mm)

  • Brightness

    200nit

  • Resolution

    1920 x 1080

  • Color Depth

    8bit

  • Backlight

    OLED

  • Material

    Aluminum Alloy

  • Input Voltage

    DC 7-24V

  • Power Consumption

    6.5W

  • Diopter

    +8D-3D

  • Signal Input

    3G/HD/SD-SDI, 4K HDMI, HDMI, USB

  • Signal Output

    3G/HD/SD-SDI, HDMI

Software

Jump to...

  • Software Function

    3D LUT, Waveform, Audio Meters, Pixel To Pixel, Guides, Cross Hair, Grids, Peaking, False Color, Zebra, UnderScan, Zooming, Display Flip, Osd Flip, Check Field, H/V Delay, Tint, Color Temperature, Aspect, Backlight, Brightness, Contrast, Chroma, Sharpness, DSLR Scaling, Histogram

HDMI Support

Jump to...

  • HDMI

    4096x2160p @ 24Hz
    3840x2160p @ 23.97Hz, 24Hz, 25Hz, 29.97Hz, 30Hz
    1920x1080p @ 23.97Hz, 24Hz, 25Hz, 29.97Hz, 30Hz, 50Hz, 59.94Hz, 60Hz
    1920x1080psf @ 23.97Hz, 24Hz, 25Hz, 29.97Hz, 30Hz
    1920x1080i @ 50Hz, 59.94Hz, 60Hz
    1280x720p @ 50Hz, 59.94Hz, 60Hz
    720x576p @ 50Hz
    720x576i @ 50Hz
    720x480p @ 59.94Hz, 60Hz
    720x480i @ 59.94Hz, 60Hz

SDI Support

Jump to...

  • SDI

    1920x1080p @ 50fps, 59.94fps, 60fps
    1920x1080p @ 50Hz, 59.94Hz, 60Hz, YUV422
    1920x1080p @ 23.98Hz, 24Hz, 25Hz, 29.94Hz, 30Hz YUV444/YUV422/RGB444
    1920x1080psf @ 23.98Hz, 24hz, 25Hz, 29.97Hz, 30Hz YUV444/YUV422/RGB444
    1920x1080i @ 50Hz, 59.94Hz, 60Hz YUV444/YUV422/RGB444
    1280x720p @ 50Hz, 59.94Hz, 60Hz YUV444/YUV422/RGB444

Physical

Jump to...

  • Dimensions

    7.09 x 2.74 x 2.85" (180 x 69.7 x 72.4mm)

  • Weight

    14.11 oz (400g)

About Portkeys OEYE

3G-SDl/4K HDMI Input/Output
OEYE-3G EVF support 3G-SDl input/output, simultaneously support

Adjustable Diopter
The diopter supports +8D -3D adjustment, which is suitable for users with different vision.

All aluminum body
The body is made of all-aluminum alloy, which is more sturdy and adapts to more severe application scenarios, and is equipped with an ARRI crankset for the installation of auxiliary equipment.

3D LUT
3D LUTcan describe the exact behavior of all color points in a stereo color space, so they can handle any displayed nonlinear properties, make your color palette easier and faster.

Luma Waveform

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • OEYE-3G EVF
  • Safety Box
  • Aviation to B Mount D-Tap Cable
  • Universal DC Adapter to Aviation
  • U Disk (Manual/3D LUTs/Firmware Inside)
  • Tube Clip
  • Glasses Cloth
  • Warm Prompt Card
  • Portkeys 1 Year Limited Warranty
