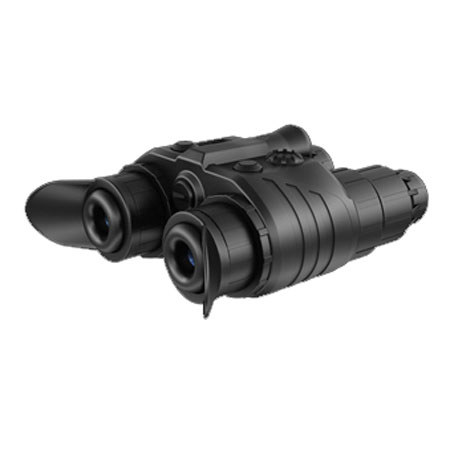

Pulsar Edge GS Super 1+ 1x20 Night Vision Goggles, 36-42 lp/mm Resolution, 36deg. Field of View, 6 mm Exit Pupil

SKU: PL75095

This item is no longer available.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Pulsar Edge GS Super 1+ 1x20 Night Vision Goggles Specifications

  • Intensifier Tube

    Gen 1 CF-Super/EP-33-SF

  • Resolution

    36 - 42 lp/mm

  • Magnification

    1.0x

  • Angle/Field of View

    36deg.

  • Objective Lens Diameter

    20 mm

  • Exit Pupil

    6 mm

  • Dioptric Correction

    +/- 4

  • Infrared Illuminator

    Yes

  • Power Supply

    (2) AAA batteries

  • Runtime

    Up to 50 hours of continuous operation at room temperature

  • Weatherproofing

    IP44

  • Operating Temperature

    -4 to 104deg.F (-20 to 40deg.C)

  • Dimensions

    6.3x4.3x2.4" / 16.00x10.92x6.09 cm

  • Weight

    23 oz / 652.03

  • UPC Code

    744105204726

About Pulsar Edge GS Super 1+ 1x20 Night Vision Goggles

The Pulsar Edge GS 1x20 is primarily designed for use as night vision goggles (the device can also be mounted on a Head Mount included in the box). The Edge GS 1x20 NV Goggles is equipped with an energy-conserving IR Illuminator with adjustable power. IR power adjustment wheel and other control elements are located on top of the device. At the core of the Edge GS 1x20 NV Goggles is a unique combination of specially designed optics, CF-Super Image Intensifier Tube and wide-angled five-lens eyepiece which provides lack of distortion and the highest edge-to-edge resolution performance.

Pulsar Edge GS Super 1+ 1x20 Night Vision Goggles Features

  • Image Intensifier: Gen 1 image intensifier tube boasts 36-42 lp/mm and automatic highlight cut-off, ensuring that the tube and the operator's vision is not damaged when the ambient light level is above a factory pre-set luminosity
  • Integrated IR Illuminator: Use the adjustable short-range IR illuminator to paint your field of view with infrared light, enhancing situational awareness and extending the visible range of your optics
  • 1.0x Magnification: Unmagnified field of view provides the operator with maximum spatial orientation and perception, ideal for hiking and other outdoor activities at night
  • Head/Helmet Mount: Head/helmet mount for prolonged viewing equip this device for comfortable extended observation
  • Export of this product outside of the United States of America is not allowed and is controlled by the US Department of State

Key Features

  • Image Intensifier
  • Integrated IR Illuminator
  • 1.0x Magnification
  • Head/Helmet Mount
