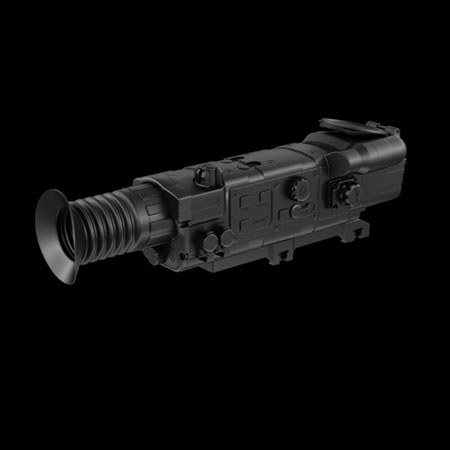

Pulsar Digisight N550 4.5x50 Digital Night Vision Riflescope, Switchable Pre-Loaded Reticles, Built-in IR Illuminator, Integral Picatinny Mount

SKU: PL76316

This item is no longer available.

Overview
Compare
Specs
Q&A

Questions & Answers

Shopper : What caliber rifle fire can the scope endure, ie, how much concussion can it manage? What is the light amplication? (My handheld, 40,000x for example). Concerning the IR, what is the range? (Again, my handheld rated 100' but really good only between 50-75'). And lastly, how broad is the field of view at what range? Thank you. My apologies if I missed any of these informations in your description.ANDREW R : Unfortunately the manufacturer does not provide an specs or test data regarding durability whilst mounted, however the full set of specs from the manufacturer are as follows: Optical Characteristics: * Magnification, x - 4.5 * Objective lens - 50 mm, F/ 1,0 * Field of view, degree / m (at 100m distance) - 5.5 / 9.6 * Eye relief, mm - 67 * Exit pupil, mm - 6 * Resolution, lines/mm - ? 50 * Max. range of detection, m * - 450 * Eyepiece diopter adjustment, D - ±4 * Close-up distance, m - 5 CCD array characteristics: * Type of CCD array - ICX659AL * Resolution, pixel - 752(H)?576(V) * Format (physical dimensions) - 1/3” (4.8x3.6 mm) * Output video signal standard - CCIR / PAL Display characteristics: * Resolution, pixel - 640?480x3; 921600 pixel (VGA quality) * Active pixel zone, mm - 9.0 x 6.8 * Display diagonal, inch - 0.44 Operational characteristics: * Operating voltage - 6V (4xAA type rechargeable batteries) * External power supply / consumption power - DC 9-15V / 3W * Degree of protection, IP code (IEC 60529) - IP44 * Operating temperature, °C - -10 °C... +40°C * Operation time with one set of rechargeable batteries (built-in IR off/on), hour - 4 / 3.5 * Dimensions, mm - 340x95x94 * Weight, kg - 1 (*) - Max. detection range of an object measuring 1.7x0.5 m in natural night conditions (0.05 lux, quarter moon).
Ric S : what is the center line of sight for this scope? In other words, if I mount this scope on a 5/8 inch mount for this rail, will this put the center line of sight too high for seeing through? This will be mounted to a Larue OBR 7.62 rifle.ANDREW R : Unfortunately the manufacturer does not specify the center line of sight for this unit.
Shopper : Can this scope be used as a day and night scope?ANDREW R : This unit is for nighttime use only.

Reviews about this item

Review Summary

Pulsar PL76316 Specifications

  • Generation

    Digital

  • Magnification

    4.5x

  • Objective lens

    50 mm, F/ 1,0

  • Field of view, degree

    5.2 angular degrees

  • Eye relief

    67mm

  • Exit pupil

    6mm

  • Resolution, lines

    = 50mm

  • Max. range of detection

    400 yards

  • Eyepiece diopter adjustment

    +-3.5 diopter

  • Close-up distance

    5 m

  • Power Supply

    6 Volt (4 x AA)

  • Water intrusion rating

    IP46 (IEC 60529)

  • Operating time (without/with IR)

    12 hours / 9 hours

  • Operating Temperature

    -10 to +35 degrees C (+14 to +95 degrees F)

  • Input Power Supply

    3.7-6 Volts DC

  • Dimensions (W x D x H)

    340 x 95 x 94mm / 13.3 x 4 x 4"

  • Weight

    1 kg / 2.20 g

  • UPC Code

    744105205655

About Pulsar PL76316

Pulsar Digisight N550 Digital Night Vision Riflescope lets you set your sights on darkened targets. This versatile digital night vision scope from Pulsar combines a Night Vision scope with a digital Riflescope in a single package. The Pulsar Digital Riflescope features a built-in Infrared Illuminator to supplement low natural light levels. The riflescope optics system employs an internal focusing mechanism (from 5 yards to infinity) with click-stop focus positions.

The focusing system of the Pulsar Riflescope provides clear images at extremely short distances and optimizes image quality at all distances within the working range of the night scope. Windage and elevation adjustments are handled with a single knob, which switches between modes by pressing a nearby button. A 7/8" Weaver scope mount rail allows you to attach additional accessories. The lens cap is permanently attached and flips up easily, sitting flush to the night riflescope body.

The digital riflescope and the built-in infrared light are activated by a gradual turning of the selector switch. The digital controls of the Pulsar Digisight Digital Night Vision Riflescope are easy and intuitive. The Main Menu controls the brightness of the targeting reticule, the choice of reticle shapes and allows you to set a custom running time.

A Brightness Adjustment Wheel allows you to control the brightness of the screen's glow to preserve your night vision and the inversion button allows an instant color of the aiming reticle from black to white. The choice of reticle color is subject to the target's brightness.

The Pulsar Digisight Night Riflescope is equipped with an external video socket for connection of video recording or playback sources. Pressing a button switches the unit from VIDEO IN to VIDEO OUT mode. A mini-USB slot allows the riflescope to be connected to a personal computer. Users can upload additional aiming reticles, including custom user-created target reticles. Most functions of the illuminated scope can also be operated with a remote control unit.

Pulsar PL76316 Features

  • Durable night vision rifle scope
  • Magnifies 4.5 times
  • Built-in IR illuminator
  • Numerous quick and easy functions
  • USB port
  • Video in/out port
  • Screen brightness adjustment

Key Features

  • Durable night vision rifle scope
  • Magnifies 4.5 times
  • Built-in IR illuminator
  • Numerous quick and easy functions
  • Video in/out port
  • Screen brightness adjustment
