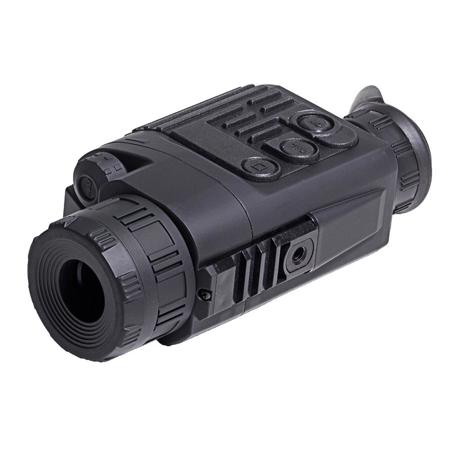

Pulsar 1-4x16 Quantum XD19A Thermal Imaging Monocular, 384x288

SKU: PL77318

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Pulsar Quantum XD19A Specifications

  • Frame Rate

    50Hz

  • Microbolometer Resolution, pixels

    384x288

  • Sensor response

    LWIR

  • Spectral Sensitivity

    7.7 13.2 (Mu m)

  • Pixel Pitch

    25 (Mu m)

  • Display Type

    LCD display

  • Display Resolution

    640x480

  • Video Output

    PAL/ NTSC

  • Pin Type of Video Input / Output

    3.5mm jack

  • Operation

    City, forest, identification

  • Defective Pixel Repair Option

    Yes

  • Magnification

    1x - 4x

  • Digital Zoom

    2x; 4x

  • Lens Diameter

    16mm

  • Lens Focus

    19

  • Relative Aperture

    1:1.2

  • Field of View

    26.8 x 20.8 deg., horizontal x vertical
    50.5 x 38m at 100m, horizontal x vertical
    152 x 114.4' at 100yd, horizontal x vertical

  • Minimum Focusing Distance

    3

  • Eye Relief

    20mm

  • Exit Pupil Diameter

    8mm

  • Diopter Adjustment

    +/- 5 dptr.

  • Focusing Type of Distance

    Internal

  • Range of Detection, m

    515 / 470 (Object 1,7m High, Illumination Level 0,05 lux("1/4 moon")

  • Power Supply

    4 " 6 V

  • Battery Type

    4xAA

  • Battery Life

    5.5 hours

  • External Power Supply

    DC 8.4 " 15

  • Lens material

    Germanium

  • Body Material

    Glass-nylon composite

  • Tripod Mount

    2x 1/4

  • Operating Temperature

    -15 to 50 deg. F (-26 to 10 deg. C)

  • Degree of Protection (acc. to IEC 60529)

    IPX4

  • Calibration

    Manual, automatic, semi-automatic

  • Dimensions (L x W x H)

    7.1 x 3.4 x 2.3" (18.03 x 8.64 x 5.84cm)

  • Weight

    11.3oz (320.35g)

About Pulsar Quantum XD19A

Featuring a 50 hertz frame rate - higher than most on the market - and 640x480 LCD display resolution for a crisp, consistent image of fast-moving objects, the Pulsar Quantum XD19A Thermal Imaging Monocular is engineered to track targets quickly and easily. Its thermal core resolution of 384x288 captures maximum thermal energy efficiently for a more detailed image. Successfully penetrating through fog and smoke in day and nighttime operations, its long-distance viewing is made possible by a 2x and 4x digital zoom, which increases the 1x magnification to 4x. It detects "white hot" and "black hot" heat signatures to up to 515 yards away.

The Pulsar Quantum XD19A's LCD display and numerous modes, make it the ideal choice for a wide variety of applications including: search and rescue missions, reconnaissance, hunting and covert law enforcement/military operations. It features three new operating modes and calibration modes, allowing users to customize the monocular to their surrounding environment.

Three operating modes (City, Forest and Identification) deliver enhanced contrast, significantly improving rendering of hot object details. Users can choose from the automatic, manual or semi-automatic calibration modes, which calibrates the image in just one to two seconds. It includes a standard weaver rail and tripod mount, allowing for attachment of external power supplies, as well as video output to record each session.

Pulsar Quantum XD19A Features

  • 384x288 resolution, 50hz refresh rate
  • 1x magnification with 2x and 4x digital zoom
  • Over 500yd detection range (human size target)
  • Hot white/ hot black viewing modes
  • 7 color palette modes
  • Rangefinding reticle for hogs, deer, and rabbit
  • Display off function to save battery life
  • Manual, automatic, and semi automatic calibration modes
  • City, forest, and identification viewing modes
  • LCD display
  • Brightness and contrast adjustments
  • Video output
  • Quick start-up
  • External power supply adaptable
  • Compact and light weight

What's in the box:

  • Pulsar Quantum XD19A 1-4x16 Thermal Imaging Monocular
  • Carrying Case
  • Output Video Cable
  • Hand Strap
  • Car Adapter
  • Extra Battery Container
  • Lens Cleaning Cloth
  • Pulsar 3 Year Warranty
