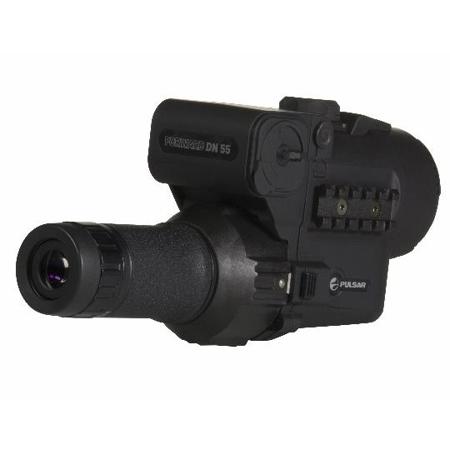

Pulsar Digital Forward DN55 Night Vision Rifle Scope Front Attachment

Pulsar Digital Forward DN55 Night Vision Scope Attachment with 10x32 Monocular Attachment, Converts a Daytime Riflescope into a Night Vision Riflescope

SKU: PL78115
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

Can the Pulsar DN55 Night Vision Scope Attachment be used as a standalone device?

Yes, the Pulsar DN55 can be used as a standalone night vision monocular when the 10x32 monocular attachment is installed.

What is the purpose of the CCD sensor in the Pulsar DN55?

The CCD sensor in the Pulsar DN55 is a high-sensitivity image sensor that excels at capturing clear, vivid images in low light conditions, making it ideal for night vision applications.

Does the Pulsar DN55 Night Vision Scope Attachment fit on any riflescope?

The Pulsar DN55 is designed to be versatile and can fit most standard daytime riflescopes, transforming them into powerful night vision scopes.

What is the magnification level of the Pulsar DN55 Night Vision Scope Attachment?

The Pulsar DN55 features a powerful 10x magnification when used with the included 10x32 monocular attachment, allowing for larger and more detailed images.

Is the Pulsar DN55 suitable for both professional and recreational use?

Yes, the Pulsar DN55 is a versatile device that is perfect for both professional applications such as security and surveillance, and recreational activities like hunting or wildlife observation in low light conditions.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Pulsar DN55 Night Vision Specifications

  • Type of CCD array

    Sony ICX-255AL, 0.33"

  • Camera type (CCIR)

    VNA-535-PR-1

  • Camera resolution

    500x582 pixels, CCIR/EIA

  • Min/max working illuminance

    0,0001...30000 lux

  • Display type

    MicroOLED MDP01A

  • Display Resolution

    VGA 640x480 pix

  • Display diagonal

    0.31"

  • Video OUT availability

    Yes

  • Video Output Signal

    CCIR/EIA

  • Pin type of video output

    Jack 3.5mm

  • Magnification

    1 x (of the digital module)
    10 x (when used with Pulsar 10x32 Monocular)
    Equals to the daylight optical scope/riflescope's magnification

  • Lens diameter

    50 mm

  • Lens focus

    50 mm

  • Relative aperture

    1:1 D/F'

  • Field of View, horizontal

    5 Degree

  • Field of View

    8.7 m at 100m

  • Minimum focusing distance

    5 m

  • Sensor Size

    500 x 582mm

  • Exit Pupil

    30 mm

  • Focusing type of distance

    Internal

  • Resolution

    Greater than or equal to 50 lines per mm

  • Range of detection

    400 m (object 1,7m high, illumination level 0.05 lux ("1/4 Moon), with attachable laser illuminator

  • Emitter

    Laser

  • IR Wavelength

    915 nm

  • Equivalent IR Power (variation range)

    90/110/150 mW

  • Safety class for laser equipment

    1 (according to IEC 60825-1:2007)

  • Beam divergence

    4.5...7 degree

  • Power Supply

    3.7-6

  • Battery Type

    4xAA

  • Battery Life (w/out IR)

    2 hour

  • Battery Life (with IR)

    1.5 hour

  • External Power Supply

    CR2032

  • Click Value (horizontal)

    13 mm at 100 m

  • Click Range (horizontal)

    80/1040 clicks / mm at 100 m

  • Click Value (vertical)

    13 mm at 100 m

  • Click Range (vertical)

    100/1300 clicks / mm at 100 m

  • Outer diameter of the lens housing

    47, 48, 49, 50, 55,56,57,58.7, 60, 62, 65 mm (Of a daylight scopes/riflescopes (possibility of using with a daylight optical scopes/riflescopes)

  • Lens Material

    Glass

  • Body Material

    Glass-nylon composite

  • Operating Temp

    Minus 20 Plus 50 Degree ?

  • Level of Protection (acc. to IEC 60529)

    IPX3 (weather resistant)

  • Shockresistance on rifled weapon

    6000 J

  • Shockresistance on the airgun

    All (calibers)

  • Specific life

    10000 h

  • Weight of Digital NV Module (without bat

    19.7 oz (558.49g)
    22.9 oz (649.20g)
    2.5
    8.8

  • Dimensions

    9.7 x 3.2 x 4.6" (246 x 82 x 117mm) (L(when assembled with 10x32 Monocular)xWxH)

About Pulsar DN55 Night Vision

The Pulsar DN55 is a two-in-one package with the highly sophisticated Pulsar DFA75 (Digital Front Attachment) and a 10x32 monocular attachment for increased application. With installation of the included monocular attachment, the DFA75 can be used not only to convert a daytime riflescope into a powerful digital night vision riflescope, but into a hand-held 10x32 digital night vision monocular as well. The attachment clicks tightly into the eyepiece on the back of the DFA, transforming the entire device into a lightweight monocular. Delivering highly vivid images in challenging lighting conditions, the versatile DFA75 either as a riflescope or monocular is a perfect match for security and surveillance, as well as scanning for prey in pitch black darkness.

Pulsar DN55 Night Vision Features

  • Converts a daytime riflescope into a night vision riflescope
  • Electronic windage/elevation adjustment
  • Fine image quality and resolution
  • Resistant to bright light exposure
  • Modular laser IR illuminator with three-step power adjustment
  • Built-in and external power supply
  • Lightweight and durable composite housing
  • Weather resistant
  • Intuitive easy-to-use interface
  • Wireless remote control
  • Wide range of operating temperature
  • Internal focusing
  • Video output

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Converts a daytime riflescope into a night vision riflescope
  • Electronic windage/elevation adjustment
  • Fine image quality and resolution
  • Resistant to bright light exposure
  • Modular laser IR illuminator
  • Built-in and external power supply

What's in the box:

  • Pulsar Digital Forward DN55 Night Vision Monocular
  • Digital NV Attachment DFA75
  • Protective Cover
  • 915nm Attachable Laser IR Illuminator
  • 10x32 Monocular Attachment
  • Spare Battery Container
  • Wireless Remote Control
  • Plastic Case or Carrying Case
  • Video Cable User Manual
  • Lens Cloth
  • Pulsar 3 Year Warranty
