Planar PCT2485 Specifications

  • Viewable Size

    23.6" diagonal (20.52" horizontal x 11.54" vertical)

  • Touchscreen Type

    Multi-Touch Projected Capacitive (up to 10 touch points)

  • Number of Touch Points

    10

  • Touchscreen Interface

    USB

  • Contrast Ratio (typ)

    1000:1

  • Viewing Angle (typ)

    178 Degree H,V

  • Response Time (typ)

    14 ms

  • Brightness

    With Touchscreen: 220 cd/sq. m
    Without Touchscreen: 250 cd/sq. m

  • Display Type

    Edge-Lit LED LCD

  • Display Resolution

    1920 x 1080, full HD

  • Aspect Ratio

    16:9

  • Tilt Range

    +15 Degree to +70 Degree and flat

  • Palette

    16.7 million colors

  • Pixel Pitch

    0.2715 mm

  • Refresh Rate

    56 to 75 Hz (60 Hz recommended)

  • Video Inputs

    Analog, HDMI, DisplayPort (w/HDCP)

  • HDCP

    Yes

  • Audio Output

    2 speakers, 1W/ch, headphone out

  • Compatibility

    Windows 7, 8, 10 - HID Compliant - no drivers needed for basic touchscreen operation

  • External Connections

    VGA D-Sub 15-pin, DVI 24-pin, HDMI 19-pin, USB - Type A to B, 3.5 mm audio in, AC Power In, USB 3.0 Hub (1 up, 4 down)

  • Power Supply

    Internal Power Supply (AC power)

  • Power Requirements

    100 to 240 VAC, 50/60Hz

  • Power Consumption (max)

    35W typical (<1.0W standby, off)

  • Operating Temperature

    32 Degree to 104 Degree F (0 Degree to +40 Degree C)

  • Humidity

    10 - 90% RH (non-condensing)

  • Mount

    Built-in 100 mm VESA, back

  • Recommended Usage

    Up to 16 hours per day

  • Options / Features

    Integrated HD (720p) webcam with microphone; built-in USB Hub -USB 2.0 - x 2, Kensington Security Slot

  • Blue Light Reduction

    Yes

  • Product Approvals

    UL/c-UL, FCC-Class B, CE, TUV/Bauart, RoHS

  • Dimensions (W x H x D)

    With Stand: 22.5 x 13.7 x 1.8" (571.8 x 347.0 x 44.6mm)
    Without Stand: 22.5 x 13.7 x 1.8" (571.8 x 347.0 x 44.6mm)
    Panel Depth: 1.8" (44.5mm)

  • Weight

    13.7 lbs (6.2kg)

  • UPC Code

    810689070528

About Planar PCT2485

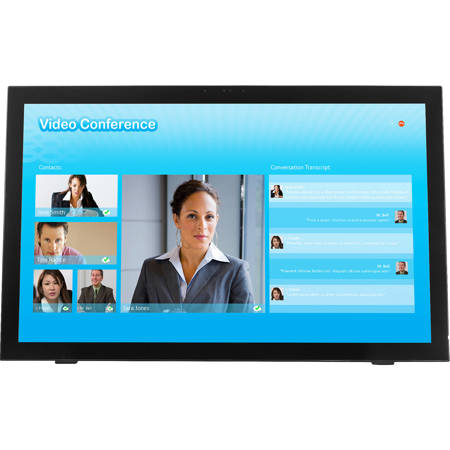

Make your presentations more engaging and interactive with the sleek and modern Helium PCT2485 23.6" Full HD Touchscreen LED LCD Monitor. This high-tech device boasts a 1920x1080 resolution, delivering crystal clear images and vibrant colors for an immersive viewing experience.

The Helium PCT2485 is not just a monitor, it's a comprehensive solution for your business, small office, or enterprise applications. It features a 10-point simultaneous multitouch capability, allowing for a highly responsive and accurate interaction. Whether you're browsing the web, scanning emails, editing photos, or working on graphic design projects, this user-friendly monitor ensures a smooth and efficient operation.

Designed to optimize your Windows 10 experience, this stylish monitor seamlessly integrates with the multi-touch technology of the operating system. It also incorporates blue light reduction presets, helping to minimize eye strain during prolonged use. This feature adjusts blue light levels based on your activity, enhancing visual comfort for extended viewing periods.

The Helium PCT2485 stands out with its adjustable desk stand. Offering unparalleled flexibility, the stand can be adjusted from completely flat to a 70-degree tilt, accommodating both portrait and landscape orientations. This makes it an ideal choice for diverse settings, from conference rooms to classrooms.

But the features don't stop there. The Helium PCT2485 comes with built-in speakers, eliminating the need for external ones and saving you space on your desk. It also includes a Full HD webcam and microphone, perfect for video conferencing or online meetings. A USB hub is integrated into the monitor, allowing for easy connection of other peripherals. Multiple video inputs, including analog, HDMI, and DisplayPort, ensure easy plug-and-play integration into your existing workspace.

In summary, the Helium PCT2485 23.6" Full HD Touchscreen LED LCD Monitor is a versatile, high-performance device that combines functionality, style, and comfort in one package.

Planar PCT2485 Features

  • 23.6" touch screen monitors with 1920x1080 resolution
  • Smooth edge-to-edge glass surface
  • 10-point simultaneous multi-touch capability
  • Unique, easy-to-use Helium Desk Stand
  • Supports both portrait and landscape orientation
  • Built-in HD webcam and microphone

Product Documents

User Manual

Key Features

  • 23.6" Full HD Touchscreen LED LCD Monitor with a 1920x1080 resolution for crystal clear images
  • Integrated with blue light reduction presets to minimize eye strain during prolonged use
  • Built-in speakers, Full HD webcam, and microphone for seamless video conferencing

What's in the box:

  • Helium PCT2485 23.6" 16:9 Full-HD Touchscreen LED LCD Monitor with Built-In Speakers
  • Power Cord
  • VGA Cable
  • HDMI Cable
  • USB 3.0 Cable
  • Audio-In Cable
  • Cleaning Cloth
  • Stylus
  • Cable Wrap
  • User Guide
  • Planar 3 Year Limited Warranty
