Just Reduced

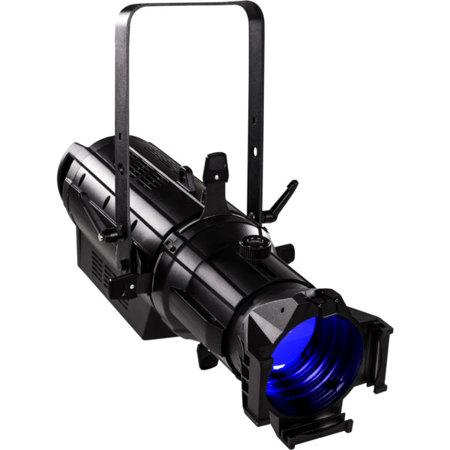

ProLights Eclipse-FS RGBL Full Color LED Ellipsoidal, powerCON TRUE1 Input/Output Connectors, 5-Pin Input/Output Connectors, Without Lens Tube

SKU: PLECLIPSEFS MFR: PIECLIPSEFS
Earn VIP Reward Points

Key Features

  • Unleash vibrant washes with the Eclipse-FS RGBL LED ellipsoidal's full color mixing capabilities.
  • Achieve precise lighting with optional lenses (14° to 50°) for focused beams and gobo projection.
  • Enjoy flicker-free operation with selectable PWM, perfect for broadcast and studio environments.
  • Easily control your lighting setup using DMX, RDM, or the intuitive onboard OLED display.
  • Create dynamic effects with pre-built pixel macros and adjustable speeds for stunning visuals.
  • Built for durability, the sturdy die-cast aluminum body ensures long-lasting performance for DJs.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

Qty
1

Protect your gear with Adorama Protect.* Learn more

2 Year

$139.99

3 Year

$184.99

5 Year

$339.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

ProLights Eclipse-FS Specifications

Light Source

Light Source

Jump to...
  • Source

    91x3W RGB + lime LEDs

  • CCT

    5.400K @full

  • CRI

    STUDIO mode - 82
    HB mode - 70
    @full

  • Luminous flux

    (26 Degree ) 6'262 lm at STUDIO mode - 6'524 lm at HB mode

  • Lux

    (14 Degree ) 8'090 lx - (19 Degree ) 7'020 lx - (26 Degree ) 4'960 lx - (36 Degree ) 2'610 lx - (50 Degree ) 1'190lx @3 m full

  • Source life expectancy

    > 50.000 h

  • Beam angle

    Optional 14 Degree / 19 Degree / 26 Degree / 36 Degree / 50 Degree

  • Lens type

    High-quality glass lens optics

  • Focus

    Manual

Color System

Jump to...
  • Color mixing

    RGB + lime / full color

  • CTC

    CTC control through dedicated DMX channel

  • White presets

    2.700 K - 10.000K

  • Color wheel

    Virtual color wheel with presets

  • Macros

    Several pre-build pixel macros with adjustable speed

Dynamic Effects

Jump to...
  • Gobo size

    B, Outer: 86mm - Image: 64.5mm - Thickness: 1.1mm

  • Static color mode

    Selection of static color

  • Manual color mode

    Manual adjustment of color

  • Special features

    HB mode, STUDIO mode, SILENT mode

  • Body color

    Black

  • Body

    Sturdy die-cast aluminium body conceived for long-time durability

Control

Jump to...
  • Protocols

    DMX512, RDM

  • DMX channels

    1 / 2 / 3RGB / 4RGBL / 5RGBL / 3 / 4 / 5 / 8 / 13 ch - Tungsten / 3200 K / 5400 K / 6500 K

  • RDM

    RDM ready for fixture remote monitor and settings

  • Display

    Black OLED high resolution display

  • Firmware upgrade

    Yes, via USB - DMX interface (UPBOX2) not included

  • Master/Slave

    For synchronized operation of more units linked in a chain

Electronics

Jump to...
  • Dimmer

    Linear 0 - 100% electronic dimmer

  • Strobe / shutter

    1 - 25 Hz, electronic

  • Battery backup

    Battery backup for user operation without connecting to the main power

  • Operating temperature

    -20 Degree - +45 Degree

  • Flicker

    Flicker free operation

  • Selectable PWM

    600 - 25.000 Hz

Electrical

Jump to...
  • Power supply

    100-240 V - 50/60 Hz

  • Power consumption

    At 230 V: 260W
    At 120 V: 260W

  • Output

    At 230 V: 9 units on a single power line
    At 120 V: 4 units on a single power line

Physical

Jump to...
  • Cooling

    Low noise fan

  • Suspension and fixing

    Hanging bracket suitable for safe hanging and positioning

  • Signal connection

    Amphenol XLR 5p IN/OUT connectors

  • Power connection

    Neutrik powerCON TRUE1 IN/OUT connectors

  • IP rating

    20

  • Dimensions (W x H x D)

    26.1 x 10.55 x 10.2" (663 x 268 x 259mm)

  • Weight

    22.05 lbs (10kg)

About ProLights Eclipse-FS

Overwhelm your senses with the Eclipse-FS RGBL Full Color LED Ellipsoidal, a state-of-the-art lighting solution designed for the most discerning environments. This high-performance LED ellipsoidal is engineered with a unique RGB + Lime LED engine, delivering a full spectrum of colors, from vibrant saturates to delicate pastels and pure whites.

The Eclipse-FS RGBL Full Color LED Ellipsoidal is not just about color. It's about consistency and versatility. Whether you're using it with or without gobos, this LED ellipsoidal ensures smooth and consistent color transitions, making it an ideal choice for professional lighting setups.

Equipped with powerCON TRUE1 Input/Output connectors and 5-Pin Input/Output connectors, the Eclipse-FS RGBL Full Color LED Ellipsoidal offers reliable and efficient power and signal transmission. Please note that this model comes without a lens tube, giving you the flexibility to choose the one that best suits your needs.

In the world of professional lighting, the Eclipse-FS RGBL Full Color LED Ellipsoidal stands out as a beacon of quality, performance, and versatility. It's not just a lighting fixture; it's a tool for creating unforgettable visual experiences.

ProLights Eclipse-FS Features

  • RGB + Lime LED ellipsoidal with HD dimming and extensive color palette
  • High definition optics for sharp gobo projection
  • Accepts industry standard accessories

Key Features

  • Unleash vibrant washes with the Eclipse-FS RGBL LED ellipsoidal's full color mixing capabilities.
  • Achieve precise lighting with optional lenses (14° to 50°) for focused beams and gobo projection.
  • Enjoy flicker-free operation with selectable PWM, perfect for broadcast and studio environments.
  • Easily control your lighting setup using DMX, RDM, or the intuitive onboard OLED display.
  • Create dynamic effects with pre-built pixel macros and adjustable speeds for stunning visuals.
  • Built for durability, the sturdy die-cast aluminum body ensures long-lasting performance for DJs.

What's in the box:

  • Eclipse-FS RGBL Full Color LED Ellipsoidal
  • Power Cable
  • User Manual
  • ProLights 2 Year Limited Warranty
