PureLink HDTools HDMI to CATx (HDBaseT) Ultra HD 4K Extension System
See all PureLink items

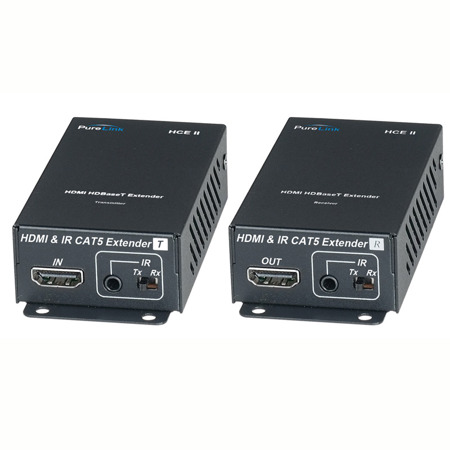

PureLink HDTools HDMI to CATx (HDBaseT) Ultra HD 4K Extension System, Includes HCE II Transmitter, HCE II Receiver, 2x Power Adapter

SKU: PLHCEIITXRX
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

PureLink HDTools HDMI to CATx (HDBaseT) Ultra HD 4K Extension System Specifications

  • Input Signal

    HDMI

  • Output Signal

    HDMI

  • Supporting Display Resolutions

    VGA - WUXGA (Up to 1920 x 1200 at 60Hz) , 480i - 1080p

  • Maximum Distance

    1920x1200 at 60Hz or 1080Pat 60Hz : 230' / 70.10m
    4K2K at 30Hz : 130' / 39.62m

  • Connector

    DC Power Jack
    HDMI 19 Pin Female (Type A)
    RJ-45
    IR

  • Conformations

    HDMI version 1.4 with HDCP

  • Power Rating

    DC 5V , 2A

  • Operating: Temperature

    32 deg. to 131 deg. F (0 deg. to 55 deg. C)

  • Operating: Humidity

    10 - 80%

  • Operating: Altitude

    3000m / 9842.40' Max.

  • Transit: Temperature

    -13 deg. to 140 deg. F (-25 deg. to 60 deg. C)

  • Transit: Humidity

    5 - 95%

  • Transit: Altitude

    15000m / 49212' Max.

  • Storage: Temperature

    -4 deg. to 185 deg. F (-20 deg. to 85 deg. C)

  • Storage: Humidity

    5 - 95%

  • Storage: Altitude

    3000m / 9842.40' Max.

  • Reliability: MTBF

    90% at over 50000 hours aging test
    In compliance with LCD Monitor reliability test standard

  • Frequency Range

    25-165 MHz

  • I/O Signal Standard

    HDMI 1.4

  • IR Carrier

    30K-60KHz / +/-10 deg. / 5M / 2 Way

  • UTP Cable

    CAT5/5e/6/6a/7

  • Power Consumption

    Receiver: 820mA (Max)
    Transmitter: 380mA (Max)

  • Dimensions

    4.01 x 3.34 x 1.02" / 10.19 x 8.48 x 2.59cm

  • Weight

    Receiver: 0.61lbs / 0.28kg
    Transmitter: 0.61lbs / 0.28kg

About PureLink HDTools HDMI to CATx (HDBaseT) Ultra HD 4K Extension System

The PureLink HCE II is a transmitter and receiver set for long distance extension of HDMI video and embedded audio with bi-directional control signal (IR) over single CAT 5/6/7- type cable. It is designed on HDBaseT technology which allows full 3D support with up to 230' (70m) at 1080P at 60Hz and 130' (40m) at 4K2K (UHD) resolution.

A compact and low profile enclosure makes the HCE II ideal for extending HDMI video, embedded multi-channel audio and bidirectional control signal to limited space environment such as behind a flat-panel display. PureLink HCE II is HDCP compliant and it enables the reliable, long distance extension of HDMI signals, supporting Deep Color and full 3D and embedded HD lossless audio formats. In addition, EDID and HDCP communication is being maintained between a source and display.

PureLink HDTools HDMI to CATx (HDBaseT) Ultra HD 4K Extension System Features

  • Zero loss & Zero noise delivery of digital high definition video and audio signal using UTP connection, HCE II delivers HD signals over CAT5/6/7-type cables without loss or digital interference maintaining the clarity and colors
  • Noise cancellation and error correction logic enhances HDMI video and audio signals over long distance
  • Compact and Robust enclosure design allows for discreet installation behind a flat-panel display
  • Designed based on HDBaseT Technology, supporting support Deep Color and full 3D support plus DTS-HD and Dolby TrueHD over a single low cost CATxinterface with up to 230' (70m) at 1080P@60Hz or 1920x1200 at 60Hz and 130' (40m) at 4K2K (UHD) resolution
  • Bi-directional IR control signal transmission
  • Max. Data Rate- 10.2 Gbps
  • HDCP (High-bandwidth Digital Content Protection) Support
  • HDMI version 1.4 Support
  • Audio transmission support LPCM 7.1 at 192KHz, Dolby TrueHD, DTS-HD MA

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Bi-directional IR control signal transmission
  • Max. Data Rate- 10.2 Gbps
  • HDMI version 1.4 Support

What's in the box:

  • PureLink HCE II Transmitter Module
  • HCE II Receiver Module
  • 2x Power Adapter
  • User Manual
  • PureLink 1 Year Warranty
