PureLink HDTools HDMI Portable A/V Test Signal Generator

SKU: PLHDGMINI MFR: HDG-MINI
Earn VIP Reward Points

Key Features

  • Verify HDMI signal integrity with this portable A/V test signal generator, ensuring sound quality.
  • This HDMI test generator supports resolutions up to 1920x1200 at 60Hz for versatile testing needs.
  • Troubleshoot display issues quickly with built-in timing charts, enhancing user-friendliness.
  • Durable design ensures reliable HDMI signal testing in operating temperatures from 50° to 104°F.
  • Test HDMI connectivity with ease using the female connectors for both source and monitor devices.
  • Compact & lightweight A/V test tool, a valuable addition to any studio for signal processing.
See More Product Details
Special Order?Estimated to Ship: 08/17/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$119.99

3 Year

$154.99

5 Year

$269.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

PureLink Test Signal Generator Specifications

  • Input Signal

    DVI / HDMI (TMDS)

  • Output Signal

    DVI / HDMI (TMDS)

  • Supported built-in timing chart

    720 x 480p at 60Hz
    1024 x 768 at 60Hz
    1280 x 720p at 60Hz
    1920 x 1080p at 60Hz
    1920 x 1200 at 60Hz

  • Supporting Display Resolutions

    PC: VGA - WUXGA (up to 1920 x 1200 at 60Hz)
    HDTV: 480i - 1080p

  • HDCP Compatible

    Yes

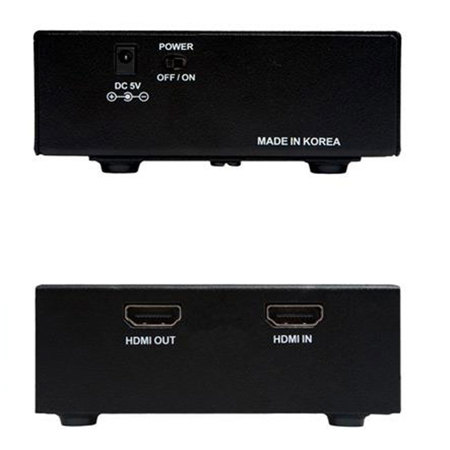

  • Connector

    HDMI Female connector ( Rx, Tx)
    (Rx for source), (Tx for monitor)

  • Conformations

    HDMI 1.3

  • Power Rating

    DC +5V, Use 3 Watts Max.

  • Operating: Temperature

    50 deg. to 104 deg. F (10 deg. to 40 deg. C)

  • Operating: Humidity

    10 - 80%

  • Operating: Altitude

    3000m / 9842.40' Max.

  • Transit: Temperature

    -13 deg. to 140 deg. F (-25 deg. to 60 deg. C)

  • Transit: Humidity

    5 - 95%

  • Transit: Altitude

    15000m / 49212' Max.

  • Storage: Temperature

    -4 deg. to -49 deg. F (-20 deg. to 45 deg. C)

  • Storage: Humidity

    5 - 95%

  • Storage: Altitude

    3000m / 9842.40' Max.

  • Reliability: MTBF

    90% at over 50000 hours aging test
    In compliance with LCD Monitor reliability test standard

  • Dimensions

    4.7 x 3.5 x 0.8' / 1.43 x 1.07 x 0.24m

  • Weight

    0.92lbs / 0.42kg

About PureLink Test Signal Generator

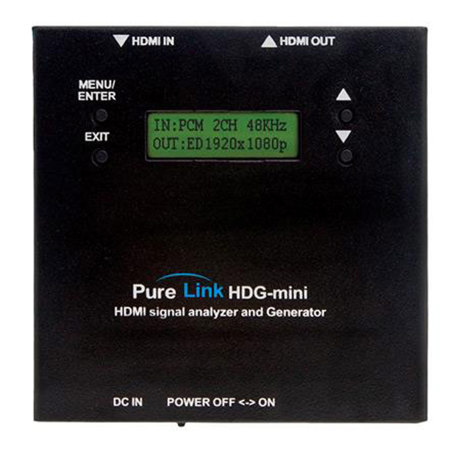

Are you in search of a reliable tool for testing and analyzing your HDMI/DVI video display devices Look no further than the HDTools HDMI Portable A/V Test Signal Generator, also known as the HDG-mini. This innovative device, brought to you by Purelink, is specifically designed to scrutinize the technical specifications of your HDMI source device, providing you with crucial information such as video resolution, video format, and color format.

The HDG-mini stands out in its ability to generate an image from a selection of pre-programmed test-pattern images, transmitting these images to your connected DVI or HDMI monitor. With five different test-pattern images to choose from, including Cross-Hatch, Gray256, Gray16, Color Bar, and Color Gray, you can perform quick and easy calibration tests on your digital display devices.

This HDMI test signal generator doesn't stop at image generation. It also boasts an input signal analyzing capability, accepting HDMI video sources and extracting essential information from the connected video source device. This includes timing, video format, HDCP & 3D signal detection, color depth, and audio format.

The HDG-mini also features enhanced EDID management, courtesy of PureLink's EDID library and emulation features. These provide failsafe EDID capture and storage, ensuring constant and uninterrupted EDID communication between the HDG-mini and your video source device.

The HDG-mini is not only powerful but also extremely portable. Its handheld size and ability to run on AAA batteries make it a convenient tool to use in a wide range of environments. It's also HDCP compliant, supports plug-n-play functionality, and can handle resolutions up to WUXGA 1920x1200 and HD 1080p at 60Hz.

In summary, the HDTools HDMI Portable A/V Test Signal Generator is an indispensable tool for anyone needing to test and analyze their HDMI/DVI video display devices. Its combination of powerful features and portable design make it a standout choice in its category.

PureLink Test Signal Generator Features

  • Portable HDMI/DVI video display testing and analyzing tool
  • Generates images from five pre-programmed test-patterns for easy calibration
  • Analyzes input signals to extract essential video source information
  • Features enhanced EDID management for constant communication
  • Compact and robust design, powered by AAA batteries for convenience
  • Supports resolutions up to WUXGA 1920x1200 and HD 1080p at 60Hz

Product Documents

User Manual

Key Features

  • Verify HDMI signal integrity with this portable A/V test signal generator, ensuring sound quality.
  • This HDMI test generator supports resolutions up to 1920x1200 at 60Hz for versatile testing needs.
  • Troubleshoot display issues quickly with built-in timing charts, enhancing user-friendliness.
  • Durable design ensures reliable HDMI signal testing in operating temperatures from 50° to 104°F.
  • Test HDMI connectivity with ease using the female connectors for both source and monitor devices.
  • Compact & lightweight A/V test tool, a valuable addition to any studio for signal processing.

What's in the box:

  • PureLink HDTools HDMI Portable A/V Test Signal Generator
  • 5V DC Power Supply Adapter
  • Owner's Manual
  • PureLink 2 Year Warranty
