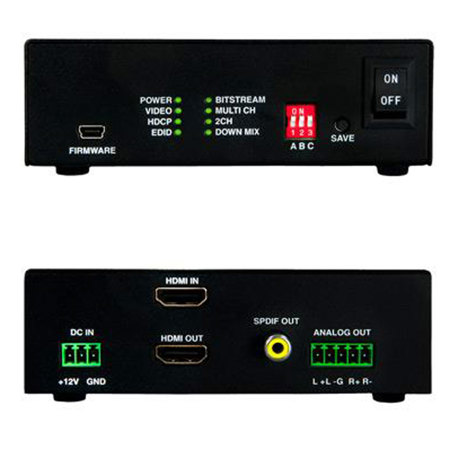

PureLink HDTools HDMI Ultra HD Audio Extractor
See all PureLink items

PureLink HDTools HDMI Ultra HD Audio Extractor with PCM Multi Channel to 2 Channel Downmixing

SKU: PLHEXA01

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

PureLink HDTools HDMI Ultra HD Audio Extractor Specifications

  • Data Transfer Rate

    2.25 Gbps

  • Frequency Range

    25-165 MHz

  • Input Signal

    Single link HDMI

  • Output Signal

    Single link HDMI, SPDIF and Stereo audio

  • Supported Resolution

    Up to WUXGA(1920X1200) 60Hz
    480p-1080i/p

  • Input Connector Type

    DC Power Jack
    19-pin Type A HDMI female

  • Output Connector Type

    19-pin Type A HDMI female
    S/PDIF coaxial digital audio
    5-pin 3.5mm detachable terminal block

  • Standard

    HDMI Ver1.4
    Compliant with High-bandwidth Digital Content Protection (HDCP) using DVI and HDMI standards

  • Power Consumption

    DC +12V 3A, 36 Watts Max.

  • Operating: Temperature

    50 deg. to 104 deg. F (10 deg. to 40 deg. C)

  • Operating: Humidity

    10 - 80%

  • Operating: Altitude

    3000m / 9842.40' Max.

  • Transit: Temperature

    -13 deg. to 140 deg. F (-25 deg. to 60 deg. C)

  • Transit: Humidity

    5 - 95%

  • Transit: Altitude

    15000m / 49212' Max.

  • Storage: Temperature

    -4 deg. to -49 deg. F (-20 deg. to 45 deg. C)

  • Storage: Humidity

    5 - 95%

  • Storage: Altitude

    3000m / 9842.40' Max.

  • Reliability: MTBF

    90% at over 50000 hours aging test
    In compliance with LCD Monitor reliability test standard

  • Dimensions (W x D x H)

    120 x 90 x 20mm / 4.72 x 3.54 x 0.79"

  • Weight

    1lbs / 0.45kg

About PureLink HDTools HDMI Ultra HD Audio Extractor

PureLink's HEXA01 is an audio extractor for HDMI with PCM multi-channel to 2-channel down mixing capabilities. The HEXA01 - housed in a compact, portable frame, along with low power consumption provides a simple and convenient way to extract audio from an HDMI signal. The HEXA-01 features outputs for analog stereo and digital S/PDIF and supports HDMI1.4, 48-Bit Deep Color, as well as full 3D.

Digital and Analog audio support
HDMI Audio extractor with PCM Multi-channel to 2 channel down mixing and simultaneous HDMI, analog stereo and digital S/PDIF outputs.

Balanced or unbalanced analog audio
Equipped with a 5-pin Phoenix Connector port supporting balanced or unbalanced analog stereo audio.

HDMI v1.4, 3D Support
Adopting latest HDMI version 1.4 enables to support 3D, 48-Bit Deep Color and 7.1 Channel Dolby TruHD & DTS MasterHD.

Auto-EDID (EDID Library, Emulation)
PureLink's EDID library and emulation features failsafe EDID capture & storage to provide constant and continuous EDID for source devices.

Features
• HDCP (High-bandwidth Digital Content Protection) Compliant
• Field Upgradable

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • PureLink HDTools HDMI Ultra HD Audio Extractor
  • Firmware Download Cable (USB to Mini USB)
  • DC 12V Power Supply Adapter with AC Cord
  • PureLink 2 Year Limited Warranty
