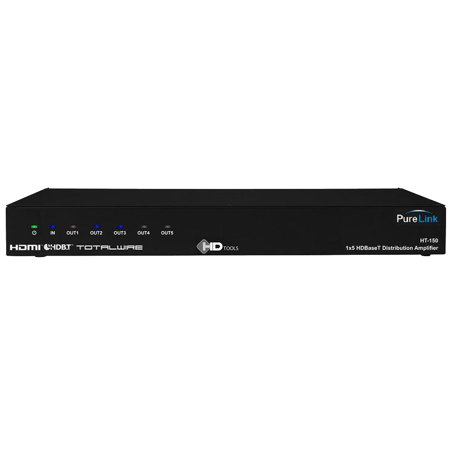

PureLink HDTools HT-150 1x 5 HDMI to HDBaseT Distribution Amplifier with 2x HTR Rx Receiver

SKU: PLHT150KIT22 MFR: HT-150-KIT2-2
Earn VIP Reward Points

Key Features

  • Distribute HDMI signals reliably with this 1x5 HDBaseT distribution amplifier.
  • Extend HDMI up to 330ft using HDBaseT technology for a high-resolution video experience.
  • Enjoy wide compatibility with HDMI 1.4 and HDCP compliance for seamless integration.
  • Control devices remotely using bi-directional IR and RS232 pass-through features.
  • Perfect for presentations, broadcast, and home theaters needing reliable performance.
  • This video distribution amplifier offers easy setup, saving time and resources.
See More Product Details
Special Order?Estimated to Ship: 08/17/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$99.99

3 Year

$159.99

4 Year

$191.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

PureLink HDTools HT-150 Distribution Amplifier with 2x HTR Rx Receiver Specifications

  • HT-150: Input type

    CATx (HDBaseT), 1 port
    IR, 1 port
    Toslink optical in, 1 port

  • HT-150: Output type

    HDMI, 1 port
    IR, 1 port
    RS232, 1 port (bi-direction)
    Ethernet, 1 port (bi-direction)

  • HT-150: Graphic Resolution

    VGA / SVGA / XGA / UXGA / WUXGA
    480i/p , 720i/p , 1080i/p

  • HT-150: HDBaseT Output Distance

    330' / 100.59m

  • HT-150: HDBaseT IR Carrier Frequency

    30 - 60 KHz

  • HT-150: HDBaseT IR Emitter/Receive angle

    Tx:+-30 deg.
    Rx: +-55 deg.

  • HT-150: Distance

    16' / 4.88m (HDBaseT IR Emitter/Receive)

  • HT-150: Connector type

    HDMI 19 Pin Female
    RJ 45
    3.5mm Phone Jack (for IR)
    DC Power Jack
    Serial
    Toslink

  • HT-150: Supported format

    HDMI 1.4

  • HT-150: HDCP Compliant

    Yes

  • HT-150: Power Supply

    DC +5V , 2A

  • HTR Rx: Input type

    CATx (HDBaseT), 1 port
    IR, 1 port

  • HTR Rx: Output type

    HDMI, 1 port
    IR, 1 port

  • HTR Rx: Graphic Resolution

    VGA / SVGA / XGA / UXGA / WUXGA
    480i/p , 720i/p , 1080i/p

  • HTR Rx: HDBaseT Distance

    230' / 70.10m

  • HTR Rx: HDBaseT IR Carrier Frequency

    30 - 60 KHz

  • HTR Rx: HDBaseT IR Emitter/Receive angle

    Tx:+-30 deg.
    Rx: +-55 deg.

  • HTR Rx: Distance

    16' / 4.88m (HDBaseT IR Emitter/Receive)

  • HTR Rx: Connector type

    HDMI 19 Pin Female
    RJ 45
    3.5mm Phone Jack (for IR)
    DC Power Jack

  • HTR Rx: Supported format

    HDMI 1.4

  • HTR Rx: HDCP Compliant

    Yes

  • HTR Rx: Power Supply

    DC +5V , 2A

  • Operating Temperature

    32 deg. to 131 deg. F (0 deg. to 55 deg. C)

  • Operating Humidity

    10 - 80%, non-condensing

  • Storage Temperature

    -4 deg. to 158 deg. F (-20 deg. to 70 deg. C)

  • Storage Humidity

    5 - 95%, non-condensing

  • Dimensions (W x D x H)

    HT-150: 9.97 x 5.7 x 1.57" / 25.32 x 14.48 x 3.99cm
    HTR Rx: 3.5 x 4.7 x 1.2" / 8.89 x 11.94 x 3.05cm

  • Weight

    HT-150: 1.9lbs / 0.86kg
    HTR Rx: 0.62lbs / 0.28kg

About PureLink HDTools HT-150 Distribution Amplifier with 2x HTR Rx Receiver

The HT-150 1x5 HDMI over HDBaseT Distribution Amplifier offers a simple solution for single source to multiple display distribution up to 330' over a single category CATX cable.

Do More, Go Further
The HT-150 provides distribution of HDMI over four HDBaseT outputs, extending HDMI up to 330' (100 m) to four remote locations over a single category CATX cable. An additional HDMI output allows confidence or local monitoring, a feature not offered by other brands. The HT-150 also delivers immediate system analysis with status LEDs that indicate signal present on the input and display sensing on the outputs, an exclusive diagnostic only offered by PureLink's HDTools line.

The PureLink Advantage
PureLink innovations in EDID management are carried on in the HT-150, allowing the operator to enable any of the outputs EDID to communicate the signal requirements to the source device or select the internal 1080p EDID to ensure successful operation regardless of EDID information from any of the connected displays. Extend your infrared in either direction with the included infrared repeater and transmitter. Optional extenders, such as the HCE II RX are fully compatible with the HT150, including infrared functions, allowing infrared control of remote displays, sources or other IR devices.

Additional Features
• Distribute a single source to five (5) displays
• Extend a single source at 1080p up to 330' over single category CATX cable with PureLink's HDBaseT extender receivers
• Direct compatibility with PureLink's HDBaseT extender receivers, eliminating the need for matching transmitters
• Supported resolutions: uncompressed high definition video up to 1080p at 60Hz
• HDMI v1.3 with 3D support
• HDCP compliant
• Local HDMI output for in room display, AVR or cascading to another distribution amplifier
• IR control for remote locations

Key Features

  • Distribute HDMI signals reliably with this 1x5 HDBaseT distribution amplifier.
  • Extend HDMI up to 330ft using HDBaseT technology for a high-resolution video experience.
  • Enjoy wide compatibility with HDMI 1.4 and HDCP compliance for seamless integration.
  • Control devices remotely using bi-directional IR and RS232 pass-through features.
  • Perfect for presentations, broadcast, and home theaters needing reliable performance.
  • This video distribution amplifier offers easy setup, saving time and resources.

What's in the box:

  • PureLink HT-150 1x 5 HDMI to HDBaseT Distribution Amplifier
  • 2x HTR Rx Receiver
  • IR Emitter
  • IR Receiver
  • DC 12V 4.2A Power Supply Adapter
  • User's Manual
  • PureLink 2 Year Warranty
