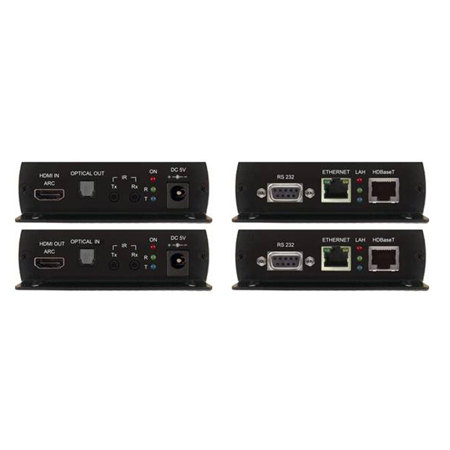

PureLink HDTools HDMI, RS-232, IR, ARC, Ethernet to CATx Ultra HD 4K Transmitter and Receiver Kit, Includes HTR Transmitter, HTR Receiver, 2x Power Adapter

SKU: PLHTRTXRX MFR: HTR TX/RX
Earn VIP Reward Points

Key Features

  • Extend your HDMI signal up to 330ft with this reliable transmitter and receiver kit.
  • Enjoy easy setup with this HDMI over CATx extender, perfect for home or office use.
  • Experience high-resolution video with 4K Ultra HD support at 30Hz for stunning clarity.
  • Control devices remotely using bi-directional IR and RS-232 pass-through features.
  • Ensure a stable connection with HDBaseT technology, reducing latency for seamless viewing.
  • Utilize Ethernet capabilities for data transfer alongside video and audio signals.
See More Product Details
Special Order?Estimated to Ship: 08/15/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$79.99

3 Year

$99.99

4 Year

$129.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

PureLink HDMI, RS-232, IR, ARC, Ethernet to CATx 4K Transmitter and Receiver Kit Specifications

  • Transmitter: Input type

    HDMI, 1 port
    IR, 1 port
    RS232, 1 port (bi-direction)
    Ethernet, 1 port (bi-direction)

  • Transmitter: Output type

    Toslink optical out, 1 port
    IR, 1 port
    CATx (HDBaseT), 1 port

  • Transmitter: Display Resolutions

    Supporting: VGA - WUXGA (up to 1920 x 1200 at 60Hz)
    480i - 1080p, Ultra HD (4K) at 30Hz

  • Transmitter: Max. Distance

    1920x1200 at 60Hz or Ultra HD (4K) at 30Hz: 330' / 100.59m

  • Transmitter: Connector Type

    DC Power Jack
    HDMI 19 Pin Female (Type A)
    RJ-45
    IR
    Serial
    Toslink

  • Transmitter: Conformations

    HDMI version 1.4 with HDCP

  • Transmitter: Power Rating

    DC 5V , 2A

  • Receiver: Input type

    CATx (HDBaseT), 1 port
    IR, 1 port
    Toslink optical in, 1 port

  • Receiver: Output type

    HDMI, 1 port
    IR, 1 port
    RS232, 1 port (bi-direction)
    Ethernet, 1 port (bi-direction)

  • Receiver: Display Resolutions

    Supporting: VGA - WUXGA (up to 1920 x 1200 at 60Hz)
    480i - 1080p, Ultra HD (4K) at 30Hz

  • Receiver: Max. Distance

    1920x1200 at 60Hz or Ultra HD (4K) at 30Hz: 330' / 100.59m

  • Receiver: Connector Type

    DC Power Jack
    HDMI 19 Pin Female (Type A)
    RJ-45
    IR
    Serial
    Toslink

  • Receiver: Conformations

    HDMI version 1.4 with HDCP

  • Receiver: Power Rating

    DC 5V , 2A

  • Operating: Temperature

    0 deg. to 55 deg. C (32 deg. to 131 deg. F)

  • Operating: Humidity

    10 - 80%

  • Operating: Altitude

    3000m / 9842.40' Max.

  • Transit: Temperature

    -25 deg. to 60 deg. C (-13 deg. to 140 deg. F)

  • Transit: Humidity

    5 - 95%

  • Transit: Altitude

    15000m / 49212' Max.

  • Storage: Temperature

    -20 deg. to 85 deg. C (-4 deg. to 185 deg. F)

  • Storage: Humidity

    5 - 95%

  • Storage: Altitude

    3000m / 9842.40' Max.

  • Reliability: MTBF

    90% at over 50000 hours aging test
    In compliance with LCD Monitor reliability test standard

  • Data transfer rate

    10.2 Gbps

  • I/O Signal Standard

    HDMI 1.4

  • RS-232 Connector

    Transmitter: DB9 Female
    Receiver: DB9 male

  • RS-232 Baud Rate

    Up to 115200 bps / Full Duplex

  • IR Carrier

    38KHz / +/-10deg / 5M / 2 Way

  • UTP Cable

    CAT5/5e/6/6a/7

  • Ethernet Connector

    RJ-45 with 2 LED

  • Ethernet Data Rate

    10 / 100Mbps

  • Ethernet Distance

    Max 330' / 100.59m

  • Power Consumption

    Min Total 5W, Max Total 10W

  • Dimensions (W x D x H)

    Receiver: 3.5 x 4.7 x 1.2" / 8.89 x 11.94 x 3.05cm
    Transmitter: 3.5 x 4.7 x 1.2" / 8.89 x 11.94 x 3.05cm

  • Weight

    Receiver: 0.62lbs / 0.28kg
    Transmitter: 0.57lbs / 0.26kg

About PureLink HDMI, RS-232, IR, ARC, Ethernet to CATx 4K Transmitter and Receiver Kit

Where professional-grade signal extension is paramount, the HDTools HDMI, RS-232, IR, ARC, Ethernet to CATx Ultra HD 4K Transmitter and Receiver Kit stands out as an advanced solution for high-quality audio and video transmission. This premium kit includes the HTR Transmitter and Receiver, along with two power adapters, designed to facilitate the long-distance extension of HDMI video and embedded audio with bi-directional control signals over a single CAT 5/6/7-type cable.

Leveraging the robust HDBaseT technology, the kit supports full 3D content and offers an impressive reach of up to 330ft (100m) at 4K2K (Ultra HD) resolution, ensuring that your visual and auditory experience remains uncompromised even over vast distances. The compact and low-profile design of the HTR makes it an efficient and unobtrusive addition to any limited space environment, such as behind a flat-panel display, in both commercial and residential settings.

The HDTools kit is not only durable but also reliable, maintaining HDCP compliance to ensure seamless communication between source and display. This compliance guarantees the integrity of high-bandwidth digital content protection, which is crucial for the transmission of high-definition signals. Furthermore, the kit supports Deep Color and full 3D, as well as embedded HD lossless audio formats, delivering an immersive audiovisual experience.

Additional features include an RS-232 and IR insertion port, which provides bidirectional control of AV devices, enhancing the functionality of this efficient system. The inclusion of ARC (Audio Return Channel) and Ethernet connectivity also expands the versatility of the kit, making it compatible with a wide array of devices and suitable for a multitude of applications.

Whether you're looking to extend your HDMI signals in a home theater setup or a professional AV installation, the HDTools HDMI, RS-232, IR, ARC, Ethernet to CATx Ultra HD 4K Transmitter and Receiver Kit offers a reliable, high-quality, and efficient solution for transmitting pristine video and audio signals across extended distances.

PureLink HDMI, RS-232, IR, ARC, Ethernet to CATx 4K Transmitter and Receiver Kit Features

  • Zero loss & Zero noise delivery of digital high definition video and audio signal using UTP connection, HTRdelivers HD signals over CAT5/6/7-type cables without loss or digital interference maintaining the clarity and colors
  • Noise cancellation and error correction logic enhances HDMI video and audio signals over long distance
  • Compact and Robust enclosure design allows for discreet installation behind a flat-panel display
  • Designed based on HDBaseT Technology, supporting support Deep Color and full 3D support plus DTS-HD and Dolby TrueHD over a single low cost CATx interface with up to 330ft (100m) at Ultra HD (4K) or 1920x1200 resolution
  • Uncompressed high definition video up to 4K2K at 30Hz at 48bits and 3D
  • Controls signals including bi-directional RS-232 and IR function
  • Bi-Directional RS232 interface commands and data can flow in both directions via RS232, allowing status requests and control of the destination unit
  • Max. Data Rate- 10.2 Gbps
  • HDCP (High-bandwidth Digital Content Protection) Support
  • HDMI version 1.4 Support
  • Audio transmission support LPCM 7.1 at 192KHz, Dolby TrueHD, DTS-HD MA
  • Support 10/100Mbps network, allow to connect the network TV or another internet devices
  • ARC (Audio Return Channel) Support to send audio data upsteam" to an A/V receiver or surround audio controller

Key Features

  • Extend your HDMI signal up to 330ft with this reliable transmitter and receiver kit.
  • Enjoy easy setup with this HDMI over CATx extender, perfect for home or office use.
  • Experience high-resolution video with 4K Ultra HD support at 30Hz for stunning clarity.
  • Control devices remotely using bi-directional IR and RS-232 pass-through features.
  • Ensure a stable connection with HDBaseT technology, reducing latency for seamless viewing.
  • Utilize Ethernet capabilities for data transfer alongside video and audio signals.

What's in the box:

  • PureLink HTR Transmitter Module
  • HTR Receiver Module
  • 2x Power Adapter
  • User Manual
  • PureLink 2 Year Warranty
