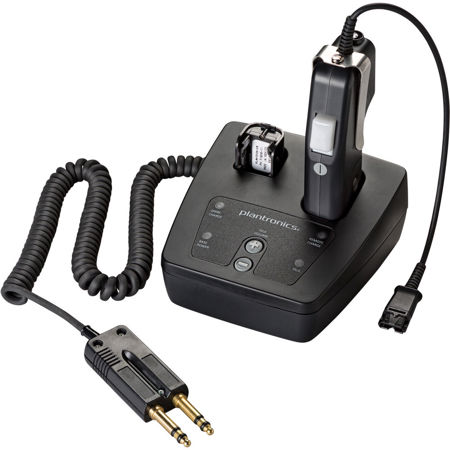

Plantronics CA12CDS-S Push to Talk Headset Adapter

The CA12CD-S is a cordless PTT for use in Public Safety Dispatch and Air Traffic Control applications. UPCS and DECT versions provide secure communications. Over 50 models available with various connector options. Connects to H-Type headsets with 4 pin Quick Disconnect (CD portfolio recommended).

The CA12CD-S is a cordless PTT (push-to-talk) headset adapter designed to provide wireless communications and PTT functionality for applications such as Public Safety Dispatch and Air Traffic Control. The CA12CD-S is supplied with the analog Console Interface Cable (PJ-7).

For digital applications, Model SSP 2468-01 (sold separately) can be installed. This USB-PTT Adapter Cable replaces the Console Interface Cable and provides a complete digital solution. The CA12CD-S uses digital processing. (DECT 6.0), and operates in the UPCS band (1.92 - 1.93 GHz ) in North America.

CA12CD-S Key Components

Base Unit
• Two charging wells (unit supplied with an extra battery)
• Sending and receiving sensitivity controls
• Status LEDs for Power, Battery Charging and PTT
• Coil cord (10 ft. extended) with PJ-7 connector
• Battery recharge time: 1 hour ( 90%);3 hours (100%)
• Operating temp. range: +4 Degree C (40 Degree F ) to +49 Degree C (110 Degree F )

Remote Unit:
• PTT button with momentary/locking selector
• On-Off button with LED
• Robust metal belt clip
• Receiving volume control
• 12 inch cable with Quick Disconnect
• Accepts all Plantronics "H" and "HW" Tops

Global Service and Support
Backed by Plantronics industry leading global service and support

Benifits
• Field-proven reliability; user selectable
• Two battery packs and two recharging wells: One for the remote unit and one for the spare battery - allow for 24/7 operation
• Extended talk time for all day/shift use
• Universal compatibility for carbon, electret, and dynamic microphone inputs
• Secure and private communications, HIPAA compliant
