PureLink PureInstall 1000 Series 0.5m (1.64') High Speed HDMI Cable Specifications

  • Plug material

    PVC

  • Contact material

    24-Carat gold plated

  • Shielding

    Yes

  • Connector 1

    HDMI Type A Male (19pin)

  • Connector 2

    HDMI Type A Male (19pin)

  • Cable Type

    Round cable

  • Cable Length

    0.5m / 1.64'

  • Inner conductor material

    High purity tinned plated OFC Copper

  • AWG

    28 AWG

  • Number of shielding

    3-layer

  • Shielding 1

    Aluminum foil (100% sealed)

  • Shielding 2

    Aluminum foil (100% sealed)

  • Shielding 3

    Braid (100% sealed)

  • Outer sheath material

    High flexible PVC

  • Outer sheath diameter

    7.3mm / 0.29"

  • Transmission modes

    Digital audio and video signals

  • Max. bandwidth

    340 MHz

  • Max. Transfer rate

    10.2 Gbit/s

  • Max. resolution

    4K (4096x2160)

  • Supported color spaces

    16/24 bit RGB/YUV, Deep Color, x.v.Color

  • Supported audio standards

    Audio-Return-Channel (ARC), Dolby Digital Plus, DolbyTrueHD, DTS-HD Master Audio, DVD Audio, SA-CD

  • Other supported standards

    HDMI Ethernet Channel (HEC), 3D, HDCP, CEC, 4K2K (2160i/p), FullHD (1080i/p), HD ready (720i/p), SDTV (480i/p)

  • Dimensions

    Connector 1: 43.5 x 20.3 x 11.4mm / 1.71 x 0.80 x 0.45"
    Connector 2: 43.5 x 20.3 x 11.4mm / 1.71 x 0.80 x 0.45"

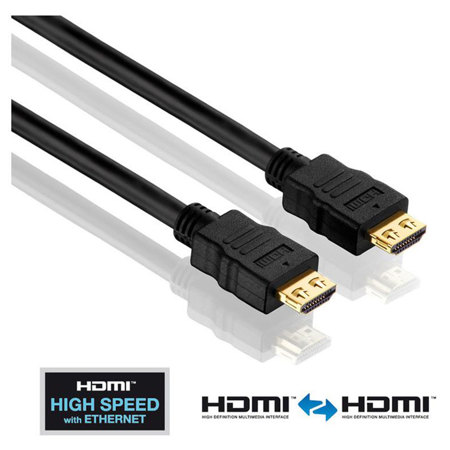

About PureLink PureInstall 1000 Series 0.5m (1.64') High Speed HDMI Cable

PureLink's PI-1000 Series Spring-Loaded HDMI Cables support all HD resolutions and formats including 1080p, 4K and 3D. Integrated Ethernet channel technology consolidates video, audio and data transmission into a single HDMI cable, combining optimum transmission quality with bi-directional networking at up to 100Mb/sec. The PI-1000 Series also feature PureLink's new Secure Lock System," which provides a secure and stable connection to HD devices despite heavy strain. The locking connectors have a hold on the HDMI port many times greater than a conventional HDMI cable, delivering up to 25 lbs. of retention force. When the connector is inserted into any HDMI device, the built-in lock automatically engages. To release the cable, simply pull back on the cable's spring-loaded connector cover to unlock and disengage the cable.

High Speed HDMI Cable with Ethernet Channel
Due to its high reliability, the PureInstall Series High Speed HDMI connection cable PI1000 is particularly suited for professional applications and installations. This series offers excellent value for money, without compromising the quality.

Additional Features
• High Speed HDMI for 3D and HDTV resolutions up to 4k (2160p)
• Integrated Ethernet channel for 100 MBit network transfer via HDMI
• High purity tinned plated OFC copper conductor and 3-layer shielding for optimized transmission quality
• Particularly qualified for professional applications and installations

What's in the box:

  • PureLink PureInstall 1000 Series 0.5m (1.64') High Speed HDMI Cable
  • PureLink 3 Year Parts and Labor Limited Warranty
