The PureInstall 1000 Series 1m High Speed HDMI Cable supports all HD resolutions including 1080p, 4K, and 3D video signals.
The Secure Lock System in the PureInstall 1000 Series HDMI Cable ensures a secure and stable connection to HD devices, even under heavy strain. It provides a hold on the HDMI port that is much stronger than a conventional HDMI cable.
The integrated Ethernet channel in the PureInstall 1000 Series HDMI Cable consolidates video, audio, and data transmission into a single HDMI cable. It offers bi-directional networking at speeds of up to 100Mb/sec.
The PureInstall 1000 Series HDMI Cable is particularly suitable for professional applications due to its high transmission quality, Secure Lock System, and integrated Ethernet channel. These features, combined with the high-purity tinned plated OFC copper conductor and 3-layer shielding, make it a reliable choice for professional installations.
To release the PureInstall 1000 Series HDMI Cable from the HDMI device, simply pull back on the cable's spring-loaded connector cover. This action will unlock and disengage the cable.
Review Summary
PVC
24-Carat gold plated
Yes
HDMI Type A Male (19pin)
HDMI Type A Male (19pin)
Round cable
1m / 3.28'
High purity tinned plated OFC Copper
28 AWG
3-layer
Aluminum foil (100% sealed)
Aluminum foil (100% sealed)
Braid (100% sealed)
High flexible PVC
7.3mm / 0.29"
Digital audio and video signals
340 MHz
10.2 Gbit/s
4K (4096x2160)
16/24 bit RGB/YUV, Deep Color, x.v.Color
Audio-Return-Channel (ARC), Dolby Digital Plus, DolbyTrueHD, DTS-HD Master Audio, DVD Audio, SA-CD
HDMI Ethernet Channel (HEC), 3D, HDCP, CEC, 4K2K (2160i/p), FullHD (1080i/p), HD ready (720i/p), SDTV (480i/p)
Connector 1: 43.5 x 20.3 x 11.4mm / 1.71 x 0.80 x 0.45"
Connector 2: 43.5 x 20.3 x 11.4mm / 1.71 x 0.80 x 0.45"
| Models | SKU: PLPI1000010 MFR: PI1000-010 $14.99 Special Order Generally ships in 7-14 days, subject to availability | SKU: SR4963 MFR: 4963 $14.99 Special Order Generally ships in 7-14 days, subject to availability | SKU: SR5086 MFR: 5086 $14.99 Special Order Generally ships in 7-14 days, subject to availability |
|---|---|---|---|
| Cable Length | 3.3' | 1.5' | 3.2' |
| Cable Type | HDMI to HDMI | HDMI to HDMI | HDMI to HDMI |
| Transmission Bandwidth | 10.2 Gbps | NA | - |

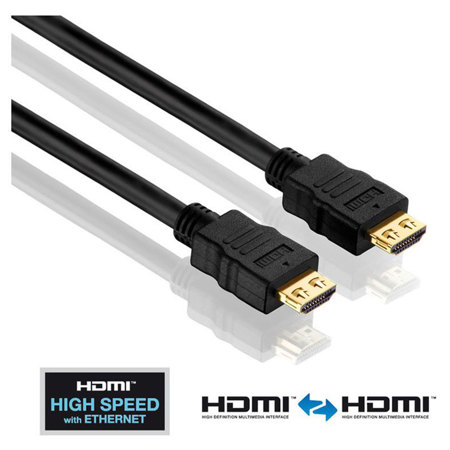

Enhance your multimedia experience with the PureInstall 1000 Series 1m (3.28') High Speed HDMI Cable by PureLink. Engineered to support all HD resolutions and formats, this cable is your solution for transmitting 1080p, 4K, and 3D video signals. Its integrated Ethernet channel technology consolidates video, audio, and data transmission into a single HDMI cable, offering optimum transmission quality with bi-directional networking at speeds of up to 100Mb/sec.
One of the standout features of this high-quality HDMI cable is PureLink's innovative Secure Lock System. This system ensures a secure and stable connection to HD devices, even under heavy strain. The locking connectors exert a retention force of up to 25 lbs., providing a hold on the HDMI port that far surpasses that of a conventional HDMI cable. When the connector is inserted into any HDMI device, the built-in lock automatically engages. To release the cable, simply pull back on the cable's spring-loaded connector cover to unlock and disengage the cable.
The PureInstall 1000 Series HDMI Cable also boasts an Ethernet Channel, enabling 100 MBit network transfer via HDMI. This feature, combined with the high-purity tinned plated OFC copper conductor and 3-layer shielding, optimizes transmission quality, making this cable a reliable choice for professional applications and installations.
Whether you're connecting TVs, computers, gaming consoles, or home theater systems, this durable and flexible HDMI cable ensures a smooth and seamless transmission of high-definition video and audio signals. Experience the difference in quality and performance with the PureInstall 1000 Series 1m (3.28') High Speed HDMI Cable.
