PureLink HDTools 6x2 Presentation Switcher with Built-In 2x2 Audio Matrix Switching

SKU: PLPS6200 MFR: PS-6200
Earn VIP Reward Points

Key Features

  • Seamlessly switch between six video sources with this versatile video switcher.
  • Enjoy high-quality video output up to 1080p with HDMI and VGA connectivity.
  • Enhance presentations with a built-in 2x2 audio matrix switching capability.
  • Control devices via RS-232 and LAN for integrated system management.
  • Easily update firmware through the USB service port for optimal performance.
  • Experience reliable connections with HDCP content protection support included.
See More Product Details
Special Order?Estimated to Ship: 08/15/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$129.99

3 Year

$179.99

4 Year

$215.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

PureLink HDTools 6x2 Presentation Switcher with Built-In 2x2 Audio Matrix Specifications

  • Communication: HDMI

    HDMI, HDCP, EDID, CEC

  • Communication: USB

    USB service port for firmware update

  • Communication: RS-232

    2-way device control and monitoring up to 115.2k baud rate with hardware and software handshaking

  • Communication: LAN

    TCP/IP

  • Video: Switcher

    Multi-format digital/analog source inputs, 6x2 matrix switcher

  • Video: Input Signal Types

    HDMI, DVI, VGA/Component, Composite, 3G/HD-SDI

  • Video: Output Signal Types

    HDMI, DVI, VGA

  • Video: Formats

    HDMI v1.3, DVI 1.0, HDCP content protection support, HD up to 1080i/1080p, computer up to UXGA/WUXGA, RGBHV, RGBS, RGSB, YPbPr, Y/C, NTSC, PAL

  • Video: I/P Resolution/HDMI/Progressive 1

    640x480 at 60Hz, 720x480 at 60Hz (480p), 720x576 at 50Hz (576p), 800x600 at 60Hz, 1024x768 at 60Hz, 1280x720 at 50Hz (720p50), 1280x720 at 60Hz (720p60), 1280x768 at 60Hz, 1280x800 at 60Hz, 1280x960 at 60Hz, 1280x1024 at 60Hz, 1360x768 at 60Hz, 1366x768 at 60Hz, 1400x1050 at 60Hz, 1440x900 at 60Hz

  • Video: I/P Resolution/HDMI/Progressive 1

    640x480 at 60Hz, 720x480 at 60Hz (480p), 720x576 at 50Hz (576p), 800x600 at 60Hz, 1024x768 at 60Hz, 1280x720 at 50Hz (720p50), 1280x720 at 60Hz (720p60), 1280x768 at 60Hz, 1280x800 at 60Hz, 1280x960 at 60Hz, 1280x1024 at 60Hz, 1360x768 at 60Hz, 1366x768 at 60Hz, 1400x1050 at 60Hz, 1440x900 at 60Hz

  • Video: Input Resolutions/HDMI/Interlaced

    720x480 at 30Hz (480i), 720x576 at 25Hz (576i), 1920x1080 at 25Hz (1080i25), 1920x1080 at 30Hz (1080i30), plus any other resolution allowed by HDMI up to 165MHz pixel clock

  • Video: Input Resolutions, VGA

    640x480 at 60Hz, 800x600 at 60Hz, 1024x768 at 60Hz, 1280x720 at 50Hz (720p50), 1280x720 at 60Hz (720p60), 1280x768 at 60Hz,1280x800 at 60Hz, 1280x960 at 60Hz, 1280x1024 at 60Hz, 1360x768 at 60Hz, 1366x768 at 60Hz, 1400x1050 at 60Hz, 1600x1200 at 60Hz, 1680x1050 at 60Hz, 1920x1080 at 60Hz (1080p60), 1920x1200 at 60Hz

  • Video: Input Resolutions, Component

    480i, 576i, 480p, 576p, 720p50, 720p60, 1080i25 (1125 lines), 1080i30, 1080p50 (1125 lines), 1080p60

  • Video: Input Resolutions, Composite

    480i, 576i

  • Video: Input Resolutions, 3G/HD-SDI 1

    SMPTE 425M (3G-SDI) 4:2:2 Colorspace: 1920x1080 at 50Hz (1080p50), 1920x1080 at 60Hz (1080p60); SMPTE 425M (3G-SDI) 4:4:4 Colorspace: 1280x720 at 50Hz (720p50), 1280x720 at 60Hz (720p60), 1920x1080 at 24Hz (1080p24), 1920x1080 at 25Hz (1080p25), 1920x1080 at 30Hz (1080p30), 1920x1080 at 50Hz (1080i50 or 1080sF25), 1920x1080 at 60Hz (1080i60 or 1080sF30); SMPTE 260M (HD-SDI): 1920x1035 at 60Hz

  • Video: Input Resolutions, 3G/HD-SDI 2

    SMPTE 295M (HD-SDI): 1920x1080 at 50Hz (1080i50); SMPTE 274M (HD-SDI): 1920x1080 at 24Hz (1080p24), 1920x1080 at 24Hz (1080sF24), 1920x1080 at 25Hz (1080p25), 1920x1080 at 30Hz (1080p30), 1920x1080 at 50Hz (1080i50 or 1080sF25), 1920x1080 at 60Hz (1080i60 or 1080sF30); SMPTE 296M (HD-SDI): 1280x720 at 50Hz (720p50), 1280x720 at 60Hz (720p60); SMPTE 259M-C (SD-SDI): 720x480 at 59.94 (NTSC), 720x576 at 50i (PAL)

  • Video: Output Resolutions

    Auto, 720x480p60, 720x576p50, 1280x720p50, 1280x720p60, 1920x1080i50, 1920x1080i60, 1920x1080p50, 1920x1080p60, 800x600 at 60Hz, 1024x768 at 60Hz, 1280x1024 at 60Hz, 1600x1200 at 60Hz, 1360 at 768 at 60Hz, 1366x768 at 60Hz, 1400x1050 at 60Hz, 1920x1200 at 60Hz

  • Audio: Switcher

    2x2 multi-channel source switcher

  • Audio: Input Signal Types

    HDMI, analog 2 -channel

  • Audio: Formats, Analog

    Stereo 2-channel

  • Audio: Formats, HDMI

    Dolby Digital, Dolby Digital EX, DTS, DTS-ES, DTS 96/24, up to 8ch PCM

  • Audio: Analog to Digital Conversion

    24-bit 48kHz

  • Audio: Output Signal Type and Format

    Stereo 2-channel

  • Audio: Digital to Analog Conversion

    24-bit 48kHz

  • Audio: Differential

    +/-4.0 V

  • Audio: Output Signal Types

    HDMI

  • Audio: Formats

    Dolby Digital, Dolby Digital EX, DTS, DTS-ES, DTS 96/24, up to 8ch PCM

About PureLink HDTools 6x2 Presentation Switcher with Built-In 2x2 Audio Matrix

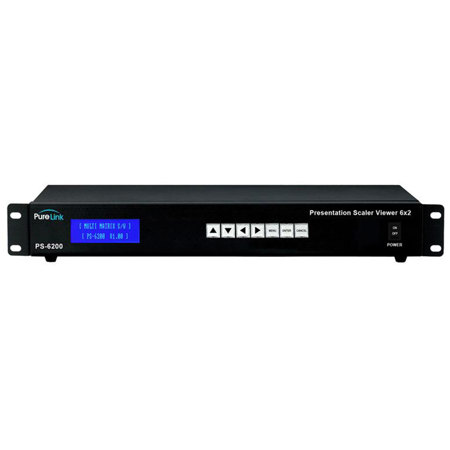

The PS-6200 is a complete, high definition A/V signal-routing solution for simple conferencing environments, including classrooms, boardrooms and video-conference rooms. This all-in-one presentation switcher combines multi-format inputs, video matrix routing and scaling, audio matrix routing, audio insertion/extraction capabilities, as well as analog to digital (or vice versa) signal conversion, all in a single RU space enclosure. Together with PureLink's industry-renown Seamless Switching Technology," the PS-6200 provides a simple, flexible and high-performance video-conferencing or presentation solution.

Hybrid Matrix Switcher

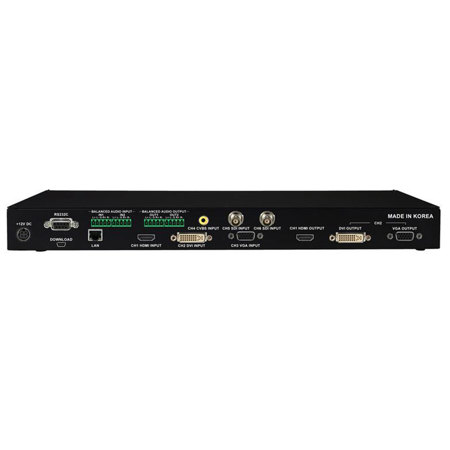

The PS-6200 delivers high-performance, seamless switching of numerous digital and analog input sources to up to three display devices such as projectors and flat-panel displays.A total of six inputs are available including HDMI, DVI (or 2nd HDMI source with use of adapter), VGA/Component, Composite Video and 2 x 3G/HD-SDI inputs. The built-in balanced/unbalanced audio matrix router may be combined with any of the six video inputs to form an HDMI signal with embedded audio. Available outputs include HDMI, DVI (or 2nd HDMI source with use of adapter) and VGA. The HDMI and DVI ports are independent, while the VGA port produces a mirrored output of the DVI output.

Auto-Scaling with Seamless Switching
The PS-6200 offers as a standard feature, built-in auto-scaling on all the outputs minimizing latency and providing seamless switching when multiple contrasting display devices are used. With the scaling feature built-in, the PS-6200 eliminates the cost of individual outboard scalers and ensures the best resolution and picture quality on each display, regardless of which sources are routed.

Flexible Audio-Routing Capability
The PS-6200 adds tremendous audio-routing flexibility to the control environment with the built-in 2x2 balanced/unbalanced audio matrix router. The two balanced/unbalanced audio inputs can be combined with any video source to produce a new HDMI output signal with embedded audio. The audio outputs can be configured among four audio sources 2 x HDMI sources and 2 x balanced/unbalanced audio sources. In addition, the audio from an HDMI source can be extracted from the digital stream and converted to an analog signal to feed a third-party processor, mixer or codec. The return signal feeds back through the analog input and can be embedded with any video source to produce a new HDMI output.

3G/HD-SDI Inputs
Directly route 3G/HD-SDI video signals from high-end, professional cameras and other SDI devices, eliminating need for an SDI to HDMI converter. The PS-6200 features 2 x 3G/HD-SDI inputs which support SD-SDI, HD-SDI and 3G-SDI signal formats up to 1080p at 60hz.Auto-EDID (EDID Library & Emulation)

PureLink's legendary EDID/HDCP Management System provides EDID capture and storage, automatically assessing the format and resolution information of connected devices. Auto-EDID ensures consistent handshakes between sources, allowing proper and reliable output of content for display.

Key Features

  • Seamlessly switch between six video sources with this versatile video switcher.
  • Enjoy high-quality video output up to 1080p with HDMI and VGA connectivity.
  • Enhance presentations with a built-in 2x2 audio matrix switching capability.
  • Control devices via RS-232 and LAN for integrated system management.
  • Easily update firmware through the USB service port for optimal performance.
  • Experience reliable connections with HDCP content protection support included.

What's in the box:

  • PureLink HDTools 6x2 Presentation Switcher
  • PureLink 3 Year Parts and Labor Limited Warranty
