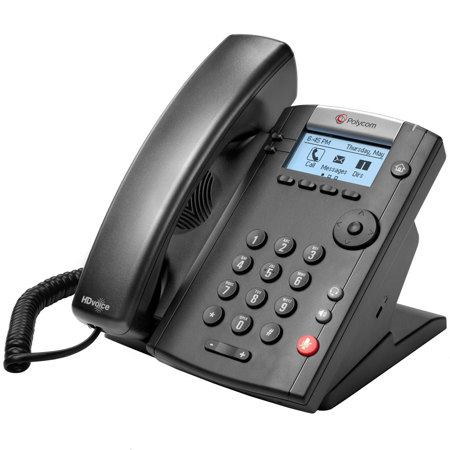

Polycom VVX 201 Entry-Level 2-Line IP Phone with HD Voice and 2 Ethernet Ports, Power Over Ethernet

SKU: PLY220044525

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Polycom VVX 201 Specifications

  • User interface functions

    2.5" Graphical Backlit LCD (132 x 64) resolution
    Voicemail support
    Reversible desk stand/wall mount
    Unicode UTF-8 character support
    Multilingual user interface including Chinese, Danish, Dutch, English (Canada/US/UK), French, German, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Russian, Slovenian, Spanish and Swedish

  • Function keys

    4 context-sensitive "soft" keys
    2 line keys with bi-color (red/green) LED "Home" feature key
    4-way navigation key cluster with center "Select" key
    2 volume control keys
    Dedicated hold key
    Dedicated headset key
    Dedicated hands-free speakerphone key
    Dedicated microphone mute key

  • Audio functions

    Polycom HD Voice technology delivers life-like voice quality for each audio path handset, the hands-free speakerphone and the optional headset
    Polycom Acoustic Clarity technology providing full-duplex conversations, acoustic echo cancellation and background noise suppression
    Type 1 compliant (IEEE 1329 full duplex)
    Frequency response - 150 Hz - 7 kHz for hands-free speakerphone, handset and optional headset mode
    Codecs: G.711 (A-law and Mu-law), G.729AB, G.722 (HD Voice), iLBC

  • Audio functions (Cont.)

    Individual volume settings with visual feedback for each audio path
    Voice activity detection
    Comfort noise generation
    DTMF tone generation (RFC 2833 and in-band)
    Low-delay audio packet transmission
    Adaptive jitter buffers
    Packet loss concealment

  • Headset and handset compatibility

    Dedicated RJ-9 headset port
    Hearing aid compatibility to ITU-T P.370 and TIA 504A standards
    Compliant with ADA Section 508 Subpart B 1194.23 (all)
    Hearing aid compatible (HAC) handset for magnetic coupling to hearing aids
    Compatible with commercially-available TTY adapter equipment

  • Call handling functions

    2 SIP identity (registration)/2 programmable line keys
    Shared call/bridged line appearance
    Flexible line appearance (one or two line keys can be assigned for each registration)
    Distinctive incoming call treatment/call waiting
    Call timer and call waiting
    Call transfer, hold, divert (forward), pickup
    Called, calling, connected party information

  • Call handling functions (Cont.)

    Local three-way audio conferencing
    One-touch speed dial, redial
    Remote missed call notification
    Do not disturb function
    Electronic hook switch capable
    Local configurable digit map/dial plan

  • Open application platform

    Supports Polycom Apps SDK and API for third- party business and personal applications
    Bundled with Polycom UC Software: Corporate Directory Access using LDAP, Visual Conference Management

  • Network and provisioning

    SIP Protocol Support
    SDP
    IETF SIP (RFC 3261 and companion RFCs)
    Two-port Ethernet switch
    10/100Base-TX across LAN and PC Ports
    Manual or dynamic host configuration protocol (DHCP) network setup
    Time and date synchronization using SNTP
    FTP/FTPS/TFTP/HTTP/HTTPS server based central provisioning for mass deployments
    Provisioning and call server redundancy supported
    QoS Support - IEEE 802.1p/Q tagging (VLAN), Layer 3 TOS and Diffserv/DSCP

  • Network and provisioning (Cont.)

    VLAN-CDP, DHCP VLAN discovery, LLDP-MED for VLAN discovery
    Network Address Translation (NAT)-support for static configuration and "Keep-Alive" SIP signaling
    RTCP and RTP support
    Event logging
    Syslog
    Hardware diagnostics
    Status and statistics reporting
    TCP
    UDP
    DNS-SRV
    IPv4 and IPv6

  • Security

    802.1X Authentication and EAPOL
    Media encryption via SRTP
    Transport Layer Security (TLS)
    Encrypted configuration files
    Digest authentication
    Password login
    Support for URL syntax with password for boot server address
    HTTPS secure provisioning
    Support for signed software executables

  • Power

    Built-in auto sensing IEEE 802.3af Power over
    Ethernet (Class 2)
    External Universal AC Adapter (optional, 12V 6W DC)

  • Approvals

    FCC Part 15 (CFR 47) Class B
    ICES-003 Class B
    EN55022 Class B
    CISPR22 Class B
    VCCI Class B
    EN55024
    EN61000-3-2; EN61000-3-3
    NZ Telepermit
    UAE TRA
    Australia RCM
    ROHS compliant
    ICASA
    CITC
    ANATEL
    Customs Union
    KCC
    TAA
    CCC

  • Safety

    UL 60950-1
    CE Mark
    CAN/CSA C22.2 No 60950-1
    EN 60950-1
    IEC 60950-1
    AS/NZS 60950-1

  • Operating Temperature

    0 to 40 deg. C (32 to 104 deg. F)

  • Relative humidity

    5% to 95%, noncondensing

  • Storage temperature

    -40 to 70 deg. C (-40 to 158 deg. F)

  • Dimensions (WxHxD)

    6.5 x 6 x 7" (16.51 x 15.24 x 17.78cm)

  • Weight

    1.8 lbs (0.82kg)

About Polycom VVX 201

Entry-level Two-line IP phone with HD sound quality and 2 Ethernet ports
The Polycom VVX 201 is a simple, yet reliable, two-line IP phone, with two 10/100Ethernet ports, that delivers enterprise grade sound quality. The Polycom VVX 201phone is a stylish, cost effective telephony solution, ideal for retail environments, call centers or shared/common areas, such as lobbies, hallways and break rooms or anywhere needing simple and reliable connectivity.

Unsurpassed voice quality and clarity
The VVX 201 features full duplex Type 1-compliant speakerphone with legendary Polycom HD Voice and Polycom Acoustic Fence technology that delivers superior sound quality and enables noise- and echo-free conversations that are as natural as being there.

Simplicity and ease-of-use
The Polycom VVX 201 comes with a familiar, intuitive user interface with multi-language support that you can use without having to think about the "how to". The phone features a backlit LCD for improved readability.

Best-in-class deployment and administration
The VVX 201 phone is engineered to make installation, configuration and upgrades as simple and efficient as possible. An enterprise-grade, Web- based configuration method allows administrators to easily provision and maintain a large number of phones throughout an organization. Additionally, the extensive administrative feature set included ensures that hosted service providers have the latest technologies to integrate the VVX 201 seamlessly into their existing telephony environment.

Broad and robust interoperability
The VVX 201 is designed for interoperability and is certified to interoperate with the industry's broadest range of PBX systems and SIP call control platforms.

Polycom VVX 201 Features

  • Use the VVX 201 is a basic two line desk phone for call centers, retail environments and for shared/common-areas
  • Make more efficient and productive calls with Polycom's HD Voice technology
  • Deploy the VVX 201 in hosted or premise-based environments
  • Reduce deployment and maintenance costs-the Polycom Zero Touch Provisioning and web-based configuration tool makes the VVX 201 simple to deploy, easy to administer, upgrade and maintain
  • Leverage previous IT infrastructure investments-deploy VVX 201 business media phones on your existing network without needing to upgrade your call control platform
  • 2 line
  • 132x64 monochrome backlit LCD
  • Polycom HD Voice up to 7 kHz on all audio paths (speaker, handset, headset)
  • 2 x Ethernet 10/100
  • Hard Keys: 12-key dial pad, home, speaker, mute, headset, volume
  • 4-way navigation cluster with center "select" key

What's in the box:

  • Polycom VVX 201 Console
  • Handset with Handset Cord
  • Network (LAN) Cable
  • Quick Start Guide
  • Polycom 1 Year Warranty
