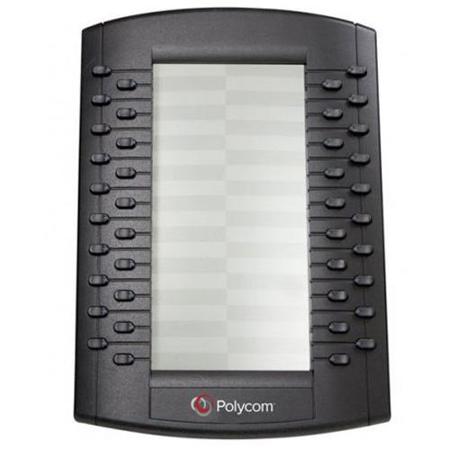

Polycom 40 Button Paper Label Expansion Module for VVX IP Phones

SKU: PLY220046325

This item is no longer available.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Polycom Expansion Module Specifications

  • Compatibility

    Polycom VVX 300/310
    Polycom VVX 400/410
    Polycom VVX 500
    Polycom VVX 600 phones

  • Communication

    2x auxiliary ports over (RJ-11) (Communication with host phone and/or other modules)

  • Expandability

    Up to three VVX Expansion Modules can be attached to any VVX phone

  • Supported Functions

    Additional line registrations (up to 34 total)
    Shared call appearance, bridged line appearance (Key system emulation)
    Call transfer
    Busy lamp field
    Speed dial
    Fully programmable line appearances

  • Power

    Provided by Polycom VVX host phone
    Host phone powering options: IEEE 802.3 (af/at) PoE or using a compatible external AC adapter
    Powering starts automatically upon auxiliary port connection
    No additional power source is required

  • Approvals

    CE Mark
    VCCI
    C-Tick

  • Safety

    UL 60950-1
    CAN/CSA-C22.2 No. 60950-1
    EN 60950-1
    IEC 60950-1
    AS/NZS 60950-1

  • Operating Temperature

    0 to 40 deg. C (32 to 104 deg. F)

  • Relative Humidity

    5% to 95%, noncondensing

  • Storage Temperature

    -40 to 70 deg. C (-40 to 158 deg. F)

  • Dimensions (WxHxD)

    5 x 5 x 6.5" (12.70 x 12.70 x 16.51cm)

  • Weight

    1 lbs (0.45kg)

About Polycom Expansion Module

Turn your Polycom VVX business media phone into a cost-effective paper label attendant console
The Polycom VVX Expansion Module is a cost-effective paper label solution for telephone attendants, receptionists, administrative staff and other dispatchers who manage multiple simultaneous telephone calls on a daily basis.

The Polycom VVX Expansion Module extends the functionality of Polycom VVX business media phones with multi-functional line keys that can be set up as line registrations, call appearances, speed-dials, direct station select or busy lamp field keys. The VVX Expansion Module seamlessly matches the look and feel of VVX business media phones.

Polycom VVX business media phones can be fully equipped with up to three VVX Expansion Modules. With VVX Expansion Modules, users can reduce the number of lost customer calls, shorten transaction times and increase the accuracy of call routing by promptly accepting, accurately screening, efficiently dispatching and effortlessly monitoring calls.

The VVX Expansion Module is a true plug-and-play device that requires no separate set-up as power and signaling are provided by the host VVX business media phone. The VVX Expansion Module provides an easy transition from traditional PBX features and functionality into the world of Voice over IP with familiar paper directory cards and intuitive LED visualization that matches the VVX business media phone.

Like all Polycom VoIP products, the VVX Expansion Module is standards-based and fully inter-operable with Polycom partners' IP telephony server solutions. With the greatest breadth and depth of integrated video, voice and web solutions, only Polycom delivers the ultimate communications experience.

Increase productivity
The VVX Expansion Module provides cost-effective call handling capabilities using directory cards that simplifies monitoring/dispatching of a high number of static contacts.

Ease of use
Bi-color LEDs offer flexible and intuitive call visualization matching VVX phones.

Extended compatibility
Supports all VVX business media phones for maximum flexibility.

Flexible paper directory
Quickly generate and print PDF template containing line key assignments.

Leverage previous IT infrastructure investment
Get the most out of your Polycom VVX business media phones by turning them into cost-effective attendant solutions.

Polycom Expansion Module Features

  • 40 multifunctional line keys configurable as line registration, call appearance, speed dial, DSS, or BLF
  • Dual-color (red or green) illuminated LEDs for line status information

What's in the box:

  • Polycom VVX Expansion Module Console
  • VVX Expansion Module Desk Stand
  • 2x Attachment Bracket with Hand Screws
  • Auxiliary Cable
  • Quick Start Guide
  • Polycom 1 Year Warranty
