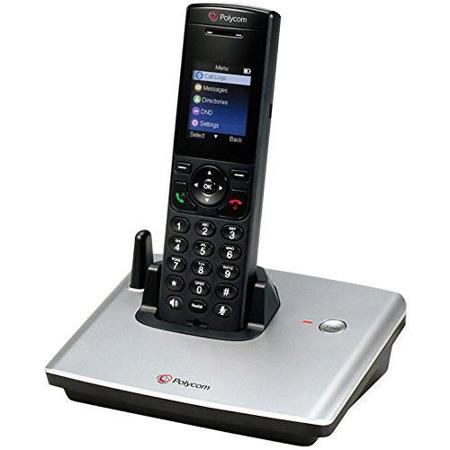

Polycom VVX D60 Wireless Handset with Base Station

SKU: PLY220178211

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Polycom VVX D60 + Base Station Specifications

  • Open Application Platform

    Bundled with Polycom UC Software: Corporate directory access using LDAP
    Visual conference management

  • Network and Provisioning

    Provisioning via VVX
    SIP protocol support
    SDP

  • Security

    CDP Support
    802.1X authentication and EAPOL
    Media encryption via SRTP
    Transport layer security
    Encrypted configuration files
    Digest authentication
    Password login
    Support for URL syntax with password for boot server address
    HTTPS secure provisioning
    Support for signed software executables

  • IETF SIP (RFC 3261 and companion RFCs)

    Two-port Ethernet switch
    - 10/100Base-TX across LAN and PC port
    - Conforms to IEEE802.3-2005 (Clause 40) for physical media attachment
    - Conforms to IEEE802.3-2002 (Clause 28) for link partner auto-negotiation
    Manual or dynamic host configuration protocol DHCP network setup
    Time and date synchronization using SNTP FTP/TFTP/HTTP/HTTPS server-based central provisioning for mass deployments
    Provisioning and call server redundancy supported

  • IETF SIP (RFC 3261&companion RFCs)(Cont)

    QoS support - IEEE 802.1p/Q tagging (VLAN), Layer 3 TOS and DHCP
    LLDP-MED for VLAN discovery
    Network address translation - support for static configuration and "Keep-Alive" SIP signaling
    RTCP and RTP support
    Event logging
    Syslog
    Status and statistics reporting
    IPv4
    TCP
    UDP
    DNS-SRV

  • Frequency

    1920-1930 MHz
    1880-1900 MHz
    1880-1895 MHz
    1896-1903 MHz
    1910-1920 MHz
    1921-1930 MHz
    1786-1791 MHz

  • Range

    Indoor: 165' (50m)
    Outdoor: 980' (300m)

  • Handset User Interface Functions

    2 in color TFT LCD display (resolution 178 x 220 pixel)
    Voicemail support
    Unicode UTF-8 character support. Multilingual user interface including Chinese, Danish, Dutch, English (Canada/ US/UK), French, German, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Russian, Slovenian, Spanish and Swedish

  • Handset Audio Functions

    Full-duplex conversations, acoustic echo cancellation and background noise suppression
    Frequency response - 150Hz - 7kHz for handset, optional headset and handsfree speakerphone modes
    Narrowband Codecs: G.711 (A-law and -law), G.729AB
    Wideband Codec: G.722
    Individual volume settings with visual feedback for each audio path

  • Handset Audio Functions (Cont)

    Voice activity detection
    Comfort noise generation
    DTMF tone generation (RFC2833, in-band and SIP INFO)
    Low-delay audio packet transmission
    Adaptive jitter buffers
    Packet loss concealment

  • Handset Call Handling Functions

    Multiple Lines Support for Handsets (5 lines per HS)
    Up to 4 simultaneous calls
    Up to 5 handsets
    Shared call/bridged line appearance
    Maximum controlled by configuration
    Distinctive incoming call treatment/ call waiting
    Call timer and call waiting
    Call transfer, hold, divert (forward), pickup

  • Handset Call Handling Functions (Cont)

    Called, calling, connected party information
    Local 3-way audio conferencing
    1-touch speed dial, redial
    Remote missed call notification
    Do not disturb function
    Intercom

  • Headset and Handset Compatibility

    Dedicated 2.5mm headset port
    External 2.5mm to 3.5mm headset adapter
    Compliant with ADA Section 508 Subpart B1194.23 (all)
    Hearing aid compatible handset for magnetic coupling to hearing aids

  • Handset Power

    External universal AC adapter (5V 6W DC)

  • Handset Battery

    1 Ni-MH 800 -mAh (2.4V) AAA battery (rechargeable)
    10 hours talk time
    100 hours standby time

  • Approvals

    FCC
    IC RSS
    CE
    Israel COMM
    Japan Radio Law Certificate
    AU/NZ RCM
    Hong Kong HKCA
    Singapore IDA TS CT-CTS
    Taiwan NCC
    ROHS compliant
    Safety
    UL 60950-1
    CE Mark
    CAN/CSA C22.2 No 60950-1
    EN 60950-1
    IEC 60950-1
    AS/NZS 60950.1

  • Operating Temperature

    0 to 40 deg. C (32 to 104 deg. F)

  • Relative Humidity

    25% to 90%, noncondensing

  • Storage Temperature

    -40 to +65 deg. C (-40 to 149 deg. F)

  • Dimensions (WxHxD)

    Base station size: 6.3 x 2.75 x 5.0" (16.00 x 6.99 x 12.70cm)
    Handset size: 2 x 6.7 x 1" (5.08 x 17.02 x 2.54cm)
    Handset charger size: 3.75 x 2.20 x 3.35" (9.53 x 5.59 x 8.51cm)

  • Weight

    Base station weight: 0.574 lbs (0.26kg)
    Handset: 0.272 lbs (0.12kg)
    Handset charger: 0.16 lbs (0.07kg)

About Polycom VVX D60 + Base Station

The ideal wireless companion for your immediate workspace
The Polycom VVX D60 Wireless Handset complements the Polycom VVX series of Business Media Phones by offering the convenience of a cordless solution as a simple add-on device. The VVX D60 Wireless Handset offers the same SIP features as the VVX desk phones and is an ideal solution for small businesses, retail environments or administrative personnel that need to collaborate while moving throughout the day.

Maximize productivity
Whether deployed in a business environment that requires workers to move around or in a small office with no dedicated receptionist, the VVX D60 Wireless Handset helps teams communicate with ease, whether talking to customers or with each other. To maximize productivity, it is possible to take a call on your VVX D60 and when you return to your desk, push that call onto your VVX Business Media Phone.

Familiar user experience
Users familiar with VVX business media phones will also feel comfortable using the VVX D60 Wireless Handset as they both leverage the same robust feature set and user experience of the Polycom UC Software. This commitment to commonality across devices means the VVX D60 will increase end-user satisfaction, shorten training time and reduce the number of support calls for IT staff and service providers.

Stress-free installation and setup
The VVX D60 Wireless Handset offers a straightforward installation experience. With the same device provisioning and management process as the VVX desk phones, the VVX D60 is the easiest cordless solution to deploy.

Market-leading open standards interoperability
Designed for enhanced interoperability, the VVX D60 Wireless Handset leverages and complements your existing IT investments. With the broadest call server interoperability in the industry, the Polycom VVX D60 Wireless Handset can become a flexible and future-proof addition to any organization's unified communications strategy.

Flexible solution
The Polycom VVX D60 Wireless Handset can be paired to any VVX Business Media Phone models deployed in a wide range of Open SIP environments. Pairing can be performed automatically via direct connection (base station to VVX), base station detection on local LAN or manually via MAC address or IP address.

Polycom VVX D60 + Base Station Features

  • Combines the freedom of wireless communication with business features usually reserved for desk bound users
  • Work space mobility- The freedom to take your conversation wherever you go
  • Easy to use, easy to navigate with the high-resolution color display and simple navigation buttons
  • Best-in-class deployment, configuration and administration through a web-based configuration tool
  • Leverage previous IT infrastructure investments-deploy VVX D60 business media phones on your existing network without needing to upgrade your call control platform

What's in the box:

  • Polycom VVX D60 Wireless Handset
  • VVX D60 Wireless Base Station
  • Network (LAN) Cable
  • Wireless Handset Belt Clip
  • Wireless Handset 2.5mm to 3.5mm Headset Adapter
  • Battery Pack
  • Quick Start Guide
  • Polycom 1 Year Warranty
