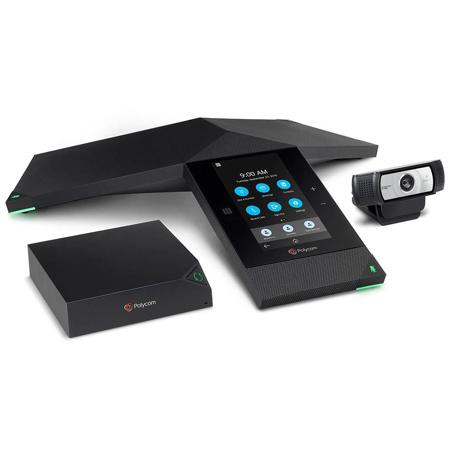

Polycom RealPresence Trio 8800 IP Conference Phone Collaboration Kit (Skype Compatible), Includes Trio Visual+ Video Conferencing Accessory and Logitech C930e Webcam

SKU: PLY720025519

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Polycom Collaboration Kit Specifications

Conference Phone

Conference Phone

Jump to...
  • User interface functions

    Gesture-based, multitouch-capable capacitive touch screen
    5-inch color LCD (720 x 1280 pixel), 9:16 aspect ratio
    On-screen virtual keyboard
    1x USB 2.0 Type A-compliant port USB battery charging BC1.2 compliant (requires full Class 4 power input on LAN IN for operation)
    1x USB 2.0 Micro-B device port for use as USB audio device
    Integrated Bluetooth 4.0 and NFC
    3 multicolored capacitive-touch mute indicators
    Unicode UTF-8-character support

  • User interface functions (Cont.)

    User interface localized in Arabic, Chinese, Danish, Dutch, English (Canada/ US/UK), French, German, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Russian, Slovenian, Spanish and Swedish

  • Loudspeaker Frequency

    100-22,000 Hz

  • Loudspeaker Volume

    92 dB at 0.5-m peak volume

  • Supported codecs

    G.711 (A-law and Mu-law)
    G.722, G.729, SILK

  • Audio functions

    3 cardioid microphones
    6-m/20-foot microphone pickup range
    Polycom Siren 7 (16 kbps)
    Polycom Acoustic Clarity technology provides full-duplex conversations, acoustic echo cancellation and background noise suppression - Type 1 compliant (IEEE 1329 full duplex)
    Polycom NoiseBlock
    Voice activity detection
    Comfort noise generation
    DTMF tone generation (RFC 2833 and in-band)
    Bluetooth device pairing for wideband speech and multimedia streaming (HFP/AD2P)

  • Call handling functions

    Up to 3 lines (max. one Skype for Business)
    Shared call/bridged line appearance
    Distinctive incoming call treatment/call waiting
    Call timer and call waiting
    Call transfer, hold, divert (forward), pickup
    Called, calling, connected-party information
    One-touch speed dial and meeting join
    Do-not-disturb function
    Local configurable digit map/dial plan
    Corporate directory access using LDAP
    Visual conference management

  • Ethernet switch

    Two-port gigabit Ethernet switch:
    10/100/1000Base-TX across LAN and
    2nd port:
    2nd port supports IEEE 802.3af PSE

  • Wi-Fi network connectivity

    2.4 - 2.4835 GHz (802.11b, 802.11g)
    5.15 - 5.825 GHz (802.11a may vary by country)
    2.4 and 5 GHz (802.11n)

  • QoS support

    IEEE 802.1p/Q tagging (VLAN), layer 3 TOS and DSCP
    WMM (Wi-Fi multimedia)

  • Network and provisioning

    Open SIP and Skype for Business/ Microsoft Office 365/Lync 2013 SDP
    IETF SIP (RFC 3261 and companion RFCs)
    Manual or dynamic host configuration protocol (DHCP) network setup
    Time and date synchronization using SNTP
    FTP/TFTP/HTTP/HTTPS server-based central provisioning
    RealPresence Resource Manager (v. 10.1 or above) based provisioning

  • Network and provisioning (Cont.)

    Polycom Zero Touch Provisioning
    Provisioning and call server redundancy support
    VLAN - CDP, DHCP VLAN discovery
    LLDP-MED for VLAN discovery

  • Security

    802.1X authentication and EAPOL
    Media encryption via SRTP
    Transport layer security (TLS) v 1.2
    Encrypted configuration files
    Digest authentication
    Password login
    Support for URL syntax with password for boot server address
    HTTPS secure provisioning
    Support for signed software executables
    Wi-Fi encryption: WEP, WPA-Personal, WPA2-Personal, WPA2-Enterprise with 802.1X (EAP-TLS, PEAP-MSCHAPv2)

  • Power

    LAN IN: Built-in auto-sensing IEEE 802.3at. PoE Device (Class 4) (requires full Class 4 power input on LAN IN for operation). Backward compatibility with IEEE 802.3af.
    LAN OUT: Built-in auto-sensing IEEE 802.3af power sourcing equipment (requires full Class 4 power input on LAN IN for operation)

  • Approvals

    Japan MIC/VCCI Class B
    FCC Part 15 (CFR 47) Class B
    ICES-003 Class B
    EN55022 Class B
    CISPR22 Class B
    VCCI Class B
    EN55024
    EN61000-3-2; EN61000-3-3
    NZ Telepermit
    Australia A&C Tick
    ROHS compliant
    19471-0715

  • Radio

    US:
    FCC Part 15.247
    FCC Part 15.407
    FCC Part 15.225
    Canada:
    RSS 247 Issue 1
    EU:
    ETSI EN 300 328 v1.9.1
    ETSI EN 301 893 v1.7.1
    ETSI EN 300 330
    ETSI EN 301 489-3
    ETSI EN 301 489-17
    Japan:
    Japan Item (19)
    Japan Item (19)-3
    Japan Item (19)-3-2
    Australia:
    AS/NZ4268

  • Safety

    UL 60950-1
    CE Mark
    CAN/CSA-C22.2 No. 60950-1-03
    EN 60950-1
    IEC 60950-1
    AS/NZS 60950-1

  • Environmental conditions

    Operating Temperature: 0 to 40 deg. C (32 to 104 deg. F)
    Storage Temperature: -20 to 70 deg. C (-4 to 158 deg. F)
    Relative Humidity: 5% to 95% (non-condensing)

Video Conferencing Accessory

Jump to...
  • Power

    IEEE 802.3af Power over Ethernet (built-in)

  • Connectivity

    Ethernet 10/100/1000 Base-T
    3.5mm stereo line level output
    2 USB 2.0 host ports, Type-A
    1x HDMI 1.4 out

  • Network and provisioning

    IPv4 support
    Open standards-based audio networking over Ethernet
    Secure provisioning and software upgrades via Polycom Trio 8x00

  • Video/content standards and protocols

    H.264 AVC, H.264 high profile
    BFCP for content sharing
    Skype for Business X-264UC
    Skype for Business RDP and VbSS for application and desktop content (receive only)

  • Video input

    1x USB 2.0 for UVC 1.5-compliant compression webcam
    Up to 1080p 30fps

  • Supported cameras

    Polycom EagleEye Mini
    Polycom EagleEye IV USB (for use-Polycom Trio 8800 only)
    Logitech C930e

  • Video output (HDMI)

    Up to 1080p, 30fps, 24bbp
    Basic Consumer Electronics Controls (CEC) for HDMI monitor controls

  • Video resolution

    Up to 1080p, 30 fps from 1024 Kbps

  • Content resolution

    Content receive with up to 1080p, 30fps

  • Skype for Business profile

    Local content presentation (not in-call):
    Apple AirPlay or Miracast compatible devices
    Skype for Business Desktop Client (Remote Desktop Protocol-RDP)
    Polycom People+Content (PPCIP) via USB or IP
    Polycom Pano App via IP

    In-call content sharing:
    Skype for Business Desktop Client (Remote Desktop Protocol-RDP)

  • SIP profile: Local content presentation

    Not in-call:
    Apple AirPlay and Miracast compatible devices (available when paired with Polycom Trio 8800 only)
    Polycom People+Content (PPCIP) via USB
    Polycom Pano App via IP

  • SIP profile: In-call content sharing

    Polycom People+Content (PPCIP) via USB or IP
    Polycom Pano App via IP
    Polycom RealPresence Desktop (Windows and Mac)
    Polycom RealPresence Mobile for Tablets

  • SIP profile: Security

    Encrypted connectivity with Polycom Trio 8x00
    Media encryption via SRTP
    Transport Layer Security (TLS)

  • Environmental conditions

    Operating temperature: 0 to 40 deg. C (32 to 104 deg. F)
    Relative humidity: +10-90% (non-condensing)
    Storage temperature: -40 to 185 deg. F (-40 to 85 deg. C)

  • Regulatory certifications

    Electrical safety:
    UL 60950-1
    CE Mark
    CAN/CSA C22.2 No. 60950-1
    EN60950-1
    IEC60950-1
    AS/NZS 60950-1
    EMC:
    FCC Part 15 (CFR47) Class A
    ICES-003 Class A
    EN55022 Class A
    CISPR22 Class A
    VCCI Class A EN55024

  • General

    Pairing button and status indicator
    Security cable lock slot

  • Compatibility

    All UVC apps
    H.264 for Skype for Business

  • System Requirements

    Windows 7, Windows 8, or Windows 10
    macOS X 10.7 or higher
    Chrome OS Version 29.0.1547.70 and higher
    2GB RAM or more
    Hard drive space for recorded videos
    One USB 2.0 port

  • Certifications

    Certified for Skype for Business
    Optimized for Microsoft
    Lync
    Skype Certified
    Cisco compatible
    WebEx

General

Jump to...
  • Dimensions

    Conference Phone (LxWxH): 38.3 x 7.5 x 33.2cm (15.08 x 2.95 x 13.07")
    Camera without Clip (HxWxD): 29 x 94 x 24mm (1.14 x 3.70 x 0.94")
    Camera with Clip (HxWxD): 43.3 x 94 x 71mm (1.70 x 3.70 x 2.80")
    Video Conferencing Accessory (LxWxH): 4.5 x 4.5 x 1.2" (11.43 x 11.43 x 3.05cm)

  • Weight

    Conference Phone: 0.95kg (2.09 lbs)
    Camera with Clip and Cable: 162g (5.71 oz)

About Polycom Collaboration Kit

-- RealPresence Trio 8800 IP Conference Phone --
Polycom Trio 8800 is the conference phone reimagined for larger conference rooms. Marrying our world-class audio conferencing experience, with business-class video and content, the Polycom Trio connects to the leading unified communications platforms of today and tomorrow.

Legendary Voice Quality
Polycom Trio is a revolutionary conference phone offering stunning room-filling sound for the best conference experience - ever. With a 20-foot pickup range and advanced audio technology such as enhanced Polycom HD Voice and the patented Polycom NoiseBlock, conversation flows naturally and you hear every word clearly. What does this mean to you? It means increased productivity. A cheap conference phone may appear to be a savings at first - but the fatigue caused by audio that seems "good enough" is costly in the long run. Straining to hear the other side, echo, distracting background noise all result in wasted time and there is quite a bit of truth in the old adage "time is money."

The sleek and sophisticated, award-winning design of Polycom Trio makes conferencing simple. A 5-inch color touch display and intuitive, familiar Skype for Business interface minimizes training. And with Microsoft Exchange integration, scheduled meetings can get started with one touch of the join button resulting in fewer mistakes and quick starts for every meeting. Feel free to use your personal device wirelessly via Bluetooth/NFC, IP or wired via USB and experience exceptional sound quality when using web-based or cloud conferencing services.

Broadest Interoperability
Working together with Microsoft, we have designed the Polycom Trio 8800 to maximize the power of Skype for Business and Office 365 Cloud PBX powered by Skype for Business online. Polycom Trio conference phones are the only Skype for Business certified conference phones on the market. Even though Skype for Business may be your primary platform, if you choose to add others, Polycom Trio can do that - no problem.

Affordable Business-Class Content Sharing and Video Conferencing
The Polycom Trio 8800 conference phone also offers the optional ability to present and share content and add video conferencing. Add the Polycom Trio Visual+ and either a USB fixed web camera or the Polycom EagleEye MSR 12x optical PTZ camera and now you have a powerful and affordable audio, content and video conferencing solution.

-- Polycom Trio Visual+ Video Conferencing Accessory --

Turn your audio calls into productive, collaborative meetings
The Polycom Trio conference phone's award-winning design, the first of its kind, allows you to easily add the optional Polycom Trio Visual+ accessory and a USB compression camera transforming your audio conference into a powerful video experience. The Polycom Trio Visual+ accessory supports high definition 1080p video allowing you to see your audience and experience their emotions right as they happen.

Bring your own device
Polycom Trio is an ideal communication solution for every meeting. What if you want to share your ideas and concepts visually, from your PC, tablet or smartphone? With Polycom Trio Visual+, you can easily share high-definition content such as presentations, spreadsheets, photos and even multimedia videos with everyone in the room. Simply connect your Apple AirPlay or Miracast certified devices for wireless flexibility or share content with remote participants via Bluetooth/NFC, IP or USB connectivity.

Simple deployment
Polycom Trio Visual+ is quick to deploy with simple plug-and-play connections: HDMI for a display, supported USB for camera and Power-over-Ethernet (PoE) for electricity. That's it! With its small footprint, it can easily be mounted out of view.

-- Logitech C930e Webcam --

A Webcam That Means Business
Experience video calls that are the next best thing to being there in person. Sophisticated technology in the Logitech C930e Webcam delivers clear video and sound in virtually any environment, even low-light conditions. With 1080p resolution, H.264 video compression and a wide 90-degree field of view, C930e offers advanced webcam capabilities for superior video conferencing.

Great Video In Any Environment
Show your best side on every video call, wherever you are. The C930e Webcam features 90-degree field of view, pan, tilt and 4x digital zoom, allowing you to adjust the frame to fit your environment. RightLight 2 Technology and a precision lens provide sharp video even in low-light conditions.

Certified For Business
C930e is certified compatible with Skype for Business and Cisco Jabber and offers enhanced integration with BlueJeans, Broadsoft, LifeSize Cloud, Vidyo and Zoom.

High Quality, Low Bandwidth
Raise meeting productivity with remarkably clear video at all times - even when bandwidth is limited. Optimized for Skype for Business, the C930e Webcam supports H.264 with Scalable Video Coding and UVC 1.5 encoding to minimize its dependence on computer and network resources.

HD 1080p video quality at 30 frames-per-second
Brings life-like HD video to conference calls, enabling expressions, non-verbal cues and movements to be seen clearly.

Widest-ever business webcam field-of-view
Enjoy an extended view - 90 degrees - perfect for presenting using a whiteboard or doing demos.

H.264 UVC 1.5 with Scalable Video Coding
Frees up PC bandwidth by putting video processing within the camera, adjusting dynamically to the available bitstream. The result is a smoother video stream in applications like Skype for Business.

Logitech RightLight 2 technology and autofocus
Webcam intelligently adjusts to improve visual quality in low light at multiple distances.

4x digital zoom in Full HD
4x zoom at 1080p provides the highest level of detail for your calls, visuals and presentations.

Pan, tilt and zoom option
Pan, tilt and zoom within the 90-degree field-of view scene for focused viewing during desktop video conferences.

Professional-grade Certifications
Certified for Skype for Business, Cisco compatible and enhanced integration with Logitech Collaboration Program (LCP) members integrated experience with most business-grade video conferencing platforms.

Premium glass lens
Enjoy razor-sharp images even when showing documents up close, a whiteboard drawing or a product demo.

Convenient privacy shutter
Easy lens enclosure for added privacy and security.

Plug-and-play USB connectivity
Easily connects to a PC or Mac with no additional software required.

Multiple mounting options
Freedom to mount the camera wherever it works best - LCD screen, notebook or tabletop - by using the attached clip or the tripod embedded thread.

Polycom Collaboration Kit Features

  • RealPresence Trio 8800 IP Conference Phone:
  • Legendary voice quality for the clearest and richest audio experience in a conference phone
  • Accelerate user adoption by pairing your own portable devices (BYOD) via USB, Bluetooth/NFC or IP
  • Skype for Business interface is familiar, minimizes mistakes and speeds connection with "one touch join"
  • Conveniently manage and provision using Polycom RealPresence Resource Manager
  • Hybrid registration support for connecting to multiple platforms simultaneously. Register up to 3 separate lines
  • Easily adapts to content and business-grade video conferencing solution
  • Trio Visual+ Video Conferencing Accessory:
  • Enhance the experience of the clearest and richest audio of Polycom Trio by adding visual collaboration
  • Improve team collaboration by easily sharing ideas, concepts and reactions
  • Easy plug-and-play for immediate deployment
  • Priced right for mass adoption
  • Logitech C930e Webcam:
  • Full HD 1080p video calling (up to 1920 x 1080 pixels
  • 720p HD video calling (up to 1280 x 720 pixels) with supported clients
  • H.264 video compression
  • 90 deg. field of view
  • Zoom to 4x in 1080p
  • Rightlight 2 Technology for clarity in various lighting environments, even low light
  • Optional Camera Settings application for control of pan, tilt and zoom
  • Autofocus
  • ZEISS glass lens
  • External privacy shutter
  • 2 omni-directional mics
  • Hi-speed USB 2.0 certified (USB 3.0 ready)
  • Tripod-ready universal clip fits laptops, LCD, or CRT monitors

What's in the box:

  • Polycom RealPresence Trio 8800 IP Conference Phone (Skype Compatible)
  • Trio Visual+ Video Conferencing Accessory
  • Logitech C930e Webcam
  • 7.6m (24.93') CAT5e Network Cable
  • 2m (6.56') USB 2.0 Cable
  • Cable Wrap
  • Tactile Overlay for Improved Accessibility
  • Setup Sheet
  • 15' Ethernet Cable
  • Mounting Plate
  • 6' HDMI Cable
  • Quick Start Guide
  • Polycom 1 Year Warranty
  • Logitech 3 Year Warranty
