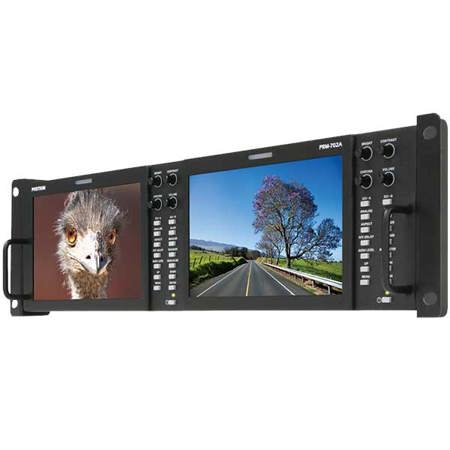

Postium PRM-702A 800x480 7" Multi Format Dual LCD Rack Monitor, 3RU
See all POSTIUM items

POSTIUM PRM-702A 800x480 7" Multi Format Dual LCD Rack Monitor, 3RU

SKU: PMPRM702A

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

POSTIUM PRM-702A Specifications

Number of Screens

Number of Screens

Jump to...

  • Screens

    2

Input (1 Screen)

Jump to...

  • SDI

    1x BNC (HD/SD)

  • Analog

    3x BNC(YPbPr/CVBS/S-Video/RGB)

Output (1 Screen)

Jump to...

  • SDI

    1x BNC (HD/SD)

  • Analog

    SDI Channel / Composite Outputs

Audio In/Out

Jump to...

  • Phone Jack Out

    1x Headphone Out(Stereo)

  • 2x Speaker

    2x 1W (Mono)

Input Signal

Jump to...

  • Analog

    Composite (1.0Vpp with Sync)
    S-Video (1.0Vpp Ywith Sync, 0.268Vpp [c])
    Component (1.0Vpp Ywith Sync, 0.7Vpp [Pb,Pr])
    RGB (1.0Vpp Gwith Sync, 0.7Vpp [B,R])

  • HD-SDI

    1.485 Gbps

  • SD-SDI

    270 Mbps

SDI Input Signal Formats

Jump to...

  • SMPTE- 274M / 292M

    1080i (60/59.94/50)
    1080P(30/29.97/25/24/24sF/23.98/23.98sF)

  • SMPTE-296M

    720P (50/59.94/60)

  • SMPTE-260M

    1035i (60/59.94)

  • SMPTE-125M

    480i (59.94)

  • ITU-R.BT.656

    576i (50)

  • 2K Format

    2048 x 1080 (23.98psf/24psf/23.98p/24p)

CVBS Input

Jump to...

  • CVBS

    NTSC (525 / 59.94i), PAL (625/50i), PAL-M (525 / 59.94i)

S-Video Input

Jump to...

  • S-Video

    NTSC (525 / 59.94i), PAL (625/50i), PAL-M (525 / 59.94i)

LCD

Jump to...

  • Size

    7" (702A)

  • Resolution

    800 x 480 (15 : 9)

  • Pixel Pitch (H x V)

    0.246 x 0.246mm

  • Color

    16.7M (True), 24bit

  • Viewing Angle

    H: 140 degrees
    V: 140 degrees

  • Luminance of White

    350cd/sq. m (center)

  • Contrast

    700:1

Power

Jump to...

  • Power

    12V DC. 4.2A

  • Power Consumption (Approx.)

    20 Watts

Environmental

Jump to...

  • Operating Temperature

    32 to 104 Degree F (0 to 40 Degree C)

  • Storage Temperature

    -22 to 122 Degree F (-30 to 50 Degree)

About POSTIUM PRM-702A

The Postium PRM Series are designed for rack mount HD/SD broadcast and motion picture production monitoring applications. The PRM Series encompasses seven models in 7 x 2" 1RU, 4 x 4.3" 2RU, 2 x 5" & 3 x 5" 2RU, 2 x 7" 3RU, 2 x 9" 4RU (2 models), and 2 x 10" 4RU display sizes. and offers capable and affordable HD - HDR monitoring solutions across a wide range of screen sizes.

POSTIUM PRM-702A Features

  • Multi-Format Support (480i, 576i, 720P, 1080i, 1080P, 1080Psf, 2K)
  • 2x HD/SD-SDI inputs (Auto Detecting/Switching) with Active Loop Through
  • Dual High Definition 7-inch (800 x480) 16.7MegaPixel Wide Screen
  • 12-bit Signal Processor
  • Varieties of Analog Input (Composite, S-Video, YPbPr, RGB)
  • 3RU (standard EIA 19 inch rack)
  • Assignable Remote Control
  • AFD
  • H/V Delay mode
  • Analog Stereo Audio Out (Phone Jack)
  • Internal Left & Right Speaker (2 x 1W)
  • Blue Only & Monochrome
  • Markers & Safety Areas including user defined Markers
  • Source ID Function (User Defined in OSD Function)
  • Embedded Audio Level Meter (16ch) - Vertical/Horizontal
  • Timecode Display (VITC & LTC)
  • Selectable Full & Small Size, WaveForm (Y Cb Cr)/Vector Scope (SDI only)

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Dual 7" LCD rack monitor displays with 800x480 resolution for clear video monitoring.
  • Multi-format compatibility ensures seamless integration with your existing video equipment.
  • This 3RU rack monitor is ideal for broadcast, production, and post-production environments.
  • Enjoy precise color reproduction with 16.7M colors on this professional production monitor.
  • HD/SD-SDI inputs/outputs offer flexible connectivity for various video sources and workflows.
  • Wide viewing angles (H: 140, V: 140) provide comfortable monitoring from different positions.

What's in the box:

  • PRM-702A 800x480 7 " Multi Format Dual LCD Rack Monitor (3RU)
  • DC Power Adapter
  • Postium 1 Year Limited Warranty for LCD Panel & 2 Year for Parts
