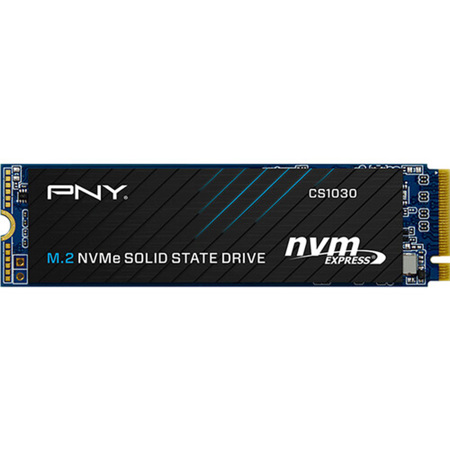

PNY Technologies CS1030 2TB NVMe PCIe Gen 3.0 x4 M.2 Internal SSD

SKU: PNM28CS132RB

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

What is the advantage of upgrading to a NVMe SSD from a SATA-based SSD?

Upgrading to a NVMe SSD from a SATA-based SSD can significantly enhance your computer's performance. You can experience faster boot times, quicker application launches, and overall improved system performance. NVMe SSDs can provide speeds up to four times faster than SATA-based SSDs.

What is the capacity of the CS1030 2TB NVMe PCIe Gen 3.0 x4 M.2 Internal SSD?

The CS1030 2TB NVMe PCIe Gen 3.0 x4 M.2 Internal SSD has a large capacity of 2TB. This allows for ample storage space for large volumes of data.

What is the form factor of the CS1030 2TB NVMe PCIe Gen 3.0 x4 M.2 Internal SSD?

The CS1030 2TB NVMe PCIe Gen 3.0 x4 M.2 Internal SSD is compatible with the M.2 form factor. This is a compact and thin design that allows for easy installation in a wide range of devices.

What is non-volatile NAND technology?

Non-volatile NAND technology is a type of flash memory that does not require power to retain data. This makes the CS1030 2TB NVMe SSD up to 30 times more robust than traditional hard drives, increasing its durability and reliability.

What is the data transfer speed of the CS1030 2TB NVMe PCIe Gen 3.0 x4 M.2 Internal SSD?

The CS1030 2TB NVMe PCIe Gen 3.0 x4 M.2 Internal SSD supports the high-speed PCIe Gen 3.0 x4 interface, which allows for rapid data transfer and optimal performance.

Shopper : Why Did You Choose This?Jaren N : Recommended via pc-parts-pickerHENRY H : my techy buddy is helping my build a computer and picked this out for me. i think probably bc it was super marked down, but i bet he also thinks its quality hardwareROSS L : It was the cheapest option.I-PING C : price

Reviews about this item

Review Summary

2021-08-09T09:44:56

Rated 5 out of 5

Fast and affordable

Affordable and fast, what more can you ask?

JEOFFREY S.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

PNY Technologies CS1030 Specifications

General

General

Jump to...
  • Drive Capacity

    2TB

  • NAND Components

    3D Flash Memory

  • Interface

    PCIe Gen3 x4

  • Form Factor

    M.2 2280

Performance

Jump to...
  • Max Sequential

    Read: 2100 MB/s
    Write: 1900 MB/s

  • PCIe Power Management

    APST, ASPM, L1.2

Environmental

Jump to...
  • Operating Temperature

    32 to 158 Degree F (0 to 70 Degree C)

  • Storage Temperature

    -40 to 185 Degree F (-40 to 85 Degree C)

  • Certifications

    BSMI, CE, FCC, Kcc, REACH, RoHS, VCCI, as per Manufacturer

Reliability/Security

Jump to...
  • Mean Time Between Failures (MTBF)

    2,000,000 Hours

  • Error Correction Code

    LDPC (Low Density Parity Check) ECC Algorithm

  • Product Health Monitoring

    Self-Monitoring, Analysis and Reporting Technology (S.M.A.R.T)

  • Full End-to-End Data path protection

    Supported

Compatibility

Jump to...
  • RAID (0/1)

    Supported

  • NVMe

    NVMe 1.3

  • Performance Optimization

    TRIM (requires OS support)

Physical

Jump to...
  • Dimensions (L x W x H)

    0.86 x 3.14 x 0.15" (22 x 80 x 4mm)

  • Weight

    0.2 oz (6.6g)

  • UPC Code

    751492641645

About PNY Technologies CS1030

FEATURED REVIEWS

Fast and affordable

By JEOFFREY S.

Affordable and fast, what more can you ask?

Bring a new level of speed and performance to your computer with the CS1030 2TB NVMe PCIe Gen 3.0 x4 M.2 Internal SSD. This high-performance SSD is an ideal choice for those looking to upgrade from a SATA-based SSD or traditional hard drive in an NVMe-enabled desktop or laptop. The CS1030 drive is engineered to leverage the superior bandwidth of the NVMe interface, delivering faster boot times, quicker application launches, and enhanced overall system performance.

Experience the power of NVMe technology, which allows you to boot up, power down, and load applications up to four times faster than with SATA-based SSDs. With a generous 2TB capacity, this SSD provides ample space for storing large volumes of data, making it a perfect solution for users who need to store and access large files quickly and efficiently.

The CS1030 2TB NVMe SSD is designed with non-volatile NAND technology, making it up to 30 times more robust than traditional hard drives. This feature, combined with the absence of moving parts, contributes to the SSD's high durability and reliability, making it less likely to fail and ensuring your data is always safe and accessible.

This SSD is compatible with the M.2 form factor, a compact and thin design that allows for easy installation in a wide range of devices. It also supports the high-speed PCIe Gen 3.0 x4 interface, ensuring rapid data transfer and optimal performance.

Upgrade to the CS1030 2TB NVMe PCIe Gen 3.0 x4 M.2 Internal SSD and experience a significant boost in your computer's performance and storage capabilities.

PNY Technologies CS1030 Features

  • Sequential Read of 2100 MB/s and Write of 1900 MB/s
  • Faster boot up and quicker application launch
  • Better overall system performance
  • Highly durable, with not moving parts and can withstand extreme environments
  • Low power consumption, cool and quiet operation

Key Features

  • High-performance 2TB NVMe PCIe Gen 3.0 x4 M.2 Internal SSD for enhanced computer storage and speed
  • Upgrades system performance with faster boot times and quicker application launches
  • Utilizes NVMe technology for speeds up to four times faster than SATA-based SSDs
  • Features non-volatile NAND technology, making it up to 30 times more robust than HDDs
  • Compatible with M.2 form factor for easy installation in a wide range of devices
  • Supports high-speed PCIe Gen 3.0 x4 interface for rapid data transfer

What's in the box:

  • PNY Technologies CS1030 2TB PCIe Gen3 x4 M.2 2280 NVMe Internal SSD
  • PNY Technologies 5 Year Limited Warranty
