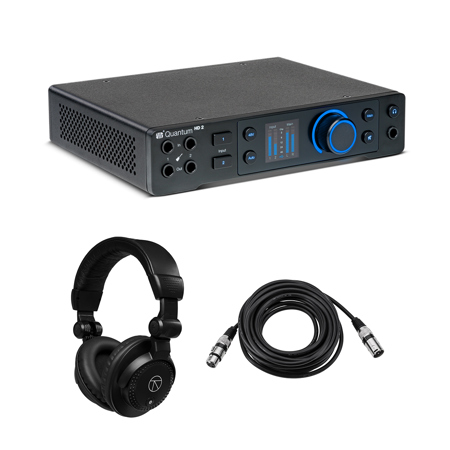

PreSonus Quantum HD 2 20x24 32-Bit USB-C Audio Interface, Bundle with TAPH100 Monitor Headphones and 25' Microphone Cable

SKU: PR277770050B MFR: 2777700501 B
Earn VIP Reward Points

PACKAGE INCLUDES:

  • PreSonus Quantum HD 2 20x24 32-Bit USB-C Audio Interface
    PreSonus Quantum HD 2 20x24 32-Bit USB-C Audio Interface
  • +
  • Turnstile Audio TAPH100 Closed-Back Studio Monitor Headphones
    Turnstile Audio TAPH100 Closed-Back Studio Monitor Headphones
  • +
  • H&A Value Series XLR M to F Professional Microphone Cable - 25'
    H&A Value Series XLR M to F Professional Microphone Cable - 25'
  • +
  • Show more

Key Features

  • Capture pristine audio with this 20x24 USB-C audio interface, perfect for studio recording.
  • Experience ultra-low latency for seamless tracking & mixing with custom, stable audio drivers.
  • Get crystal-clear sound with MAX-HD mic preamps, offering +75 dB gain for accurate recordings.
  • Shape your sound using re-amp outputs, experiment with amps & pedals directly from your DAW.
  • Monitor levels easily with the high-resolution display, ensuring optimal audio quality always.
  • Create perfect monitor mixes using loopback audio, ideal for streaming and podcasting setups.
See More Product Details
FREE 2-Day Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$89.99

3 Year

$109.99

5 Year

$179.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

PreSonus Quantum HD 2 Specifications

AD / DA Conversion

AD / DA Conversion

Jump to...
  • Sample Rates

    44.1, 48, 88.2, 96, 176.4, 192 kHz

  • Bit Depth

    32-bit

Instrument Inputs

Jump to...
  • Connector Type

    1/4" Female

  • Gain Range

    -7 dB to +68 dB

  • Maximum Input Level

    +21 dBu (unbalanced, minimum gain)

  • Frequency Response

    20 Hz to 20 kHz, +/- 0.1 dB (unity gain, reference 1 kHz)

  • Dynamic Range

    121 dB (A-weighted, typical)

  • THD + N

    0.0003% (1 kHz, minimum gain)

  • Input Impedance

    1M Ohms

Microphone Inputs

Jump to...
  • Connector Type

    Combo-style, XLR / TRS (digital control, +75 dB mic range)

  • Maximum Input Level

    +18 dBu (balanced, minimum gain)

  • Gain Range

    0 to +75 dB

  • Frequency Response

    20 Hz to 20 kHz, +/- 0.1 dB (unity gain, reference 1 kHz)

  • Dynamic Range

    121 dB (A-weighted, typical)

  • THD + N

    0.002% (1 kHz, minimum gain)

  • EIN

    -130 dBu (max gain, 150 Ohms, 20 kHz BW, A-weighted)

  • Input Impedance

    1,600 Ohms

Line Inputs

Jump to...
  • Connector Type

    Combo-style, XLR / TRS

  • Maximum Input Level

    +18 dBu (balanced, minimum gain)

  • Frequency Response

    20 Hz to 20 kHz, +/- 0.1 dB (unity gain, reference 1 kHz)

  • Dynamic Range

    121 dB (A-weighted, typical)

  • THD + N

    0.001% (1 kHz, minimum gain)

  • Input Impedance

    10K Ohms

  • Digital Trim

    -12 to +12 dB

Main Outputs

Jump to...
  • Connector Type

    1/4" Female, TRS

  • Maximum Output Level

    +18 dBu

  • Frequency Response

    20 Hz to 20 kHz, +/- 0.2 dB (unity gain, reference 1 kHz)

  • Dynamic Range

    125 dB (A-weighted, typical)

  • THD + N

    0.001% (1 kHz, +4 dBu)

  • Output Impedance

    51 Ohms

  • Trim Range

    -Infinite dB to 0 dB

Line Outputs

Jump to...
  • Connector Type

    1/4" Female, TRS

  • Maximum Output Level

    +18 dBu

  • Frequency Response

    20 Hz to 20 kHz, +/- 0.2 dB (unity gain, reference 1 kHz)

  • Dynamic Range

    125 dB (A-weighted, typical)

  • THD + N

    0.001% (1 kHz, +4 dBu)

  • Output Impedance

    51 Ohms

Re-Amp Outputs

Jump to...
  • Connector Type

    1/4' Female, TS

  • Maximum Output Level

    +4 dBu (Balanced)

  • Frequency Response

    20 Hz to 20 kHz, +/- 0.3 dB (unity gain, reference 1 kHz)

  • Dynamic Range

    117 dB (A-weighted)

  • THD + N

    0.001% (1 kHz, +4 dBu)

  • Output Impedance

    100 Ohms

  • Trim Range

    -Infinite dB to 0 dB

Headphone Outputs

Jump to...
  • Connector Type

    1/4" Female, TRS (1-4)

  • Maximum Output Level

    11 dBu (50 Ohms)

  • Frequency Range

    20 Hz to 20 kHz, +/- 0.3 dB (unity gain, reference 1 kHz)

  • Dynamic Range

    118 dB (A-weighted)

  • THD + N

    0.001% (1 kHz)

  • Output Impedance

    33 Ohms

  • Trim Range

    -Infinite dB to 0 dB

S/PDIF I/O

Jump to...
  • Connector Type

    Phono RCA (1 in , 1 out)

  • Supported Sample Rates (kHz)

    44.1, 48, 88.2, 96

ADAT I/O

Jump to...
  • Connector Type

    Optical TOSLINK (2 in, 2 out)

  • Format

    ADAT Digital Lightpipe with S/MUX II
    16 channels at 44.1/48 kHz
    8 channels at 88.2/96 kHz

MIDI I/O

Jump to...
  • Connector Type

    5-pin DIN (off DB-9)

Synchronization Sources

Jump to...
  • Sources

    Internal, ADAT, S/PDIF, and Word Clock (HD 8 only)

  • Connector Type

    DC Connector

  • Configuration

    External, Universal

  • Power Input

    12V DC, 2A

Physical

Jump to...
  • Color

    Black

  • Dimensions (L x W x H)

    8.5 x 7.5 x 1.9" (21.59 x 19.05 x 4.83cm)

  • Weight

    2.9 lbs (1.32kg)

  • UPC Codes

    192223275706, 192223075498, 673454012150, 192223227576

About PreSonus Quantum HD 2

20 x 24, 32-bit / 192 kHz Recording Interface with Studio One Pro Perpetual License Included
Power your project with the Quantum HD 2 - the recording interface for project studios and full band recordings.

The culmination of 30 years of innovation, the Quantum HD 2 features two newly redesigned high-definition MAX-HD mic preamps with +75 dB of gain - making it ideally suited for today's most popular microphones. Guitarists and bassists will love the two instrument inputs, which were co-developed with Fender engineers. An Auto Gain button sets the perfect gain level for your microphones and instruments. You also get two re-amp outputs so you can send audio from your DAW to your guitar or bass amp and re-record it to experiment with different amps, pedals, and mic placements. An illuminated push encoder provides flexible control over gain level and output volume, making it great for self-produced recording.

All-New Max-HD MIC Preamps
The Quantum HD 2 features two newly designed mic preamps with +75 dB of gain. Our high-definition MAX-HD preamps are transparent, low-noise, and digitally-controlled analog, making them ideally suited to today's most popular microphones.

Fender Co-Developed Inputs and RE-AMP Outputs
Built by the best ears in the business, guitarists and bassists will love the two instrument inputs, co-developed with Fender engineers - industry experts who designed them specifically for guitar and bass. Re-amp audio directly from your DAW and use amps and effects to sculpt your sounds. Send audio from your DAW to your guitar or bass amp and re-record it to experiment with different amps, pedals, and mic placements.

Studio One Pro 7 DAW Software Included.
Your hardware registration includes a perpetual License to Studio One Pro.

Auto Gain
An Auto Gain button sets the perfect gain level for your microphones and instruments, so you get the perfect take every time.

PreSonus Quantum HD 2 Features

  • High Performance Signal Flow - Custom low-latency drivers and low-noise converters
  • All-New MAX-HD Mic Preamps - The culmination of 30 years of innovation, our rigorously redesigned preamps feature digitally-controlled analog with +75 dB of gain range
  • Co-Developed with Fender - Front-facing instrument inputs engineered for guitarists by industry-leading experts
  • Professional Recording Software Included - Studio One Pro License
  • Auto Gain - Dial in recording-ready levels, hassle-free
  • Re-Amp Outputs - Re-amp audio directly from your DAW and experiment with amps and effects to sculpt your sounds
  • Universal Control App - Full control and metering from your mobile device, desktop, or tablet

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Capture pristine audio with this 20x24 USB-C audio interface, perfect for studio recording.
  • Experience ultra-low latency for seamless tracking & mixing with custom, stable audio drivers.
  • Get crystal-clear sound with MAX-HD mic preamps, offering +75 dB gain for accurate recordings.
  • Shape your sound using re-amp outputs, experiment with amps & pedals directly from your DAW.
  • Monitor levels easily with the high-resolution display, ensuring optimal audio quality always.
  • Create perfect monitor mixes using loopback audio, ideal for streaming and podcasting setups.

What's in the box:

  • PreSonus Quantum HD 2 20x24 32-Bit USB-C Audio Interface
  • Studio One+ Professional Recording Software (1 Year)
  • PreSonus 1 Year Limited Warranty
  • Bundle Includes:
  • Turnstile Audio TAPH100 Closed-Back Studio Monitor Headphones
  • H&A Value Series 25' XLR M to F Professional Microphone Cable
