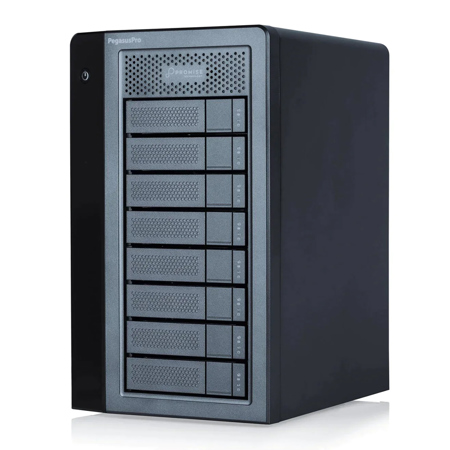

Promise Technology PegasusPro R8 8-Bay Thunderbolt 3 RAID Array SSD 30.72TB

SKU: PR8XXX10BS04 MFR: PPR8XXX10BS04U
Earn VIP Reward Points

Key Features

  • Experience high-speed data access with Thunderbolt 3, perfect for video editing and large file transfers.
  • Ensure data redundancy with RAID 0/1/5/6/10/50/60, safeguarding your valuable files against drive failure.
  • Benefit from reliable performance with an Intel i5 CPU and 32GB RAM for seamless multitasking.
  • Enjoy cost-effective storage with flexible HDD and SSD options, tailored to your capacity needs.
  • Easily integrate this 8-bay RAID array into your existing network via dual Gigabit and quad 10GbE ports.
  • Utilize the high capacity of up to 144TB for extensive media libraries or large project archives.
See More Product Details
Temporarily On Backorder?Expected Availability: 10/2025Request assistance or get notified
Free Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Promise Technology PegasusPro R8 8-Bay Thunderbolt 3 RAID Array Specifications

General

General

Jump to...
  • Available Capacities

    32TB (8x4TB)
    15.36TB (8x1.92TB)
    30.72TB (16x3.84TB)
    144TB (8x18TB)

  • Available Drive Types

    HDD, SSD

  • Form Factor

    Tower

  • CPU

    Intel CPU i5-8500.3.0 GHz. 9MB Cache.65W.6 Cores

  • Memory

    32GB

  • Memory Slot

    2x Long-DIMM DDR4

  • Drive Bays

    8x 3.5" (88.9mm)

  • Drive Support

    3.5" & 2.5" (88.9mm & 63.5mm) SATA 6Gb/s HDD/SSD

  • Hot Swap

    Yes

  • RAID Level

    RAID 0, 1, 5, 6, 10, 50, 60

Interface

Jump to...
  • Thunderbolt Port

    Yes

  • Gigabit (RJ45)

    2

  • LAN Port

    4-port 10GbE Base-T

  • USB Port

    2x USB2.0 & 4x USB3.2

  • Graphic Port

    1x HDMI; 1x VGA

  • LED Indicator

    System Status and Thunderbolt Target Link
    Drive carrier: Status and activity

  • Power Button

    Yes

  • Temperature Range

    Operating: 41 Degree - 95 Degree F (5 Degree - 35 Degree C)
    Non-operating: -40 Degree - 140 Degree F (-40 Degree - 60 Degree C)

  • Acoustic Noise Levels

    Level 0: 37.7db

  • AC Input

    100 - 240V AC (350Wx1), 47 - 63Hz

  • Fan

    System fan: 2700RPM.12V

  • PCIe Slot

    2

  • System Warning

    Buzzer

Software

Jump to...
  • Performance

    One Master Host via high speed Thunderbolt 3 DAS and multiple member accounts for file sharing via 10G Ethernet (with up to 6,000MB/sq.m system throughput for R16)

  • Promise Utility Pro

    Easy of use, very fast DAS (Block) and NAS (File) bidirectional conversion with FileBoost between DAS Volume and Team Volume

  • Application Ecosystem

    Good match with Apple Final Cut Pro X, Adobe Premiere Pro, DaVinci, Post Production Softwares

Physical

Jump to...
  • Dimensions (H x W x D)

    12.2 x 7.36 x 9.6" (310 x 187 x 245mm)

  • Weight

    35.2 lbs (16kg) (with HDD)

  • UPC Code

    704118172788

About Promise Technology PegasusPro R8 8-Bay Thunderbolt 3 RAID Array

The PegasusPro R8 leaps over technological hurdles to deliver a true Thunderbolt 3 DAS and NAS fusion system for a major improvement in workflow efficiency for digital media collaboration. PegasusPro is a kind of system that enables rapid data transfer from DAS to NAS and vice-versa, a huge time saving, performance improvement that is unique in the industry. In addition, utilizing 8th Gen Intel Core processors, PegasusPro delivers remarkable system performance. Multiple team members can connect to PegasusPro on 4K, even 8K productions; And simultaneously share their work with other team contributors over 10G NAS. All done using a simple, intuitive user interface after a quick and easy one-time setup procedure.

Recommended for medium to large editing teams. Dual Thunderbolt 3 ports, supports up to five 4K concurrent editors and sharing with up to twenty NAS users with 10G Ethernet switch. Futureproof: can be upgraded and adapted to fit future needs, e.g. 8K definition. Extremely large storage capacity possible with 12G SAS JBOD expansion. High performance SSD support. PROMISE RAID performance, safety and fault tolerance.

Mac users familiar with the Pegasus Series will transit easily to PegasusPro. Just install PROMISE Utility Pro and connect to the shared storage. Data on your Pegasus3 or Pegasus32 is immediately accessible with a single Thunderbolt 3 connection to PegasusPro. Simplified administration is possible because NAS volumes and folders, including shared team folders on the DAS volume are already created. The administrator (master host system) has to simply allow or deny access to client users - that's it.

Features

Technology Breakthrough-FileBoost
Convert from DAS to NAS and vice-versa with FileBoost for the first time, reducing hours of troublesome transferring and sharing time to just one-click.

Data Protection is essential
Worldwide most robust PROMISE RAID engine, stable and high performance. Easy backup to NAS and Cloud.

No Compromising Performance
Embrace high performance file sharing for collaborative workflow features on Final Cut Pro X, Adobe Premiere Pro, DaVinci etc.

Ease of Use
Plug and Play. Intuitive and simple PROMISE Utility Pro to simplify user and data administration, enables seamless transition and ease of use to end users.

Investment Protection for Pegasus Users
Aggregate, share content and expand up to total 6 daisy chain on Pegasus3 and/or Pegasus32 to ensure the best utilization of asset to Pegasus users, in addition, allow to be upgraded and adapted to fit future needs, e.g. 8K definition

Cost Effective
All-in-one storage to support Thunderbolt DAS/Ethernet NAS/Thunderbolt NAS. Thunderbolt-to-Ethernet networking connects shared asset storage to workstations.

Performance and Sharing
Recommended for medium to large editing teams. Dual Thunderbolt 3 ports (AJA Write: 2809MB/s, Read: 2784MB/s) supports up to five 4K concurrent editors and sharing with up to twenty NAS users with 10G Ethernet switch.

Promise Technology PegasusPro R8 8-Bay Thunderbolt 3 RAID Array Features

  • Convert from DAS to NAS and vice-versa with FileBoost
  • Worldwide most robust PROMISE RAID engine, stable and high performance
  • High performance file sharing for collaborative workflow features on Final Cut Pro X, Adobe Premiere Pro, DaVinci etc
  • Intuitive and simple PROMISE Utility Pro to simplify user and data administration
  • Multiple team members can connect to PegasusPro on 4K, even 8K productions
  • Simultaneously share their work with other team contributors over 10G NAS

Warranty Information

This product has a limited warranty of 36 months.

Product Documents

User Manual

Key Features

  • Experience high-speed data access with Thunderbolt 3, perfect for video editing and large file transfers.
  • Ensure data redundancy with RAID 0/1/5/6/10/50/60, safeguarding your valuable files against drive failure.
  • Benefit from reliable performance with an Intel i5 CPU and 32GB RAM for seamless multitasking.
  • Enjoy cost-effective storage with flexible HDD and SSD options, tailored to your capacity needs.
  • Easily integrate this 8-bay RAID array into your existing network via dual Gigabit and quad 10GbE ports.
  • Utilize the high capacity of up to 144TB for extensive media libraries or large project archives.

What's in the box:

  • Promise Technology PegasusPro R8 8-Bay Thunderbolt 3 RAID Array
  • Power Cord
  • Thunderbolt 3 Cable
  • User Manual
  • Promise Technology 3 Year Limited Warranty
