This item is no longer available.
Review Summary
2x Thunderbolt 3
4x 1Gb Ethernet
5x USB3.0
1x HDMI
Intel Core i5 2.7GHz Quad-Core (maximum 3.3GHz) Processor
16GB DDR4 SODIMM, optional upgrades to 32GB
8x SATA3 7200 rpm HDDs
Optional SSD module
NAS application server (Gigabit/10GbE NIC)
iSCSI storage (Gigabit/10GbE NIC)
Direct attached storage with Thunderbolt 3 .0
Supports data access from remote location via FTP
FTP with SSL/ TLS (explicit) mode
FXP supported
FTP bandwidth control and connection control
Passive FTP port range control
3rd party backup software support: Acronis True Image, CA Brightstor ARCserve Backup, EMC Retrospect, Symantec Backup Exec, LaCie Silverkeeper
Snapshot replication
Time Machine backup server
External storage device backup
Block-level real time remote replication supports instant, schedule backup management
AMirror (Multi-side data synchronization)
Cloud backup: Amazon S3
Cloud synchronization: Google Drive, Windows
OneDrive, Dropbox
Easy and convenience device discovery utility and web browser applet included
ZFS, EXT2, EXT3, EXT4, FAT, NTFS
Windows, macOS X, Linux (2.6 or later) and UNIX
VLAN
Link aggregation (support 7 bonding modes)
Multi-IP settings
Gigabit Jumbo Frame
File sharing across Windows/Mac/Linux/UNIX and centralized management
IPv4, IPv6 and DDNS domain name registration
Auto port forwarding
Single disk, RAID 0, 1, 5, 6, 10, 50, 60 and JBOD (Linear Disk Volume), Multiple volume and storage pool, User defined storage (Generic, Media, Database), Online pool/volume Capacity Expansion, Pool/ volume usage threshold notification, Self-encrypting drives (SED) pool level protection, Pool write cache, Scrub pool, Convert cloned volume, Virtual volume (mount disk from remote iSCSI target), Set free and replace disk
HDD S.M.A.R.T., Built-in iSCSI target and initiator service, External device management, Global and dedicate hot spare disk, Zero time RAID creation and quick rebuilding, Auto Tiering, SSD read/write cache, Deduplication (volume and LUN), Snapshot (folder and LUN), Compression (volume and LUN), Thin Provision for LUN, SSD Trim
Local / domain user and group management, Local / domain application privilege, User quota for local and domain user, Home folder, Windows AD and LDAP, Trust domain and support up to 200,000 domain users
Advance file ACL, Windows ACL, Hide shared folder on Windows network, Unicode support, WORM (Write Once Read Many protection), Folder usage threshold notification, Folder quota
NTP time settings, Notification: E-mail alert (SMTP authentication), Syslog and SNMP, System firmware upgrade, Backup, restore, reset system settings, Import system configuration, Antivirus, Smart fan, IP access control, Policy-based unauthorized IP blocking, Secure remote login by SSH connection, Connection list management, USB, SNMP, UPS support, Network recycle bin, Import SSL certificate, Real-time Resource (CPU, Memory, Storage, Disk, Process) / Hardware/ service/ network resource monitor
HDD hibernation
Power schedule
Wake on LAN
UPS settings
Recover from power outage
Service binding
System log
System connection and data transfer log
AFinder, Acronis True Image OEM (Windows backup utility)
Internet Explorer, Safari, Firefox, Google Chrome
File preview, Embedded media player, Filter capability, Mount Cloud Drives Support (Google Drive,, OneDrive, Dropbox), Mount ISO image support, CIFS, FTP, SFTP and WebDAV client, Share link, Team folder sharing, Publish to Facebook, Twitter, Weibo, Media library, Media streaming, Online document preview and editing, Transcoding (online/offline), Compression support
File service: CIFS, AFP, NFS, FTP, WebDAV
Backup service: Rsync
Discover service: Bonjour
Operating : 5 to 40 deg. C (41 to 104 deg. F)
Non-Operational: -10 to 50 deg. C (14 to 122 deg. F)
Operating : 20% to 80% (Non-Condensing)
Non-Operating : 10% to 90%
177 x 310 x 235mm (6.97 x 12.20 x 9.25")
704118136056
Create, Store and Share with Ease

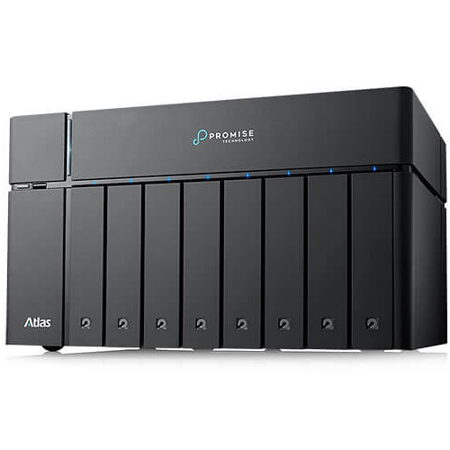

Whether you are a small studio or mid-sized business, you can easily set up the Atlas S8+ and start storing and sharing content quickly with your team. The Thunderbolt 3 model give you the flexibility that fits every need, with multiple 1GbE ports available on both for additional clients.
Bandwidth to handle the most demanding workloads
With eight 7200 RPM drives and a Quad-Core Intel processor, the Atlas S8+ is well equipped to handle multiple clients with demanding workloads over Thunderbolt 3, while sustaining other clients over 1GbE. Add your own SSD into the enclosure for even faster response with included flash cache feature.
Enterprise-Class Features
Atlas S8+ leverages an Enterprise-class NAS operating system with advanced Data Services behind a simple-to-use interface. Complete Backup solutions included for local and Cloud Enhanced Encryption to secure your data. Virtualization ready and certified for VMWare, Citrix and Hyper-V.
A Range of Capacities to Suit Any Need - Fully Integrated and Warranted
Atlas S8+ models come fully tested and integrated with drives, with model offering 32TB raw capacity.
