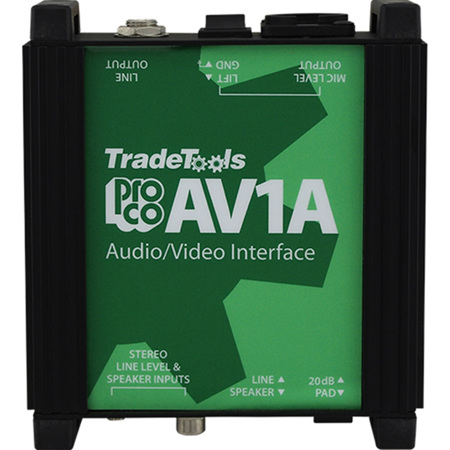

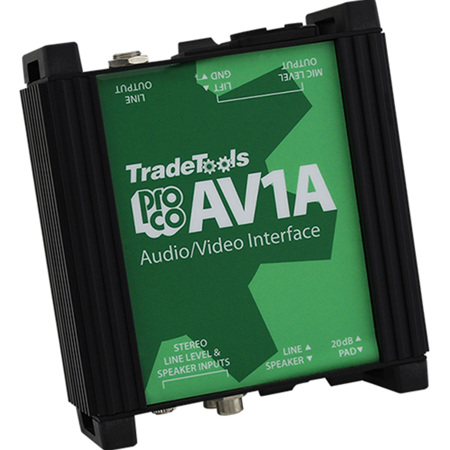

Pro Co Sound AV1A Audio-Visual Passive Interface Box, 20Hz-20kHz Frequency Response, <200 Ohms Output Impedance

SKU: PRAV1A MFR: AV1A
$138.27
$257.40
Save: $119.13 (46%)
Earn VIP Reward Points

Key Features

  • Achieve superior sound quality with this Pro Co direct box, perfect for studio recording.
  • Convert unbalanced signals to balanced with ease using this versatile interface box.
  • Enjoy low noise performance, ideal for live sound and studio environments, ensuring clarity.
  • Utilize the ground lift switch to eliminate hum and buzz for cleaner audio signals.
  • Handle high-output instruments and speaker signals effortlessly with built-in attenuation.
  • Rugged build quality ensures reliable performance for years, on stage or in your studio.
See More Product Details
Ships from Manufacturer?
Calculate Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$15.99

2 Year

$23.99

3 Year

$35.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Shopper : Why Did You Choose This?GEORGE B : needed this one unit

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Pro Co Sound AV1A Specifications

  • Input Impedance

    >130 KOhms at 1.0 kHz (LO mode)
    Approximately 82 KOhms (HI mode)
    Approximately 16 Ohms (Speaker mode)
    Nominal source impedance is 0 Ohms. Speaker mode loads source with 16 Ohms 5.0 watt dummy load

  • Output Impedance

    <200 Ohms at 1kHz
    Nominal load impedance is >1.0 KOhms

  • Maximum Input Level at 50 Hz for 1% THD

    26 dBv (Pad Out mode), 46 dBv (Pad In or Speaker modes), 66 dBv (Pad In and Speaker modes)

  • Frequency Response

    20Hz - 20kHz, /-.5dB at-15dBv output
    -3dB at 85 kHz (approx.)
    Speaker mode introduces 6 dB/octave attenuation above 8.0 kHz

  • Total Harmonic Distortion

    < .03% 20 Hz-20 kHz at -30 dBv output
    < .1% 30 Hz-20 kHz at -15 dBv output
    < .25% 20 Hz-20 kHz at -15 dBv output

  • Voltage Stepdown

    < 22 dB at 1.0 kHz (LO mode)

  • Speaker Input

    1/4" 3-conductor phone jack

  • Line/Speaker

    RCA phono jacks

  • Line Output

    1/4" (6.3mm) phone jack

  • Mic-Level Output

    Male 3-pin XLR-type connector

  • Input

    1/4" (6.3mm) T/R/S phone, RCA and 3.5 mm T/R/S minijacks

  • Pad In/Out

    Pad In position inserts 20 dB pad for use with high-level (4) line level inputs
    Pad Out position bypasses pad

  • Dimensions (W x D x H)

    4.38 x 4.88 x 1.75" / 11.12 x 12.39 x 4.44cm

  • Weight

    1lbs / 0.45kg

  • UPC Code

    765811799788

About Pro Co Sound AV1A

Why settle for less when you can have the Pro Co Sound AV1A Audio-Visual Passive Interface Box This versatile device is designed to seamlessly connect the line or speaker level outputs of movie projectors, audio and video playback devices, and more, to the microphone inputs of house or portable P.A. systems. It's an ideal choice for a variety of settings, from school auditoriums and lecture halls to civic meetings and corporate board rooms.

The AV1A stands out with its superior audio interfacing and isolation capabilities, offering a wide frequency response range of 20Hz-20kHz and low distortion. It features three different types of input connectors - 1/4" (6.3mm) T/R/S phone, 2 RCA-type phono, and 3.5mm T/R/S mini jacks - to ensure easy connection with most equipment.

This interface box is equipped with a Line/Speaker attenuator switch, allowing it to be safely connected to the speaker outputs of older tube-type equipment. Its 16-ohms, 5-watt load resistor simulates the speaker impedance to prevent damage to the amplifier output stage, while a high-frequency filter reduces hiss from noisy electronics.

The AV1A also includes a HI/LO attenuator switch for handling line output sources at either hi-fi" -10 dBV or professional" 4dBm levels. Its DBT-1 transformer provides a floating 150 ohms output with a standard 3-pin male XLR type connector, ensuring easy connection to most P.A. system mixers or mixer/amplifiers using a standard microphone cable.

The GND/LFT switch is designed to eliminate hum and buzz from AC ground loops between equipment. For added versatility, the AV1A also features a 1/4" (6.3mm) unbalanced line-level output.

Built to last, the AV1A's construction and components are top-grade, ensuring reliable operation in educational, institutional, and A/V rental settings. Its Uni-box" enclosure, made of extruded aluminum side channels and 16-gauge steel top, bottom, and end plates, is designed to protect its switches and connectors from accidental damage. The use of steel also provides excellent magnetic shielding for the transformer from EM/RF fields.

Finished with a durable black textured powder coat on the end plates and black anodized aluminum side channels, the AV1A is as stylish as it is functional. Its control and connector identification graphics are incorporated into a durable Lexan overlay on the top panel, making it easy to use. The uniquely slotted side channels allow for stacking on top or strapping side-to-side of virtually any number of Pro Co TradeTools devices using the Uni-box construction.

In summary, the Pro Co Sound AV1A Audio-Visual Passive Interface Box offers a comprehensive solution for your audio-visual interfacing needs, delivering high-quality sound with less than 200 Ohms output impedance.

Pro Co Sound AV1A Features

  • Better Sound from Projectors, Computers and DVDs
  • Ideal for Meetings, Lectures and Presentations
  • Output is Transformer-isolated and includes a Ground/Lift Switch
  • Selectable Low-pass Hiss" Filter
  • Offers Choice of Standard Connectors, No Adapters Needed
  • Properly Converts Signal Levels from -20 to 40 dBv
  • 16 Ohms Dummy Load Prevents Amplifier Damage
  • Rugged Uni-box" Construction Provides Protection and Shielding
