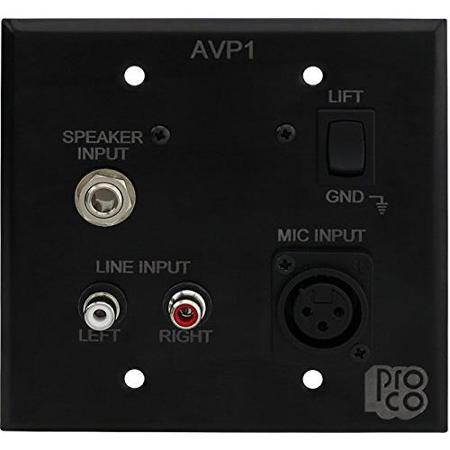

Pro Co Sound AVP1 Audio-Visual Passive Interface Wallplate, 20Hz-20kHz Frequency Response, <200 Ohms Output Impedance, Black

Why settle for less when you can have the best in audio-visual technology The Pro Co Sound AVP1 Audio-Visual Passive Interface Wallplate, designed in a sleek black finish, is a high-quality, professional-grade solution for all your audio and video interfacing needs.

This durable wallplate is engineered to connect a wide range of devices, from movie projectors and phonographs to audio and video tape/cassette recorders. With its wide frequency response of 20Hz-20kHz, it ensures a broad spectrum of audio frequencies are catered to, delivering superior sound quality with minimal distortion.

The AVP1 features a 1/4" phone jack input, specifically designed for movie projectors and similar monaural A/V equipment. This unique feature allows for safe connection to speaker outputs of vintage tube-type equipment, thanks to a 16-ohms, 5-watt load resistor that simulates speaker impedance, preventing damage to the amplifier output stage. A high-frequency filter is also included to reduce hiss from noisy electronics, ensuring a clean, clear audio output.

The AVP1 also boasts left and right RCA phono jack line inputs that are resistively mixed to monaural, a feature that proves handy when used with CD players and cassette recorders. These can also double as recording outputs for devices connected to the PROJ IN jack.

The DBT-1 transformer provides a floating 150-ohm output to a user-friendly screw-type barrier strip, eliminating the need for crimp-on terminals and ensuring a quick and easy wiring installation. The AVP1 also features a Hum Cable switch to eliminate hum and buzz from AC ground loops between equipment, enhancing the overall audio experience.

For added versatility, the AVP1 includes an independent low-impedance microphone input via a female XLR-type connector wired to the output barrier strip.

Built on a standard stainless steel or black anodized aluminum wall plate, the AVP1 is designed for mounting in any standard two-gang masonry box. Its stylish brushed finish and laser engraved legends make it not only functional but also an attractive addition to any decor.

Choose the Pro Co Sound AVP1 Audio-Visual Passive Interface Wallplate for a reliable, high-quality audio-visual solution.
