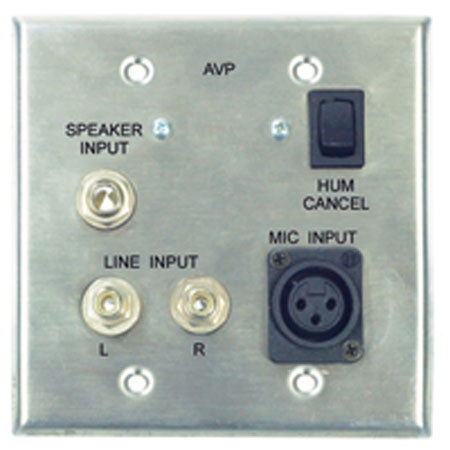

Pro Co Sound AVP1 Audio-Visual Passive Interface Wallplate, 20Hz-20kHz Frequency Response, <200 Ohms Output Impedance, Stainless Steel

Enhance your audio-visual experience with the Pro Co Sound AVP1 Audio-Visual Passive Interface Wallplate. Constructed from durable stainless steel, this high-quality wallplate is designed to seamlessly integrate with your existing audio and video equipment, providing a versatile and stylish solution for your audio-visual needs.

This wallplate is engineered to connect line or speaker-level outputs from a variety of devices, including movie projectors, audio and video tape/cassette recorders, and phonographs, to the microphone inputs of house P.A. systems. It offers a broad frequency response of 20Hz-20kHz, ensuring it can handle a wide range of audio signals with minimal distortion.

The AVP1 features a 1/4" phone jack input, ideal for movie projectors and similar monaural A/V equipment. This input is designed to safely connect to the speaker outputs of older tube-type equipment, with a 16-ohms, 5-watt load resistor simulating the speaker impedance to prevent damage to the amplifier output stage. A high-frequency filter is also included to reduce hiss from noisy electronics.

For added convenience, the AVP1 includes left and right RCA phono jack line inputs, which are resistively mixed to monaural. This feature is particularly useful when used with CD players and cassette recorders. The DBT-1 transformer provides a floating 150-ohm output to an easy-to-use screw-type barrier strip, simplifying the wiring installation process.

The AVP1 also includes a Hum Cable switch to eliminate hum and buzz from AC ground loops between equipment. An independent low-impedance microphone input via a female XLR-type connector wired to the output barrier strip adds to the versatility of this wallplate.

Designed to fit any standard two-gang masonry box, the AVP1 is both functional and attractive. Its lustrous brushed finish and laser engraved legends complement a wide variety of decors, making it an ideal choice for those seeking a durable, high-quality, and easy-to-install audio-visual interface solution.
