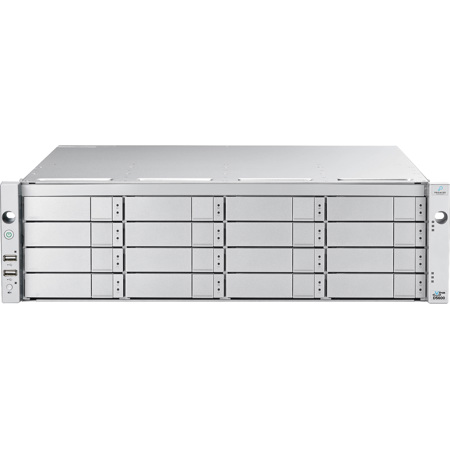

Promise Technology VTrak D5600FXD 3U 16-Bay FC/iSCSI/NAS Unified Storage System with 160TB (16x 10TB 7200rpm 12G SAS) HDD, RAID Dual HA Controllers with 4-Port 10GSFP+ and 8-Port 32Gb FC

From high-performance hardware to adaptive storage software and flexible protocols, the VTrak D5600FXD 3U 16-Bay FC/iSCSI/NAS Unified Storage System is an advanced and sophisticated solution designed to accelerate your data-driven business. This high-capacity, robust system is optimized for high bandwidth and low latency, making it an ideal storage solution for mid-tier IT applications, surveillance, backup, and running multiple mixed workloads.

The VTrak D5600FXD is scalable up to 15 JBODs or 512 drives, offering impressive NAS performance with 4K IOPs of 42,334 and sequential performance of 3867MB/s reads and 3525MB/s writes. Its iSCSI performance boasts 4K IOPs of 93,018 and sequential performance of 4214MB/s reads and 3376MB/s writes. The system also supports Fibre Channel with 4K IOPs of 141,285 and sequential performance of 6,507MB/s reads and 4360MB/s writes.

This reliable storage system ensures high availability and resiliency with its redundant design for zero downtime. It features an Active-Active Dual Controller with ALUA support for access flexibility, background data integrity scrub with parity rebuild, and Predictive Data Migration (PDM) to minimize maintenance.

The VTrak D5600FXD also unlocks the power of Flash Cache. This feature accelerates the storage system, boosting throughput and lowering latency. Users have the option to add Flash Cache for read and write acceleration, with PROMISE intelligent data caching automatically promoting hot data to cache in real time for the full benefit of flash performance.

Not just for IT, the VTrak D5600FXD is optimized for video application environments. It supports 10Gb Ethernet via SMB/NFS protocols for large file data ingesting, streaming, or processing between the storage appliance and its clients. Data can also be directly transferred over the SAN via iSCSI/Fibre Channel network for higher bandwidth performance and lower latency data transfers. This makes it perfect for Media & Entertainment, HPC applications, and other video-centric environments.

The VTrak D5600FXD also supports Open Directory and Active Directory, making it fully integratable into your existing networking environment. It optimizes performance to enable media professionals to increase productivity by allowing efficient processing of compressed video, delivering best-in-class performance and reliability.

With the VTrak D5600FXD, you can "pay as you grow" from 64 Tera Bytes to Peta Bytes for long-term storage investment protection. It's not only perfect for compressed video workflow environments but also ideal for low-cost backup/archive applications. The VTrak D5600FXD series comes with high-availability dual controllers, hot-swappable modular disk array, and a 3-year 24x7 technical support. Expansion units can start from 2u24 small form factor to large form factor 2u12, 3u16, 4U24, and up to the high-density 4u60 and 5u102 JBOD expansion options.
