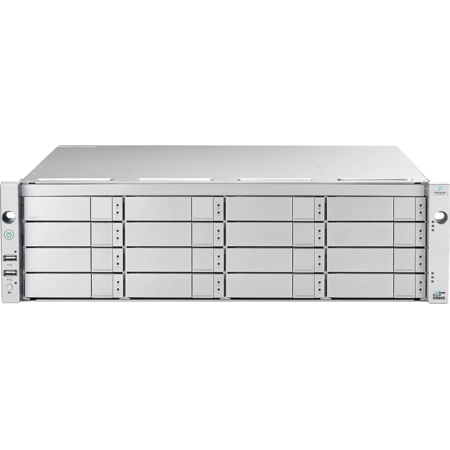

Promise Technology VTrak D5600XD 3U 16-Bay iSCSI/NAS Unified Storage System with 192TB (16x 12TB 7200rpm 12G SAS) HDD, RAID Dual HA Controllers with 4-Port 10GSFP+

SKU: PRD5600XDAGC MFR: D5600XDAGC
Earn VIP Reward Points

Key Features

  • Get robust data security with the VTrak D5600XD, ensuring your critical files are always protected.
  • Experience seamless connectivity using iSCSI/NAS unified storage, perfect for diverse network environments.
  • Scale your storage effortlessly; expand capacity online with up to 15 JBODs for growing business needs.
  • Harness the power of 192TB storage, featuring sixteen 12TB SAS HDDs for high-capacity data management.
  • Optimize performance with advanced RAID levels, including 0, 1, 5, 6, 10, 50, and 60 for data redundancy.
  • Enjoy proactive data management with predictive migration and intelligent bad sector remapping features.
See More Product Details
Temporarily On Backorder?Expected Availability: 10/2025Request assistance or get notified
Free Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Promise Technology VTrak D5600XD Specifications

  • Form Factor

    3RU

  • Drives Capacity

    16 (LFF)

  • Host Connect Interface

    iSCSI and NAS Storage Sub-System

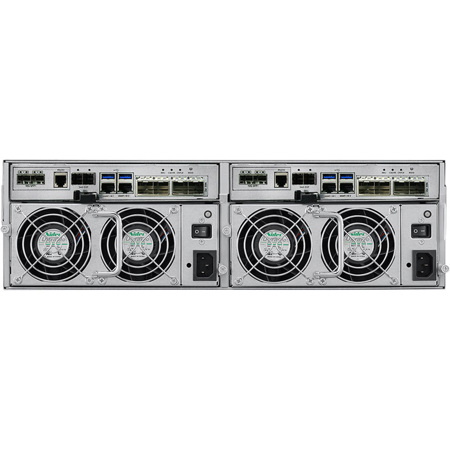

    Dual HA Controller with 4-port 10GSFP+

  • Storage Expansion Ports

    2x 12Gb SAS Mini-SAS (SFF-8644) per controller

  • Management Ports

    2x RJ-45 1Gb Ethernet and 1 x RJ-11 Port per controller

  • Total Installed Capacity

    192TB (16x 12TB 3.5" 7200 rpm 12G SAS) HDD

  • Expansion

    Online Capacity/Volume Expansion up-to 15 JBOD's

  • Max Pools/Volumes

    256 volumes per pool, Max 32 pools per System; Max 512 Snapshots / 128 Clones per volume

  • Data Services

    Snapshot
    Thin/Thick Clones
    Thick/Thin Volumes
    Read/Write Cache
    Online Capacity Expansion

  • Advanced Storage Functions

    Asymmetric LUN Unit Access (ALUA)
    LDAP for central user management
    Linux Permission, POSIX ACL,NT ACL
    Advanced Cache Mirroring over PCIe Gen3
    Microsoft AD, LDAP and OD

  • NAS Protocol

    SAN - FC Block with 16Gb FC or 10GbE iSCSI
    NAS - SMB/CIFS v2/v3, NFS v3/v4

  • RAID Levels

    0, 1, 5, 6, 10, 50, 60 RAID Stripe Support 64K, 128K, 256K, 512K and 1MB

  • Hot Spares

    Global or Dedicated

  • Background Scrub

    Media Patrol & Redundancy Check
    Background Synchronization
    Partial Rebuild
    Task Scheduler for Background Activities

  • Proactive/Predictive Functions

    Predictive Data Migration (PDM)
    Intelligent Bad Sector Remapping
    NVRAM Error Logging
    Drive Power Management (MAID)
    SMART Error Handling and Write Hole Table

  • Supported OS

    Windows Server 2008, 2012, 2016, macOS 10.x, RHEL 6.5 to 7.2, SLES 11, 11 SP4 and 12 SP1

  • Certifications

    VMware ESXi 6.5 & Citrix Server 7.3

  • Management Interfaces

    Web Based management using WEB, CLI, SSH, SNMP

  • Power Adapter

    Voltage: 100-240Vac Auto-Ranging
    Max Current: 12A at 100Vac; 4.5A at 240Vac

  • Power Efficiency

    >80% at 110V (>20% load), >80% at 240V (>20% load) Temperature Range, 80Plus Certified PSU

  • Temperature Range

    Operational: 5 to 35 deg. C (41 to 95 deg. F)
    Non-Operational: -40 to 60 deg. C (-40 to 140 deg. F)

  • Humidity

    Operational: 20% to 80%
    Non-Operational: Approx. 95% (Non-Condensing)

  • Noise Levels & Shock

    < 60dB, 25C, Operational: 5G, 11 ms Duration, Non-Operational: 30G, 11ms duration

  • Vibration

    Operational: 0.2G, 5 to 500Hz (sine wave), 0.41G, 3-10-200-500Hz (Random)
    Non-Operational: 1G, 5 to 500Hz (sine wave), 2.256G, 5-80-350-500Hz (Random)

  • Safety

    EMC Class-A: CE, FCC, VCCI, BSMI, RCM
    Safety: IEEE CB, cTUVus
    Environmental: RoHS2, GreenPC, WEEE

  • UPC Code

    704118137640

About Promise Technology VTrak D5600XD

Accelerate Your Business
VTrak D5000 enables data driven business with an integrated combination of high-performance hardware, adaptive storage software and flexible protocols at an affordable price. The platform is optimized for high bandwidth and low latency which makes it a perfect storage solution for mid-tier IT applications, surveillance, backup and running multiple mixed workloads.

Performance & Scalability
• Scalable up to 15 JBODs or 512 drives

NAS
• 4K IOPs: 42,334
• Sequential Performance: 3867MB/s reads 3525MB/s writes

iSCSI
• 4K IOPs: 93,018
• Sequential Performance: 4214MB/s reads 3376MB/s writes

High Availability & Resiliency
• Everything redundant for no downtime
• Active-Active Dual Controller with ALUA support for access flexibility
• Background data Integrity scrub with parity rebuild
• Predictive Data Migration (PDM) to minimizes maintenance

Unlock Power of Flash Cache
Flash Cache accelerated VTrak D5000 storage systems deliver impressive performance, boosting throughput and lowering latency. User has option to add Flash Cache for read and write acceleration. PROMISE intelligent data caching automatically promotes hot data to cache in real time, so you get the full benefit of flash performance.

Not just for IT, Optimized for Video Application Environments
The Promise VTrak D5000 is optimized for 10Gb Ethernet via SMB/NFS protocols for large file data ingesting, streaming or processing between the VTrak D5000 NAS storage appliance and its clients. Data can also be directly transferred between the VTrak D5000 appliance and clients over the SAN via iSCSI/Fibre Channel network. This means higher bandwidth performance and lower latency data transfers, perfect for Media & Entertainment, HPC applications and other video-centric environments. In addition the VTrak D5000 supports Open Directory and Active Directory making it fully integratable into your existing networking environment.

Edit & play back compressed video faster
A faster processor, 10Gb Ethernet ports and more memory is just the beginning. Enhanced cached mirroring design, auto-regeneration of data to mitigate frame drops and optimized disk access all add up to blazing performance for broadcast and editing environments. The VTrak D5000 Series optimizes performance to enable media professionals to increase productivity by allowing efficient processing of compressed video, delivering best-in-class performance and reliability.

Scalable, Reliable and Cost-efficient
With VTrak D5000 you can "pay as you grow" from 64 Tera Bytes to Peta Bytes for long-term storage investment protection. Perfect not only for compressed video workflow environments but ideal for low cost backup/archive applications. Additionally, VTrak D5000 series comes with high-availability dual controllers, hot-swappable modular disk array and a 3 year 24x7 technical support, with next business day on-site parts replacement warranty.

Expansion units can start from 2u24 small form factor to large form factor 2u12, 3u16, 4U24 and up to the high density 4u60 and 5u102 JBOD expansion options.

Warranty Information

This product has a limited warranty of 36 months.

Product Documents

User Manual

Key Features

  • Get robust data security with the VTrak D5600XD, ensuring your critical files are always protected.
  • Experience seamless connectivity using iSCSI/NAS unified storage, perfect for diverse network environments.
  • Scale your storage effortlessly; expand capacity online with up to 15 JBODs for growing business needs.
  • Harness the power of 192TB storage, featuring sixteen 12TB SAS HDDs for high-capacity data management.
  • Optimize performance with advanced RAID levels, including 0, 1, 5, 6, 10, 50, and 60 for data redundancy.
  • Enjoy proactive data management with predictive migration and intelligent bad sector remapping features.

What's in the box:

  • Promise Technology VTrak D5600XD 3U 16-Bay iSCSI/NAS Unified Storage System with 192TB (16x 12TB 7200rpm 12G SAS) HDD
  • Mounting Rails
  • DB9-to-RJ11 Serial Data Cable
  • Promise Technology 3 Year Limited Warranty
