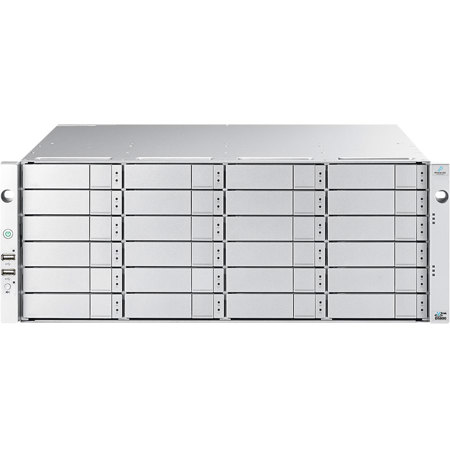

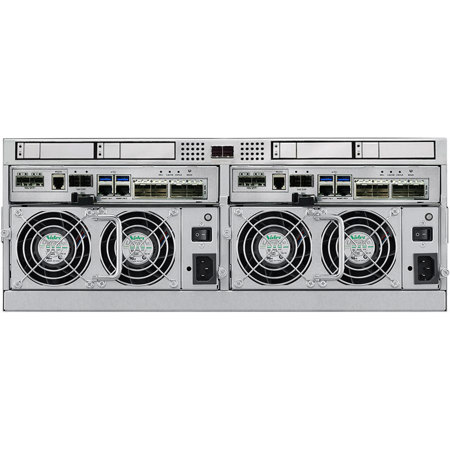

Promise Technology VTrak D5800FXD 4U 24-Bay FC/iSCSI/NAS Unified Storage System with 144TB (24x 6TB 7200rpm 12G SAS) HDD, RAID Dual HA Controllers with 4-Port 10GSFP+ and 8-Port 32Gb FC

SKU: PRD5800FXDAF MFR: D5800FXDAFD
Earn VIP Reward Points

Key Features

  • Experience fast performance with this unified storage system, perfect for demanding applications.
  • Ensure data security with advanced RAID levels and proactive functions for worry-free storage.
  • Utilize the 144TB storage capacity for extensive media libraries or large-scale business data.
  • Enjoy easy setup and management with web-based interfaces for efficient NAS administration.
  • Access your data remotely with secure protocols, ideal for collaborative projects and teams.
  • This NAS server provides a cost-effective storage solution with robust features and scalability.
See More Product Details
Temporarily On Backorder?Expected Availability: 09/2025Request assistance or get notified
Free Shipping

See Options

Qty
1

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

2019-08-28T11:42:39

Rated 5 out of 5

Downloaded the internet.

I downloaded the internet on this hard drive and all of YouTube when the Apocalypse occurs. Worth selling my home for it.

Steve J.

Promise Technology VTrak D5800FXD Specifications

  • Form Factor

    4RU

  • Drives Capacity

    24 (LFF) + 4 (SFF)

  • Host Connect Interface

    FC, iSCSI and NAS Unified Storage Sub-System
    Dual HA Controller with 4-port 10GSFP+ and 8-port 16Gb FC

  • Storage Expansion Ports

    2x 12Gb SAS Mini-SAS (SFF-8644) per controller

  • Management Ports

    2x RJ-45 1Gb Ethernet and 1 x RJ-11 Port per controller

  • Total Installed Capacity

    144TB (24x 6TB 7200rpm 12G SAS)

  • Expansion

    Online Capacity/Volume Expansion up-to 15 JBOD's

  • Max Pools/Volumes

    256 volumes per pool, Max 32 pools per System; Max 512 Snapshots / 128 Clones per volume

  • Data Services

    Snapshot
    Thin/Thick Clones
    Thick/Thin Volumes
    Read/Write Cache
    Online Capacity Expansion

  • Advanced Storage Functions

    Asymmetric LUN Unit Access (ALUA)
    LDAP for central user management
    Linux Permission, POSIX ACL,NT ACL
    Advanced Cache Mirroring over PCIe Gen3
    Microsoft AD, LDAP and OD

  • NAS Protocol

    SAN - FC Block with 16Gb FC or 10GbE iSCSI
    NAS - SMB/CIFS v2/v3, NFS v3/v4

  • RAID Levels

    0, 1, 5, 6, 10, 50, 60 RAID Stripe Support 64K, 128K, 256K, 512K and 1MB

  • Hot Spares

    Global or Dedicated

  • Background Scrub

    Media Patrol & Redundancy Check
    Background Synchronization
    Partial Rebuild
    Task Scheduler for Background Activities

  • Proactive/Predictive Functions

    Predictive Data Migration (PDM)
    Intelligent Bad Sector Remapping
    NVRAM Error Logging
    Drive Power Management (MAID)
    SMART Error Handling and Write Hole Table

  • Supported OS

    Windows Server 2008, 2012, 2016, macOS 10.x, RHEL 6.5 to 7.2, SLES 11, 11 SP4 and 12 SP1

  • Certifications

    VMware ESXi 6.5 & Citrix Server 7.3

  • Management Interfaces

    Web Based management using WEB, CLI, SSH, SNMP

  • Power Adapter

    Voltage: 100-240Vac Auto-Ranging
    Max Current: 12A at 100Vac; 4.5A at 240Vac

  • Power Efficiency

    >80% at 110V (>20% load), >80% at 240V (>20% load) Temperature Range, 80Plus Certified PSU

  • Temperature Range

    Operational: 5 to 35 deg. C (41 to 95 deg. F)
    Non-Operational: -40 to 60 deg. C (-40 to 140 deg. F)

  • Humidity

    Operational: 20% to 80%
    Non-Operational: Approx. 95% (Non-Condensing)

  • Noise Levels & Shock

    < 60dB, 25C, Operational: 5G, 11 ms Duration, Non-Operational: 30G, 11ms duration

  • Vibration

    Operational: 0.2G, 5 to 500Hz (sine wave), 0.41G, 3-10-200-500Hz (Random)
    Non-Operational: 1G, 5 to 500Hz (sine wave), 2.256G, 5-80-350-500Hz (Random)

  • Safety

    EMC Class-A: CE, FCC, VCCI, BSMI, RCM
    Safety: IEEE CB, cTUVus
    Environmental: RoHS2, GreenPC, WEEE

  • UPC Code

    704118137824

About Promise Technology VTrak D5800FXD

FEATURED REVIEWS

Downloaded the internet.

By Steve J.

I downloaded the internet on this hard drive and all of YouTube when the Apocalypse occurs. Worth selling my home for it.

Bring your business to the forefront of technology with the VTrak D5800FXD 4U 24-Bay FC/iSCSI/NAS Unified Storage System. This high-performance storage solution is designed to meet the needs of data-driven businesses, offering an integrated blend of top-tier hardware, adaptive storage software, and flexible protocols.

The VTrak D5800FXD is optimized for high bandwidth and low latency, making it an ideal choice for mid-tier IT applications, surveillance, backup, and running multiple mixed workloads. With scalability up to 15 JBODs or 512 drives, this NAS system offers impressive performance metrics, including 4K IOPs of 42,334, and sequential performance of 3867MB/s reads and 3525MB/s writes.

The VTrak D5800FXD also excels in iSCSI and Fibre Channel performance, boasting 4K IOPs of 93,018 and 141,285 respectively, and sequential performance of up to 6,507MB/s reads and 4360MB/s writes.

High availability and resiliency are key features of this storage system, with everything designed for redundancy to ensure zero downtime. The active-active dual controller with ALUA support offers flexible access, while the background data integrity scrub with parity rebuild and Predictive Data Migration (PDM) minimizes maintenance.

Experience the power of Flash Cache with the VTrak D5800FXD. This system delivers impressive performance, boosting throughput and lowering latency. Users have the option to add Flash Cache for read and write acceleration, with PROMISE intelligent data caching automatically promoting hot data to cache in real time for maximum flash performance.

The VTrak D5800FXD is not just for IT, it's also optimized for video application environments. With 10Gb Ethernet via SMB/NFS protocols, large file data ingestion, streaming, or processing between the storage appliance and its clients is seamless. Data can also be directly transferred over the SAN via iSCSI/Fibre Channel network for higher bandwidth performance and lower latency data transfers.

The VTrak D5800FXD supports Open Directory and Active Directory, making it fully integratable into your existing networking environment. It's designed to increase productivity in media professionals, enabling efficient processing of compressed video for best-in-class performance and reliability.

With the VTrak D5800FXD, you can "pay as you grow" from 64 Tera Bytes to Peta Bytes for long-term storage investment protection. This system is not only perfect for compressed video workflow environments but also ideal for low cost backup/archive applications. The VTrak D5800FXD series comes with high-availability dual controllers, hot-swappable modular disk array, and a 3-year 24x7 technical support.

Promise Technology VTrak D5800FXD Features

  • High-performance VTrak D5800FXD 4U 24-Bay FC/iSCSI/NAS Unified Storage System for data-driven businesses
  • Optimized for high bandwidth and low latency, perfect for mid-tier IT applications, surveillance, and backup
  • Scalable up to 15 JBODs or 512 drives with impressive 4K IOPs and sequential performance
  • High availability and resiliency features, including active-active dual controller and Predictive Data Migration (PDM)
  • Flash Cache accelerated system with option for read and write acceleration
  • Optimized for video application environments with support for Open Directory and Active Directory

Warranty Information

This product has a limited warranty of 36 months.

Product Documents

User Manual

Key Features

  • Experience fast performance with this unified storage system, perfect for demanding applications.
  • Ensure data security with advanced RAID levels and proactive functions for worry-free storage.
  • Utilize the 144TB storage capacity for extensive media libraries or large-scale business data.
  • Enjoy easy setup and management with web-based interfaces for efficient NAS administration.
  • Access your data remotely with secure protocols, ideal for collaborative projects and teams.
  • This NAS server provides a cost-effective storage solution with robust features and scalability.

What's in the box:

  • Promise Technology VTrak D5800FXD 4U 24-Bay FC/iSCSI/NAS Unified Storage System with 144TB (24x 6TB 7200rpm 12G SAS) HDD
  • Mounting Rails
  • DB9-to-RJ11 Serial Data Cable
  • Promise Technology 3 Year Limited Warranty
