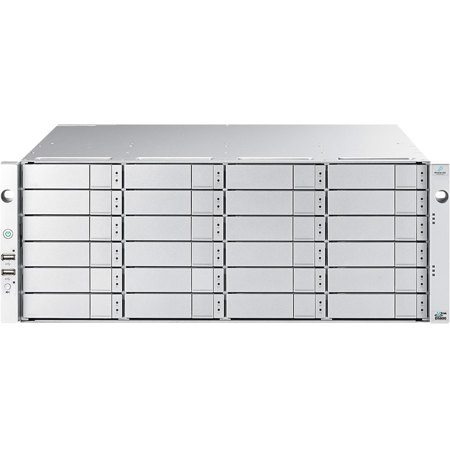

Promise Technology VTrak D5800XD 4U 24-Bay iSCSI/NAS Unified Storage System with 240TB (24x 10TB 7200rpm 12G SAS) HDD, RAID Dual HA Controllers with 4-Port 10GSFP+

SKU: PRD5800XDADD MFR: D5800XDADD
Earn VIP Reward Points

Key Features

  • Get lightning-fast performance with this unified storage system's dual HA controllers.
  • Ensure data security with advanced features like snapshots and thick/thin clones.
  • Enjoy reliable backup and seamless scalability with online capacity expansion up to 15 JBODs.
  • Simplify user management with LDAP, Microsoft AD, and OD integration for easy access.
  • Utilize this NAS system for file sharing with SMB/CIFS v2/v3 and NFS v3/v4 protocols.
  • Safeguard your data with RAID levels 0, 1, 5, 6, 10, 50, and 60 for optimal redundancy.
See More Product Details
Temporarily On Backorder?Expected Availability: 10/2025Request assistance or get notified
Free Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Promise Technology VTrak D5800XD Specifications

  • Form Factor

    4RU

  • Drives Capacity

    24 (LFF) + 4 (SFF)

  • Host Connect Interface

    iSCSI and NAS Storage Sub-System
    Dual HA Controller with 4-port 10GSFP+

  • Storage Expansion Ports

    2x 12Gb SAS Mini-SAS (SFF-8644) per controller

  • Management Ports

    2x RJ-45 1Gb Ethernet and 1 x RJ-11 Port per controller

  • Total Installed Capacity

    240TB (24x 10TB 7200rpm 12G SAS)

  • Expansion

    Online Capacity/Volume Expansion up-to 15 JBOD's

  • Max Pools/Volumes

    256 volumes per pool, Max 32 pools per System; Max 512 Snapshots / 128 Clones per volume

  • Data Services

    Snapshot
    Thin/Thick Clones
    Thick/Thin Volumes
    Read/Write Cache
    Online Capacity Expansion

  • Advanced Storage Functions

    Asymmetric LUN Unit Access (ALUA)
    LDAP for central user management
    Linux Permission, POSIX ACL,NT ACL
    Advanced Cache Mirroring over PCIe Gen3
    Microsoft AD, LDAP and OD

  • NAS Protocol

    SAN - FC Block with 16Gb FC or 10GbE iSCSI
    NAS - SMB/CIFS v2/v3, NFS v3/v4

  • RAID Levels

    0, 1, 5, 6, 10, 50, 60 RAID Stripe Support 64K, 128K, 256K, 512K and 1MB

  • Hot Spares

    Global or Dedicated

  • Background Scrub

    Media Patrol & Redundancy Check
    Background Synchronization
    Partial Rebuild
    Task Scheduler for Background Activities

  • Proactive/Predictive Functions

    Predictive Data Migration (PDM)
    Intelligent Bad Sector Remapping
    NVRAM Error Logging
    Drive Power Management (MAID)
    SMART Error Handling and Write Hole Table

  • Supported OS

    Windows Server 2008, 2012, 2016, macOS 10.x, RHEL 6.5 to 7.2, SLES 11, 11 SP4 and 12 SP1

  • Certifications

    VMware ESXi 6.5 & Citrix Server 7.3

  • Management Interfaces

    Web Based management using WEB, CLI, SSH, SNMP

  • Power Adapter

    Voltage: 100-240Vac Auto-Ranging
    Max Current: 12A at 100Vac; 4.5A at 240Vac

  • Power Efficiency

    >80% at 110V (>20% load), >80% at 240V (>20% load) Temperature Range, 80Plus Certified PSU

  • Temperature Range

    Operational: 5 to 35 deg. C (41 to 95 deg. F)
    Non-Operational: -40 to 60 deg. C (-40 to 140 deg. F)

  • Humidity

    Operational: 20% to 80%
    Non-Operational: Approx. 95% (Non-Condensing)

  • Noise Levels & Shock

    < 60dB, 25C, Operational: 5G, 11 ms Duration, Non-Operational: 30G, 11ms duration

  • Vibration

    Operational: 0.2G, 5 to 500Hz (sine wave), 0.41G, 3-10-200-500Hz (Random)
    Non-Operational: 1G, 5 to 500Hz (sine wave), 2.256G, 5-80-350-500Hz (Random)

  • Safety

    EMC Class-A: CE, FCC, VCCI, BSMI, RCM
    Safety: IEEE CB, cTUVus
    Environmental: RoHS2, GreenPC, WEEE

  • UPC Code

    704118136988

About Promise Technology VTrak D5800XD

Experience the power and reliability of the VTrak D5800XD 4U 24-Bay iSCSI/NAS Unified Storage System, a high-capacity, advanced, and sophisticated solution for your data storage needs. This robust system is designed to accelerate your data-driven business with its integrated combination of high-performance hardware, adaptive storage software, and flexible protocols.

The VTrak D5800XD is optimized for high bandwidth and low latency, making it an ideal storage solution for mid-tier IT applications, surveillance, backup, and running multiple mixed workloads. With the capacity to scale up to 15 JBODs or 512 drives, this NAS system delivers impressive performance metrics, including 4K IOPs of 42,334 and sequential performance of 3867MB/s reads and 3525MB/s writes for NAS, and 93,018 4K IOPs and 4214MB/s reads and 3376MB/s writes for iSCSI.

Experience high availability and resiliency with the VTrak D5800XD's redundant design for zero downtime. It features an Active-Active Dual Controller with ALUA support for access flexibility, background data integrity scrub with parity rebuild, and Predictive Data Migration (PDM) to minimize maintenance.

Unlock the power of Flash Cache with this system. The VTrak D5800XD storage system delivers impressive performance, boosting throughput and lowering latency. Users have the option to add Flash Cache for read and write acceleration, with PROMISE intelligent data caching automatically promoting hot data to cache in real time, maximizing the benefits of flash performance.

The VTrak D5800XD is not just for IT, it's also optimized for video application environments. It's designed for 10Gb Ethernet via SMB/NFS protocols for large file data ingesting, streaming, or processing between the storage appliance and its clients. Data can also be directly transferred between the appliance and clients over the SAN via iSCSI/Fibre Channel network, resulting in higher bandwidth performance and lower latency data transfers, perfect for Media & Entertainment, HPC applications, and other video-centric environments.

The VTrak D5800XD supports Open Directory and Active Directory, making it fully integratable into your existing networking environment. It's designed to enable media professionals to increase productivity by allowing efficient processing of compressed video, delivering best-in-class performance and reliability.

The VTrak D5800XD offers scalability, reliability, and cost-efficiency. With the "pay as you grow" model, you can expand from 64 Tera Bytes to Peta Bytes for long-term storage investment protection. It's not only perfect for compressed video workflow environments but also ideal for low-cost backup/archive applications. The VTrak D5800XD series comes with high-availability dual controllers, hot-swappable modular disk array, and a 3-year 24x7 technical support.

Promise Technology VTrak D5800XD Features

  • High-capacity, advanced, and sophisticated 4U 24-Bay iSCSI/NAS Unified Storage System
  • Optimized for high bandwidth and low latency, suitable for mid-tier IT applications, surveillance, and backup
  • Features Active-Active Dual Controller with ALUA support and Predictive Data Migration (PDM)
  • Enhanced with Flash Cache for read and write acceleration, boosting throughput and lowering latency
  • Optimized for 10Gb Ethernet via SMB/NFS protocols, perfect for large file data ingesting, streaming, or processing
  • Supports Open Directory and Active Directory, fully integratable into existing networking environments
  • Scalable from 64 Tera Bytes to Peta Bytes, offering long-term storage investment protection

Warranty Information

This product has a limited warranty of 36 months.

Product Documents

User Manual

Key Features

  • Get lightning-fast performance with this unified storage system's dual HA controllers.
  • Ensure data security with advanced features like snapshots and thick/thin clones.
  • Enjoy reliable backup and seamless scalability with online capacity expansion up to 15 JBODs.
  • Simplify user management with LDAP, Microsoft AD, and OD integration for easy access.
  • Utilize this NAS system for file sharing with SMB/CIFS v2/v3 and NFS v3/v4 protocols.
  • Safeguard your data with RAID levels 0, 1, 5, 6, 10, 50, and 60 for optimal redundancy.

What's in the box:

  • Promise Technology VTrak D5800XD 4U 24-Bay iSCSI/NAS Unified Storage System with 240TB (24x 10TB 7200rpm 12G SAS) HDD
  • Mounting Rails
  • DB9-to-RJ11 Serial Data Cable
  • Promise Technology 3 Year Limited Warranty
