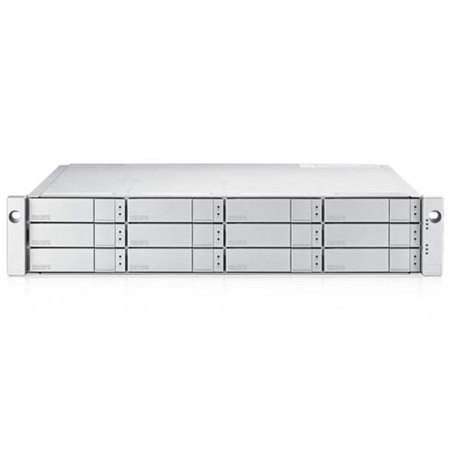

Promise Technology E5300 2U Dual Controller RAID Subsystem, 96TB (12x 8TB) HDD
See all Promise Technology items

Promise Technology VTrak E5300 2U 12-Bay 16G FC Dual Controller RAID Subsystem with 96TB (12x 8TB) HDD, RAID

SKU: PRE5300FDQS8
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

What is the total storage capacity of the VTrak E5300 2U 12-Bay 16G FC Dual Controller RAID Subsystem?

The VTrak E5300 2U 12-Bay 16G FC Dual Controller RAID Subsystem offers a high-capacity storage solution with a total of 96TB.

Does the VTrak E5300 support both SAS and SATA drives?

Yes, the VTrak E5300 supports both SAS and SATA drives simultaneously. It's compatible with leading SAS & SATA drives, HBAs, and RAID controllers.

What are the benefits of the dual active/active controllers with ALUA in the VTrak E5300?

The dual active/active controllers with ALUA in the VTrak E5300 provide optimal performance and access flexibility. This ensures that your data storage system functions efficiently and reliably.

Is the VTrak E5300 virtualization-ready?

Yes, the VTrak E5300 is virtualization-ready. It is certified with VMware vSphere, Citrix XenServer, Microsoft Hyper-V, Veeam, and DataCore SANsymphony. This allows for dynamic storage allocations, making the most effective use of physical storage layers.

What is the axle Starter software included with the VTrak E5300?

The axle Starter software included with the VTrak E5300 makes it radically simple to find, preview, and share media files right on your network. You can access all your media content from any browser, with no cloud required.

Reviews about this item

Review Summary

Promise Technology VTrak E5300 Specifications

  • Form Factor

    2U/12 Bay

  • Total Capacity

    96TB (12x 8TB HDD)

  • Drive Support

    Up to 12x 3.5" drives
    6/12GB SAS, 6GB SATA HDD and SSD
    Supports any mix of SAS and SATA drives simultaneously in the same enclosure

  • Number of Controllers

    Dual

  • External I/O Ports (per controller)

    Each SBB2.0 RAID Controller has four 16GB FC SFP ports for Host interface and two 12GB SAS standard Mini SAS HD ports (SFF-8644) for Storage Expansion, RJ45 1Gb Ethernet and RS232 for Management ports

  • RAID Levels

    0, 1 , 5, 6, 10, 50, 60

  • RAID Stripe Size Support

    64K, 128K, 256K, 512K and 1MB

  • Hot Spares

    Global or dedicated with revertible option

  • Max LUNs per subsystem

    1024

  • Max LUNs per system/array

    32

  • Advanced Storage Functions

    Advanced Cache Mirroring over PCIe Gen3
    Simple, drag-and-drop LUN Masking and Mapping
    Asymmetric LUN Unit Access (ALUA)
    Volume Copy
    PerfectFlash - Non-Disruptive Software Update
    I/O performance & power monitoring tools
    USB Service Log
    LDAP Support for central user management

  • Background Activities

    Media Patrol
    Background Synchronization
    Foreground Initialization
    Rebuild
    Redundancy Check
    Disk SMART Polling
    Online Capacity Expansion (OCE)
    RAID Level Migration (RLM)
    UPS Monitoring
    Feature rich task scheduler for background activities

  • PerfectRAID Functions

    Predictive Data Migration (PDM)
    Intelligent Bad Sector Remapping
    SMART Error Handling
    NVRAM Error Logging
    Disk Slot Power Control
    Read/Write Check Table
    Write Hole Table

  • GreenRAID Functions

    Four levels of advanced power management disk drive (MAID) support
    Efficient 80Plus Certified power supplies

  • Management Interfaces

    Web Based management using WebPAM PROe (Ethernet)
    Command Line Interface (CLI)
    Third Party Management Support via SNMP, CIM

  • Supported Operating Systems

    Windows Server 2008, 2012, HyperV, OS X 10.x, RHEL 6.5, 6.6, SLES 11, VMWare ESX v6.x

  • Voltage

    100-240V AC Auto-Ranging

  • Current (Maximum)

    9A at 100V AC; 4A at 240V AC

  • Power Conversion Efficiency

    >80% at 110V (>20% load), >80% at 240V (>20% load) Temperature Range

  • Temperature Range

    Operational: 5 to 40 deg. C (41 to 104 deg. F)
    Non-Operational: -40 to 60 deg. C (-40 to 140 deg. F)

  • Humidity

    Operational: 10% to 90% (Non-Condensing)
    Non-Operational: 5% to 95% (Non-Condensing)

  • Acoustic Noise Levels

    55dB (Typical), 65dB (Maximum)

  • Shock

    Operational: 5G, 11 ms duration, Non-Operational: 10G, 11ms duration

  • Vibration

    Operational: 0.3G, 5 to 500 Hz, Non-Operational: 1G, 5 to 500 Hz

  • Safety and Emission Certification

    EMC Class A: CE, FCC, VCCI, BSMI, RCM and KCM
    Safety: IEEE CB, UL/cUL and TUV

  • Environmental Standards

    RoHS, GreenPC, WEEE

  • Power Supply

    Efficient 80PLUS GOLD Certified redundant PSU

  • Dimensions (HxWxD)

    3.5 x 17.6 x 19.96" (8.89 x 44.70 x 50.70cm)

  • Weight

    24.8kg (54.67 lbs)

  • UPC Code

    704118111121

About Promise Technology VTrak E5300

Make your data storage more reliable and efficient with the VTrak E5300 2U 12-Bay 16G FC Dual Controller RAID Subsystem. This high-capacity, advanced storage solution offers an impressive 96TB capacity, accommodating a vast amount of data, making it an ideal choice for small to medium-sized businesses and enterprises.

This robust system is equipped with 12 hot-swappable 3.5" (LFF) drive bays in a 2U chassis, supporting both SAS and SATA drives simultaneously. It's compatible with leading SAS & SATA drives, HBAs, and RAID controllers, providing flexibility and convenience.

The VTrak E5300 stands out with its dual active/active controllers with ALUA, ensuring optimal performance and access flexibility. It features four 16Gb Fiber Channel ports and two 12Gb SAS ports per controller, connecting host and storage expansion, making it perfect for applications requiring substantial bandwidth.

This system can deliver an impressive 542,100 read IOPs and up to 111,686 write IOPs, with 12 Gigabyte read and 5.3 Gigabyte write sequential throughput. Its fully redundant components, including Active-Active controllers, power supplies, and cooling units, ensure optimal data availability, even during unforeseen circumstances.

The VTrak E5300 is also equipped with efficient power supplies that provide up to 90% improved power efficiency, reducing heat output, and lowering cooling costs. This feature significantly improves your total cost of ownership (TCO) by conserving power.

This system is also virtualization-ready, certified with VMware vSphere, Citrix XenServer, Microsoft Hyper-V, Veeam, and DataCore SANsymphony. This feature enables dynamic storage allocations, allowing physical layers of storage to be utilized most effectively.

The VTrak E5300 is more than just a storage system. It comes with axle Starter software, making it radically simple to find, preview, and share media files right on your network. You can access all your media content from any browser, with no cloud required.

Invest in the VTrak E5300 2U 12-Bay 16G FC Dual Controller RAID Subsystem for a high-performance, reliable, and efficient data storage solution.

Promise Technology VTrak E5300 Features

  • High-capacity, advanced storage solution with 96TB capacity for vast data storage
  • Supports both SAS and SATA drives simultaneously in 12 hot-swappable 3.5" drive bays
  • Robust dual active/active controllers with ALUA for optimal performance and access flexibility
  • Features four 16Gb Fiber Channel ports and two 12Gb SAS ports per controller for substantial bandwidth
  • Fully redundant components for optimal data availability, even during unforeseen circumstances
  • Certified with VMware vSphere, Citrix XenServer, Microsoft Hyper-V, Veeam, and DataCore SANsymphony for effective virtualization
  • Comes with axle Starter software for easy management of media files on your network

Warranty Information

This product has a limited warranty of 36 months.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Product Documents

User Manual

Key Features

  • Experience blazing-fast performance with this RAID subsystem, perfect for demanding applications.
  • Ensure data security with advanced RAID levels 0, 1, 5, 6, 10, 50, and 60 for robust protection.
  • Maximize uptime with dual controllers and redundant power supplies for reliable operation.
  • Expand your storage capacity easily with support for up to 12 SAS/SATA drives and online expansion.
  • Simplify management using WebPAM PROe, CLI, SNMP, and CIM for seamless integration.
  • Optimize power usage with GreenRAID functions and 80PLUS Gold certified power supplies.

What's in the box:

  • Promise Technology VTrak E5300 2U 12-Bay 16G FC Dual Controller RAID Subsystem with 96TB (12x 8TB) HDD
  • Sliding Rail Assembly
  • DB9-to-RJ11 Serial Data Cable
  • Screws
  • Flange Nuts
  • Quick Start Guide
  • Promise Technology 3 Year Limited Warranty
