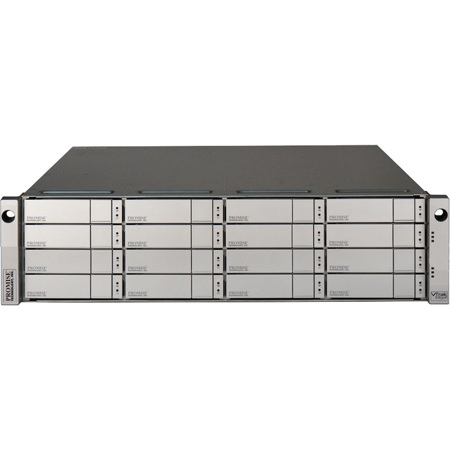

Promise Technology VTrak E5600 3U 16-Bay 16G FC Single Controller RAID Subsystem with 64TB (16x 4TB) HDD, RAID

SKU: PRE5600FSQS4

This item is no longer available.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Promise Technology VTrak E5600 Specifications

  • Form Factor

    3U/16 Bay

  • Total Capacity

    64TB (16x 4TB HDD)

  • Drive Support

    6/12GB SAS, 6GB SATA HDD and SSD
    Supports any mix of SAS and SATA drives simultaneously in the same enclosure

  • Number of Controllers

    Single

  • External I/O Ports (per controller)

    Each SBB2.0 RAID Controller has four 16GB FC SFP ports for Host interface and two 12GB SAS standard Mini SAS HD ports (SFF-8644) for Storage Expansion, RJ45 1Gb Ethernet and RS232 for Management ports

  • RAID Levels

    0, 1 , 5, 6, 10, 50, 60

  • RAID Stripe Size Support

    64K, 128K, 256K, 512K and 1MB

  • Hot Spares

    Global or dedicated with revertible option

  • Max LUNs per subsystem

    1024

  • Max LUNs per system/array

    32

  • Advanced Storage Functions

    Advanced Cache Mirroring over PCIe Gen3
    Simple, drag-and-drop LUN Masking and Mapping
    Asymmetric LUN Unit Access (ALUA)
    Volume Copy
    PerfectFlash - Non-Disruptive Software Update
    I/O performance & power monitoring tools
    USB Service Log
    LDAP Support for central user management

  • Background Activities

    Media Patrol
    Background Synchronization
    Foreground Initialization
    Rebuild
    Redundancy Check
    Disk SMART Polling
    Online Capacity Expansion (OCE)
    RAID Level Migration (RLM)
    UPS Monitoring
    Feature rich task scheduler for background activities

  • PerfectRAID Functions

    Predictive Data Migration (PDM)
    Intelligent Bad Sector Remapping
    SMART Error Handling
    NVRAM Error Logging
    Disk Slot Power Control
    Read/Write Check Table
    Write Hole Table

  • GreenRAID Functions

    Four levels of advanced power management disk drive (MAID) support
    Efficient 80Plus Certified power supplies

  • Management Interfaces

    Web Based management using WebPAM PROe (Ethernet)
    Command Line Interface (CLI)
    Third Party Management Support via SNMP, CIM

  • Supported Operating Systems

    Windows Server 2008, 2012, HyperV, OS X 10.x, RHEL 6.5, 6.6, SLES 11, VMWare ESX v6.x

  • Voltage

    100-240V AC Auto-Ranging

  • Current (Maximum)

    9A at 100V AC; 4A at 240V AC

  • Power Conversion Efficiency

    >80% at 110V (>20% load), >80% at 240V (>20% load) Temperature Range

  • Temperature Range

    Operational: 5 to 40 deg. C (41 to 104 deg. F)
    Non-Operational: -40 to 60 deg. C (-40 to 140 deg. F)

  • Humidity

    Operational: 10% to 90% (Non-Condensing)
    Non-Operational: 5% to 95% (Non-Condensing)

  • Acoustic Noise Levels

    55dB (Typical), 65dB (Maximum)

  • Shock

    Operational: 5G, 11 ms duration, Non-Operational: 10G, 11ms duration

  • Vibration

    Operational: 0.3G, 5 to 500 Hz, Non-Operational: 1G, 5 to 500 Hz

  • Safety and Emission Certification

    EMC Class A: CE, FCC, VCCI, BSMI, RCM and KC
    Safety: IEEE CB, UL/cUL and TUV

  • Environmental Standards

    RoHS, GreenPC, WEEE

  • Power Supply

    Efficient 80PLUS GOLD Certified redundant PSU

  • Dimensions (HxWxD)

    5.2 x 17.6 x 19.96" (13.21 x 44.70 x 50.70cm)

  • Weight

    38.3kg (84.44 lbs)

  • UPC Code

    704118112593

About Promise Technology VTrak E5600

Be empowered by the VTrak E5600 3U 16-Bay 16G FC Single Controller RAID Subsystem, a high-performance, high-availability storage solution designed to meet the demands of today's dynamic business environments. This advanced enterprise-level system offers a robust Fiber Channel to SAS storage solution, boasting four 16GB Fiber Channel ports and two 12GB SAS ports per controller for seamless host and storage expansion.

The VTrak E5600 is engineered for applications that demand substantial bandwidth. With an impressive output of 542,100 read IOPs and up to 111,686 write IOPs, it delivers 12 Gigabyte read and 5.3 Gigabyte write sequential throughput. This powerhouse storage system is equipped with fully redundant components, including Active-Active controllers, power supplies, and cooling units, ensuring optimal data availability even in unexpected circumstances.

This enterprise-level storage system features 16 hot-swappable 3.5" (LFF) drive bays in a compact 3U chassis. It supports both SAS and SATA drives simultaneously, offering compatibility with leading SAS & SATA drives, HBAs, and RAID controllers. The VTrak E5600 is designed to accommodate businesses of all sizes, delivering high-performance SAS solutions with advanced reliability and functionality.

The VTrak E5600 is also equipped with the axle Starter software, simplifying the management of Rich Media projects from any computer on your network. This innovative software allows you to find, preview, and share media files directly from your network, accessible from any browser without the need for cloud storage. The axle Starter also features a plug-in for Adobe Premiere Pro CC, enhancing your media project management capabilities.

Designed with IT/Data Centers in mind, the VTrak E5600 is fully compatible with 6 Gb/s SAS/SATA devices, allowing users to deploy 6 Gb/s and 12 Gb/s SAS/SATA HDDs and SSDs. Its efficient power supplies provide up to 90% improved power efficiency, reducing heat output and cooling costs, and ultimately improving your Total Cost of Ownership (TCO). The E5600's flash arrays optimize speed for key enterprise applications that require high-speed transfer rates and reduced latency.

The VTrak E5600 is also virtualization-ready, certified with VMware vSphere, Citrix XenServer, Microsoft Hyper-V, Veeam, and DataCore SANsymphony. This feature enables dynamic storage allocations, allowing physical layers of storage to be utilized most effectively. As virtual machines continue to proliferate in today's virtualized IT environments, the 16Gb Fiber Channel performance of the VTrak E5600 delivers the faster bandwidth needed to support growing infrastructures.

Promise Technology VTrak E5600 Features

  • High-performance Fiber Channel to SAS storage solution with advanced enterprise-level reliability
  • Four 16GB Fiber Channel ports and two 12GB SAS ports per controller for seamless host and storage expansion
  • Supports simultaneous use of SAS and SATA drives, compatible with leading SAS & SATA drives, HBAs, and RAID controllers
  • Features axle Starter software for easy management of Rich Media projects from any networked computer
  • Fully compatible with 6 Gb/s SAS/SATA devices, enabling deployment of 6 Gb/s and 12 Gb/s SAS/SATA HDDs and SSDs
  • Virtualization-ready, certified with VMware vSphere, Citrix XenServer, Microsoft Hyper-V, Veeam, and DataCore SANsymphony

Warranty Information

This product has a limited warranty of 36 months.

Product Documents

User Manual

Key Features

  • Experience robust data security with advanced RAID levels (0, 1, 5, 6, 10, 50, 60).
  • Ensure seamless scalability; expand your storage as your business needs evolve.
  • Enjoy fast access speed with 16GB FC ports, optimizing data retrieval and transfer rates.
  • Utilize the 64TB storage capacity for extensive data archiving and large file management.
  • Benefit from data redundancy with hot spares, ensuring continuous operation and protection.
  • Simplify management with an intuitive web interface for easy setup and monitoring.

What's in the box:

  • Promise Technology VTrak E5600 3U 16-Bay 16G FC Single Controller RAID Subsystem with 64TB (16x 4TB) HDD
  • Sliding Rail Assembly
  • DB9-to-RJ11 Serial Data Cable
  • Screws
  • Flange Nuts
  • Quick Start Guide
  • Promise Technology 3 Year Limited Warranty
