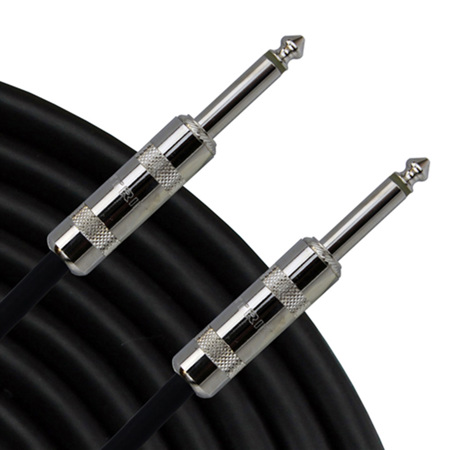

Pro Co Sound RapcoHorizon G1-1 1' Extension Guitar Instrument Cable, Black
See all Pro Co Sound items

Pro Co Sound G1-1 1' Extension Series 24 AWG Guitar Instrument Cable with 2x 1/4" Connectors, Black

SKU: PRG11EP

This item is no longer available.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Pro Co Sound G1-1 Specifications

  • Cable Type

    INST1

  • Connectors

    2 x 1/4" nickel-plated connector

  • Conductor Gauge

    24

  • Conductor

    AWG Size & Stranding: 24 AWG 19 strands 36 AWG
    Material: Bare annealed copper

  • Insulation

    Material: Polyethylene
    Wall Thickness: 0.05" (1.27 mm) nominal
    Diameter: 0.12 +/-0.002" (3.05 +/-0.050 mm)

  • Shield

    Composite conductive vinyl and copper serve
    Inner Layer:
    Material: Semi-conductive PVC
    Wall Thickness: 0.01" (0.25 mm) nominal
    Diameter: 0.14" (3.56 mm) nominal

    Outer Layer:
    Material: Bare annealed copper serve
    Coverage: 70% nominal

  • Jacket

    Material: Matte PVC
    Wall Thickness: 0.05" (1.27 mm) nominal
    Diameter: 0.24 +/-0.005" (6.10 +/- 0.127 mm)

  • Outer Diameter

    0.24" (6.09mm)

  • Capacitance

    25 pF/ft at 1 kHz

  • Impedance

    Characteristic: 60 Ohms (nominal) at 1 MHz

  • DC Resistance

    23 Ohms/1,000.0' (304.8m) at 68 deg. F (20 deg. C)

  • Length

    1.0' (0.30m)

About Pro Co Sound G1-1

The Pro Co Sound RapcoHorizon G1-1 1' Extension Series Black Guitar Instrument Cable features 2 right-angle connectors. This cable utilizes an ultra flexible matte PVC jacket material for durability. This cable is terminated with high-quality, nickel-plated 1/4" connectors, which offer years of good performance and value. This cable is individually tested for performance and quality.

Pro Co Sound G1-1 Features

  • Hi-Z unbalanced instrument cable for interfacing instrument level gear with amplifiers (guitars, bass guitars, keyboards, and other unbalanced hi-Z signal sources)
  • Male 1/4" connector to female 1/4" connector allows for extension of any standard 1/4" guitar or instrument cable
  • Utilizing a serve shield for quiet operation, yielding maximum flexibility
  • Low capacitance cable offers an expanded frequency response
  • Matte jacket PVC material is very flexible yet durable with very low memory
  • Pure copper conductor and shield

Warranty Information

This product has a limited lifetime warranty.

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Get pristine audio with this Pro Co Sound guitar instrument cable, ensuring signal clarity.
  • Extend your reach with this 1-foot extension cable, perfect for stage or studio use.
  • Enjoy durable performance with a robust 24 AWG guitar cable, built to last for years.
  • Experience noise reduction thanks to the composite conductive vinyl and copper shield.
  • Achieve optimal signal transfer with nickel-plated 1/4" connectors on this audio cable.
  • Rely on this Pro Co guitar cable for consistent, high-quality sound in any performance.

What's in the box:

  • Pro Co Sound RapcoHorizon G1-1 1' Extension Series Guitar Instrument Cable
  • Pro Co Sound RapcoHorizon Lifetime Limited Warranty
