INST1
2 x 1/4" nickel-plated connector
24
AWG Size & Stranding: 24 AWG 19 strands 36 AWG
Material: Bare annealed copper
Material: Polyethylene
Wall Thickness: 0.05" (1.27 mm) nominal
Diameter: 0.12 +/-0.002" (3.05 +/-0.050 mm)
Composite conductive vinyl and copper serve
Inner Layer:
Material: Semi-conductive PVC
Wall Thickness: 0.01" (0.25 mm) nominal
Diameter: 0.14" (3.56 mm) nominal
Outer Layer:
Material: Bare annealed copper serve
Coverage: 70% nominal
Material: Matte PVC
Wall Thickness: 0.05" (1.27 mm) nominal
Diameter: 0.24 +/-0.005" (6.10 +/- 0.127 mm)
0.24" (6.09mm)
25 pF/ft at 1 kHz
Characteristic: 60 Ohms (nominal) at 1 MHz
23 Ohms/1,000.0' (304.8m) at 68 deg. F (20 deg. C)
30' (9.14m)
765811260790

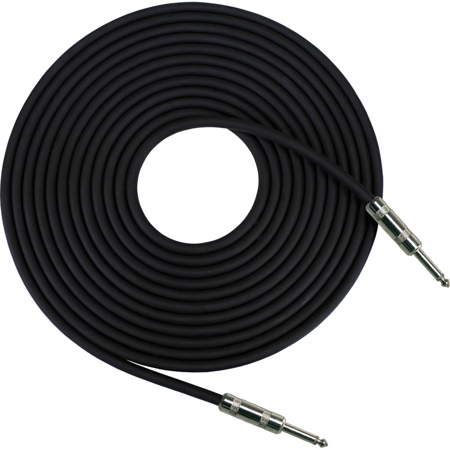

Take your guitar setup to the next level with the Pro Co Sound RapcoHorizon G1-30 30' Black Guitar Instrument Cable, meticulously designed for the discerning musician seeking reliable, high-quality sound transmission. This robust cable extends a generous 30 feet, providing ample length for freedom of movement on stage or in the studio.
Crafted with a 24 AWG (American Wire Gauge) core, the G1-30 ensures a clear, strong signal path between your instrument and amplifier or audio interface. The ultra-flexible matte PVC jacket not only enhances the cable's durability but also minimizes handling noise, ensuring that your performance is the sole focus.
The G1-30 is equipped with two right-angle, nickel-plated 1/4" connectors, which are engineered for consistent, high-quality sound and efficient signal transfer. The right-angle design is particularly beneficial for connecting to guitars with side-mounted jacks, reducing strain on the cable and preventing accidental disconnections.
Each connector is carefully soldered to the cable's core, providing a secure connection that stands up to the rigors of regular use. The nickel plating on the connectors offers a balance of conductivity and corrosion resistance, contributing to the cable's longevity and maintaining the integrity of your tone.
Before reaching your hands, each G1-30 cable undergoes individual testing for performance and quality, ensuring that it meets the high standards expected by professional musicians. Whether you're practicing at home, recording in the studio, or performing live, the Pro Co Sound RapcoHorizon G1-30 Guitar Instrument Cable is a reliable choice for transmitting your instrument's true sound with clarity and precision.
