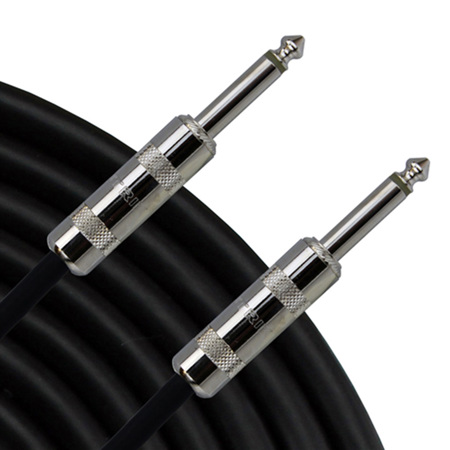

Pro Co Sound RapcoHorizon G1-3 3' Extension Guitar Instrument Cable, Black
See all Pro Co Sound items

Pro Co Sound G1-3 3' Extension Series 24 AWG Guitar Instrument Cable with 2x 1/4" Connectors, Black

SKU: PRG13EP
Be the first to review this item

This item is no longer available.

Recommended Alternatives

Pro Co Sound EG5: Picture 1 regular
Pro Co Sound Excellines EG-5 5' 1/4" Phone to 1/4" Phone Male Instrument Cable
$11.99
Pro Co Sound BP-15: Picture 1 regular
Proco 15' 1/4" TRS-M to 1/4" TRS-M Cable
$40.36$15.00
Pro Co Sound Cloth-1: Picture 1 regular
Pro Co Sound RapcoHorizon Cloth-1 1' Concert 20 AWG Instrument Cable
$22.54
Pro Co Sound Cloth-10: Picture 1 regular
Pro Co Sound RapcoHorizon Cloth-10 10' Concert 20 AWG Instrument Cable
$32.68
See More Recommendations
Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

What type of instruments can I use with the G1-3 3' Extension Series Guitar Instrument Cable?

The G1-3 3' Extension Series Guitar Instrument Cable is designed for use with any instrument or equipment that has a 1/4" input or output jack, such as electric guitars, bass guitars, keyboards, and some audio interfaces.

Can the right-angle connectors on this cable fit into tight spaces on my pedalboard?

Yes, the right-angle connectors are specifically designed to fit into tight spaces, making them ideal for pedalboards and other setups where space is limited.

Is the nickel plating on the connectors durable for frequent plugging and unplugging?

Yes, the nickel-plated connectors are built to withstand frequent use, providing a durable and reliable connection for your musical endeavors.

Will the PVC jacket material affect the cable's flexibility?

No, the matte PVC jacket has been chosen for its ultra-flexible properties, ensuring that the cable remains pliable and easy to manage during use.

How does the individual testing of these cables benefit the user?

Individual testing guarantees that each cable meets high performance and quality standards, providing users with assurance that they will receive a dependable and high-fidelity product.

Reviews about this item

Review Summary

Pro Co Sound G1-3 Specifications

  • Cable Type

    INST1

  • Connectors

    2 x 1/4" nickel-plated connector

  • Conductor Gauge

    24

  • Conductor

    AWG Size & Stranding: 24 AWG 19 strands 36 AWG
    Material: Bare annealed copper

  • Insulation

    Material: Polyethylene
    Wall Thickness: 0.05" (1.27 mm) nominal
    Diameter: 0.12 +/-0.002" (3.05 +/-0.050 mm)

  • Shield

    Composite conductive vinyl and copper serve
    Inner Layer:
    Material: Semi-conductive PVC
    Wall Thickness: 0.01" (0.25 mm) nominal
    Diameter: 0.14" (3.56 mm) nominal

    Outer Layer:
    Material: Bare annealed copper serve
    Coverage: 70% nominal

  • Jacket

    Material: Matte PVC
    Wall Thickness: 0.05" (1.27 mm) nominal
    Diameter: 0.24 +/-0.005" (6.10 +/- 0.127 mm)

  • Outer Diameter

    0.24" (6.09mm)

  • Capacitance

    25 pF/ft at 1 kHz

  • Impedance

    Characteristic: 60 Ohms (nominal) at 1 MHz

  • DC Resistance

    23 Ohms/1,000.0' (304.8m) at 68 deg. F (20 deg. C)

  • Length

    3' (0.91m)

About Pro Co Sound G1-3

The Pro Co Sound RapcoHorizon G1-3 3' Extension Series Black Guitar Instrument Cable is a premium choice for musicians seeking superior sound quality and durability. This high-performance cable features two right-angle connectors, designed to ensure a secure and stable connection to your musical instruments. Crafted with an ultra-flexible matte PVC jacket, this cable offers exceptional durability, resisting wear and tear even in the most demanding performance environments. The cable is equipped with high-quality, nickel-plated 1/4" connectors, providing reliable performance and long-lasting value. Each G1-3 3' Extension Series Guitar Instrument Cable is individually tested to guarantee optimal performance and quality, ensuring it meets the high standards of both professional and amateur musicians. This black guitar instrument cable is not only a practical choice but also adds a sleek, professional aesthetic to your music setup.

Pro Co Sound G1-3 Features

  • Hi-Z unbalanced instrument cable for interfacing instrument level gear with amplifiers (guitars, bass guitars, keyboards, and other unbalanced hi-Z signal sources)
  • Male 1/4" connector to female 1/4" connector allows for extension of any standard 1/4" guitar or instrument cable
  • Utilizing a serve shield for quiet operation, yielding maximum flexibility
  • Low capacitance cable offers an expanded frequency response
  • Matte jacket PVC material is very flexible yet durable with very low memory
  • Pure copper conductor and shield

Warranty Information

This product has a limited lifetime warranty.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Experience pristine audio clarity with this Pro Co Sound instrument cable, designed for optimal signal transfer.
  • Enjoy a durable build with a rugged PVC jacket, perfect for stage and studio use; this guitar cable is built to last.
  • Minimize unwanted noise and interference thanks to the high-quality shielding in this Pro Co Sound audio cable.
  • Get superior signal clarity with 24 AWG bare annealed copper conductors in this instrument cable.
  • This 3' extension cable offers flexible connectivity with 1/4" nickel-plated connectors for reliable performance.
  • Achieve consistent, high-quality sound; this low noise instrument cable maintains a 60 Ohms impedance.

What's in the box:

  • Pro Co Sound RapcoHorizon G1-3 3' Extension Series Guitar Instrument Cable
  • Pro Co Sound RapcoHorizon Lifetime Limited Warranty
