INST1
2 x 1/4" connector with an added shrink strain over the barrel of each connector
24
AWG Size & Stranding: 24 AWG 19 strands 36 AWG
Material: Bare annealed copper
Material: Polyethylene
Wall Thickness: 0.05" (1.27 mm) nominal
Diameter: 0.12 +/-0.002" (3.05 +/-0.050 mm)
Composite conductive vinyl and copper serve
Inner Layer:
Material: Semi-conductive PVC
Wall Thickness: 0.01" (0.25 mm) nominal
Diameter: 0.14" (3.56 mm) nominal
Outer Layer:
Material: Bare annealed copper serve
Coverage: 70% nominal
Material: Matte PVC
Wall Thickness: 0.05" (1.27 mm) nominal
Diameter: 0.24 +/-0.005" (6.10 +/- 0.127 mm)
0.24" (6.09mm)
25 pF/ft at 1 kHz
Characteristic: 60 Ohms (nominal) at 1 MHz
23 Ohms/1,000.0' (304.8m) at 68 deg. F (20 deg. C)
2' (0.60m)

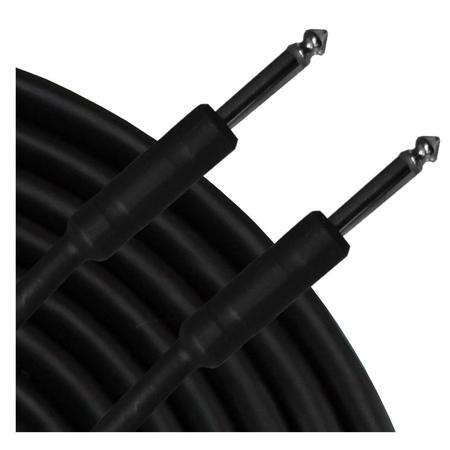

The Pro Co Sound RapcoHorizon G1S-2 2' Black Guitar Instrument Cable features two 1/4" connectors with an added shrink strain relief that utilizes a heat shrink process over the barrel of each connector. This cable utilizes an ultra flexible matte PVC jacket material for durability. This cable is terminated with high-quality, nickel-plated 1/4" connectors, which offer years of good performance and value. This cable is individually tested for performance and quality.
