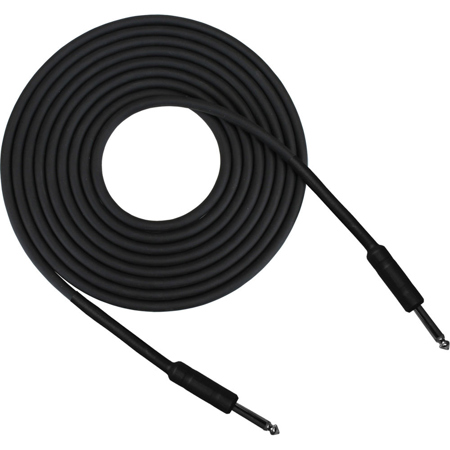

Pro Co Sound RapcoHorizon G1S-20 20' Guitar Instrument Cable, Black
Pro Co Sound G1S-20: Picture 1 thumbnail
Pro Co Sound G1S-20: Picture 2 thumbnail
See all Pro Co Sound items
62% Off

Pro Co Sound G1S-20 20' 24 AWG Guitar Instrument Cable with 2x 1/4" Shrink Over Barrel Connectors, Black

SKU: PRG1S20 MFR: G1S-20
Be the first to review this itemAsk a Question
$12.06
$31.77
Save: $19.71 (62%)
Earn VIP Reward Points

Key Features

  • Experience superior signal clarity with this Pro Co Sound 20' instrument cable.
  • Enjoy a durable build with a 24 AWG conductor, designed for long-lasting performance.
  • Minimize unwanted noise in your audio setup using the cable's effective shielding.
  • Get reliable connections with high-quality 1/4" connectors and added shrink strain relief.
  • Perfect for guitars and instruments, this cable ensures optimal audio signal transfer.
  • The 20-foot cable length provides flexibility on stage or in the studio for musicians.
See More Product Details
Ships from Manufacturer?
Calculate Shipping

See Options

1
Add to ListGet Sale Alert

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Pro Co Sound G1S-20 Specifications

  • Cable Type

    INST1

  • Connectors

    2 x 1/4" connector with an added shrink strain over the barrel of each connector

  • Conductor Gauge

    24

  • Conductor

    AWG Size & Stranding: 24 AWG 19 strands 36 AWG
    Material: Bare annealed copper

  • Insulation

    Material: Polyethylene
    Wall Thickness: 0.05" (1.27 mm) nominal
    Diameter: 0.12 +/-0.002" (3.05 +/-0.050 mm)

  • Shield

    Composite conductive vinyl and copper serve
    Inner Layer:
    Material: Semi-conductive PVC
    Wall Thickness: 0.01" (0.25 mm) nominal
    Diameter: 0.14" (3.56 mm) nominal

    Outer Layer:
    Material: Bare annealed copper serve
    Coverage: 70% nominal

  • Jacket

    Material: Matte PVC
    Wall Thickness: 0.05" (1.27 mm) nominal
    Diameter: 0.24 +/-0.005" (6.10 +/- 0.127 mm)

  • Outer Diameter

    0.24" (6.09mm)

  • Capacitance

    25 pF/ft at 1 kHz

  • Impedance

    Characteristic: 60 Ohms (nominal) at 1 MHz

  • DC Resistance

    23 Ohms/1,000.0' (304.8m) at 68 deg. F (20 deg. C)

  • Length

    20' (6.09m)

About Pro Co Sound G1S-20

You can rely on the Pro Co Sound RapcoHorizon G1S-20 20' Black Guitar Instrument Cable for superior sound transmission and long-lasting durability. This high-quality instrument cable is designed with two robust 1/4" connectors, each enhanced with a shrink strain relief. This unique feature employs a heat shrink process over the barrel of each connector, ensuring optimal strain relief and extending the lifespan of the cable.

Constructed with an ultra-flexible matte PVC jacket material, this 24 AWG guitar cable is built to withstand the rigors of regular use while maintaining its flexibility. The high-quality, nickel-plated 1/4" connectors are designed to deliver excellent performance over the years, making this cable a valuable addition to your music equipment.

Each Pro Co Sound RapcoHorizon G1S-20 20' Black Guitar Instrument Cable is individually tested to guarantee top-tier performance and quality. Whether you're a professional musician or an audio enthusiast, this guitar instrument cable is engineered to deliver clear, uninterrupted sound every time you plug in.

Pro Co Sound G1S-20 Features

  • Hi-Z unbalanced instrument cable for interfacing instrument level gear with amplifiers (guitars, bass guitars, keyboards, and other unbalanced hi-Z signal sources)
  • Utilizing a serve shield for quiet operation, yielding maximum flexibility
  • Low capacitance cable offers an expanded frequency response
  • Matte jacket PVC material is very flexible yet durable with very low memory
  • Pure copper conductor and shield
  • Features an added shrink strain relief utilizing a heat shrink process over the barrel of each connector

Warranty Information

This product has a limited lifetime warranty.

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Experience superior signal clarity with this Pro Co Sound 20' instrument cable.
  • Enjoy a durable build with a 24 AWG conductor, designed for long-lasting performance.
  • Minimize unwanted noise in your audio setup using the cable's effective shielding.
  • Get reliable connections with high-quality 1/4" connectors and added shrink strain relief.
  • Perfect for guitars and instruments, this cable ensures optimal audio signal transfer.
  • The 20-foot cable length provides flexibility on stage or in the studio for musicians.

What's in the box:

  • Pro Co Sound RapcoHorizon G1S-20 20' Guitar Instrument Cable
  • Pro Co Sound RapcoHorizon Lifetime Limited Warranty
